LED panel REFIDO TW DALI-2 / 62.5 X 62.5 CM surface-mounted version, tunable white, UGR < 19, switchable

High-Quality REFIDO LED Surface-Mounted Panel from Brumberg

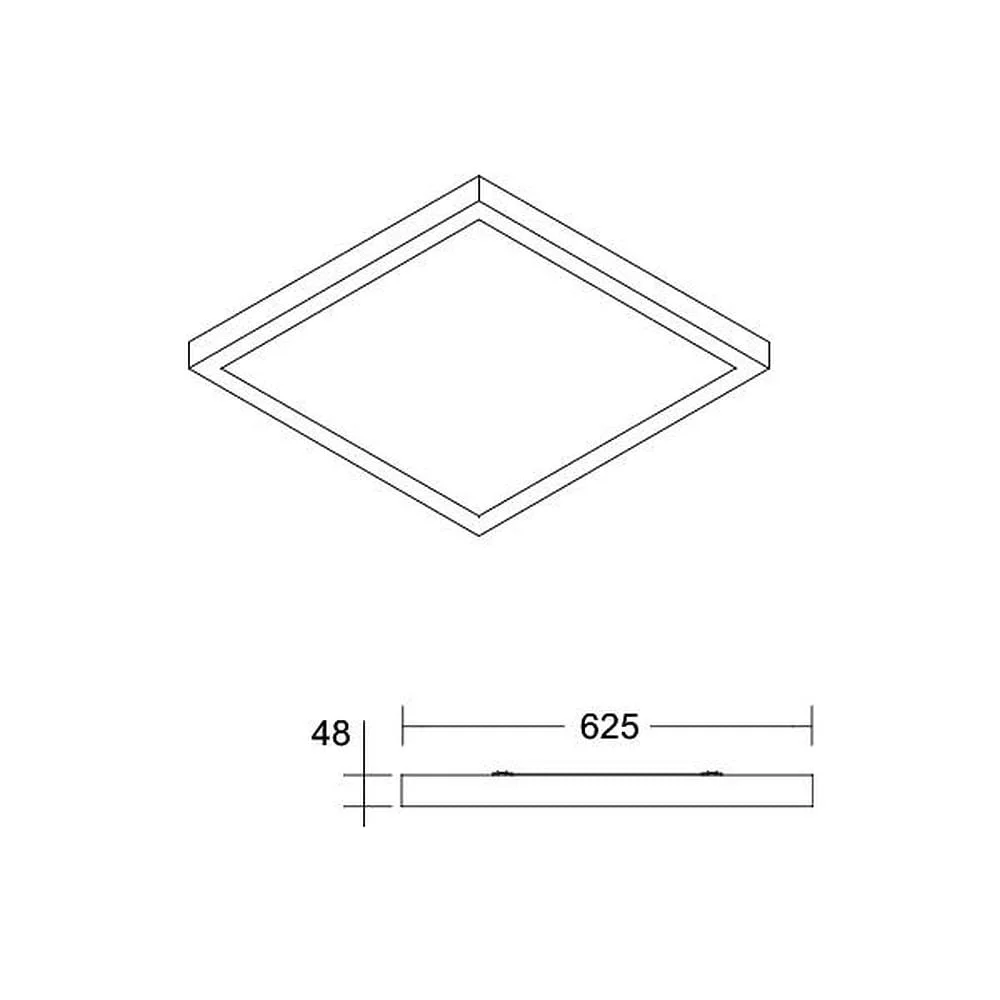

The REFIDO LED surface-mounted panel impresses with its modern technology and high-quality workmanship. With dimensions of 62.5 x 62.5 cm and a slim design of only 4.8 cm depth, it discreetly integrates into any room design. The housing is made of robust aluminum, while the micro-prismatic cover made of polymethyl methacrylate (PMMA) ensures even and glare-free light distribution. The white color of the panel emphasizes its timeless and professional appearance.

Flexible Light Color and High Efficiency

The LED panel offers continuously adjustable light color from extra warm white (2700K) to cool white (6500K), which can be controlled via an external DALI-2 or DALI DT8 controller. This tunable white function allows individual adjustment of the light to different requirements and moods. With a power consumption of 31 watts and an impressive luminous efficacy of 134 lumens per watt, the product convinces with its energy efficiency. The maximum luminous flux is approximately 4150 lumens, providing bright and pleasant illumination.

Durability and Reliability

The REFIDO LED panel is designed for a long service life and achieves an average lamp life of up to 78,000 hours (L80/B10) at 25°C. This means the light still delivers at least 80% of its original brightness even after many hours of operation. Additionally, the panel is certified according to the glow wire test IEC 60695-2-12 at 650 °C, guaranteeing high safety and quality. An integrated LED driver allows direct connection to mains voltage and enables operation with alternating or direct current in the range of 176 to 276 volts.

Comfortable Dimming and Protection Class

The panel is DALI and DALI-2 compatible, supporting comfortable and precise dimming, which can be ideally adjusted to different lighting situations. With a UGR value below 19, the light is especially glare-free and thus perfectly suited for workplaces with computer screens, as it protects the eyes and creates a pleasant working atmosphere. Protection class 1 ensures safe installation and use, while the IP20 protection rating protects the device against contact and solid foreign objects.

Versatile Applications and Accessories

The REFIDO LED surface-mounted panel is available as a switchable version, a DALI-dimmable variant, or with tunable white function. It is ideal for office and work areas that require flexible and efficient lighting. The scope of delivery includes an LED driver; connection cables and controllers are available separately. The product is eligible for BEG funding and can be operated with up to 73 devices on a C16 circuit breaker, enabling simple and cost-effective installation.
