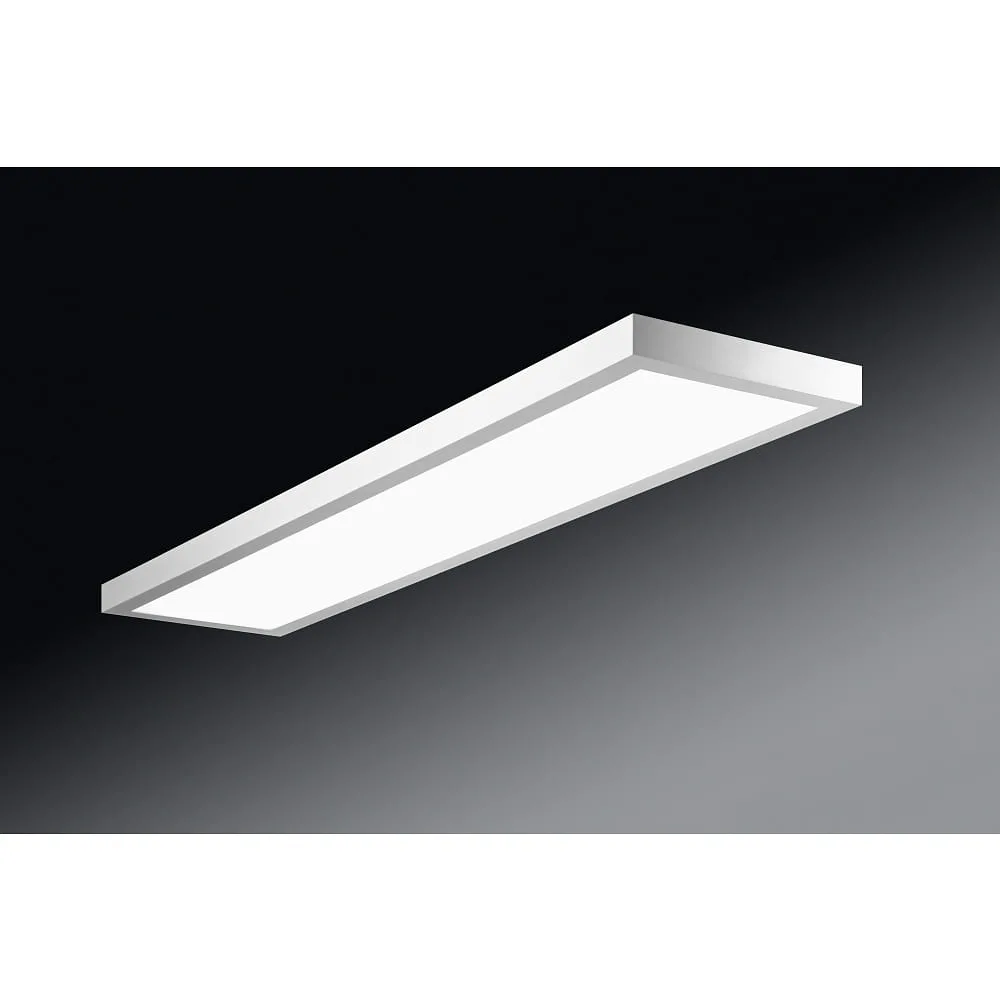

LED panel REFIDO TW DALI-2 / 152.5 X 32.5 CM surface-mounted version, tunable white, UGR < 19, switchable

Versatile LED Surface-Mounted Panel for Individual Lighting Needs

The REFIDO LED surface-mounted panel from Brumberg impresses with its flexible and innovative Tunable White technology, which allows continuous adjustment of the light color from extra warm white (2700K) to cool white (6500K). This makes it possible to optimally adapt the lighting to different requirements and moods. With a size of 152.5 x 32.5 cm, the panel offers a generous surface area for uniform and pleasant illumination.

Excellent Light Quality and Efficiency

With a high color rendering index of over 80 Ra, the REFIDO LED panel ensures natural color reproduction that makes the viewing experience comfortable. The luminous efficacy ranges impressively from 131 to 137 lumens per watt, ensuring energy-efficient use. The luminous flux varies between 6400 and 6700 lumens depending on the color temperature, providing bright and clear lighting. Thanks to the low glare value UGR <19, the panel is especially suitable for screen workstations.

Durability and Robust Construction

The LED panel features a long average lifespan of up to 78,000 hours, significantly reducing maintenance and replacement costs. The housing is made of robust aluminum, and the cover is made of microprismatic polycarbonate, ensuring even light distribution and protection of the luminaire. Protection class 1 and IP20 certification guarantee safe use under normal conditions.

Easy Installation and Modern Control

The REFIDO LED panel is equipped with an integrated LED driver that allows direct connection to mains voltage (176-276V). The DALI dimmability including DT8 technology enables comfortable control of brightness and light color via external controllers. Additionally, the panel is suitable for emergency lighting operation when a central external battery is connected, providing extra safety.

Optimal Technical Features for Professional Applications

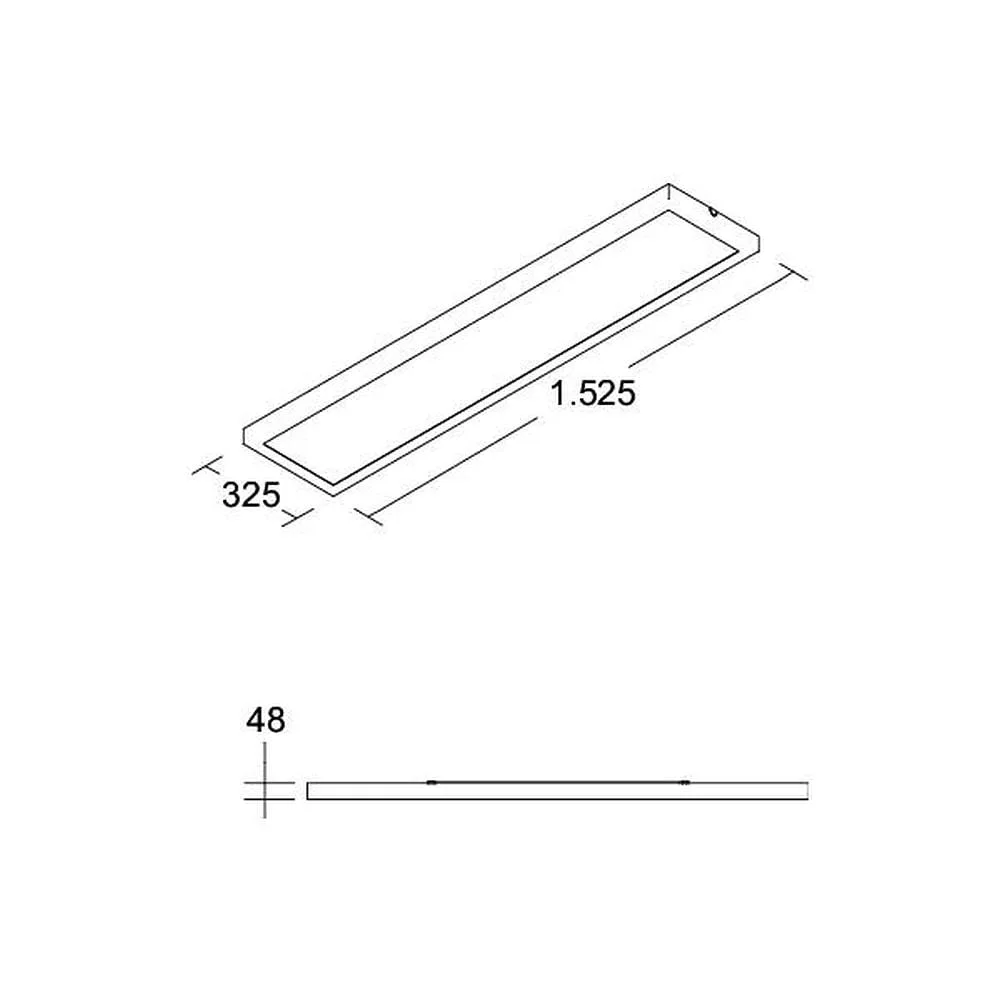

The product is designed for an operating voltage of 176 to 276 volts, suitable for both alternating and direct current. The mains connection terminal allows easy wiring. With a weight of 4.5 kg and dimensions of 152.5 x 32.5 x 4.8 cm, the panel is compact and manageable. It meets high safety standards, such as the glow wire test according to IEC 60695-2-12 at 650°C, and is available in various versions and sizes to meet individual requirements.
