LED panel REFIDO TW DALI-2 / 122.5 X 32.5 CM surface-mounted version, tunable white, UGR < 19, switchable

High-quality LED Surface-mounted Panel with Variable Light Color

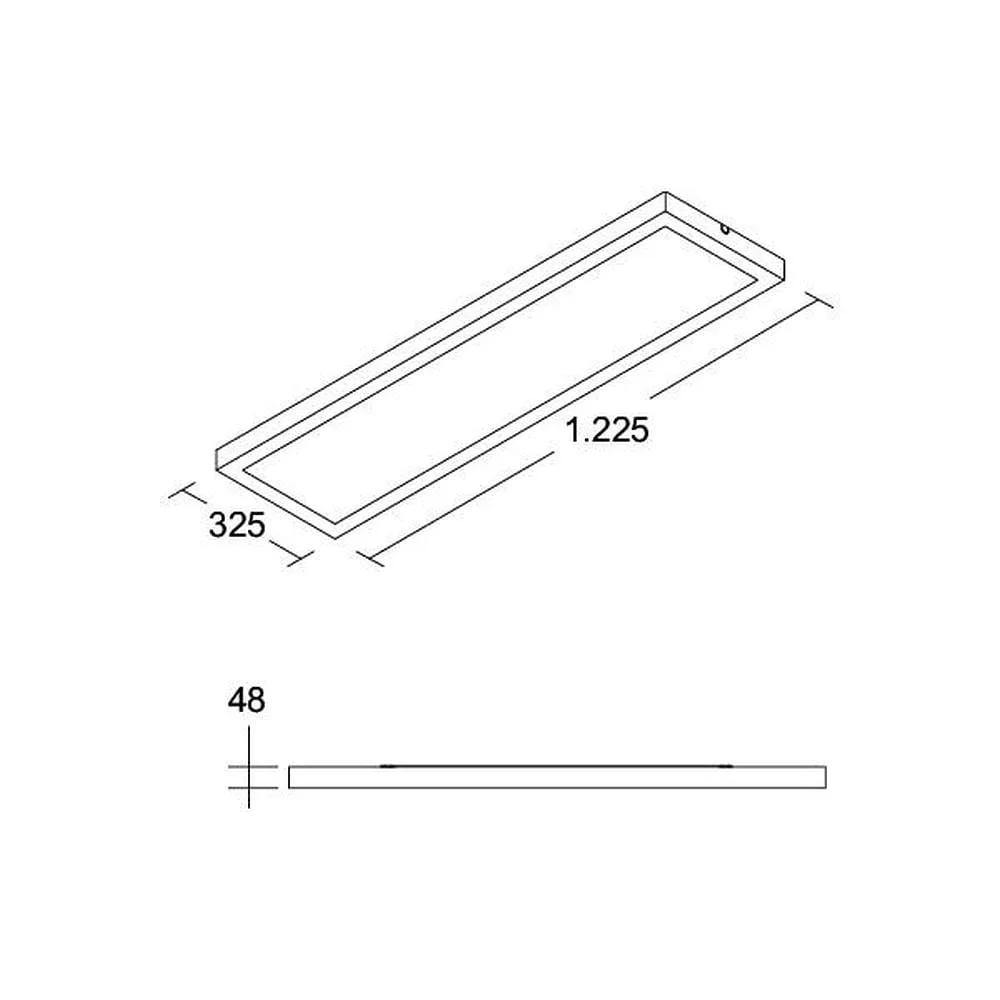

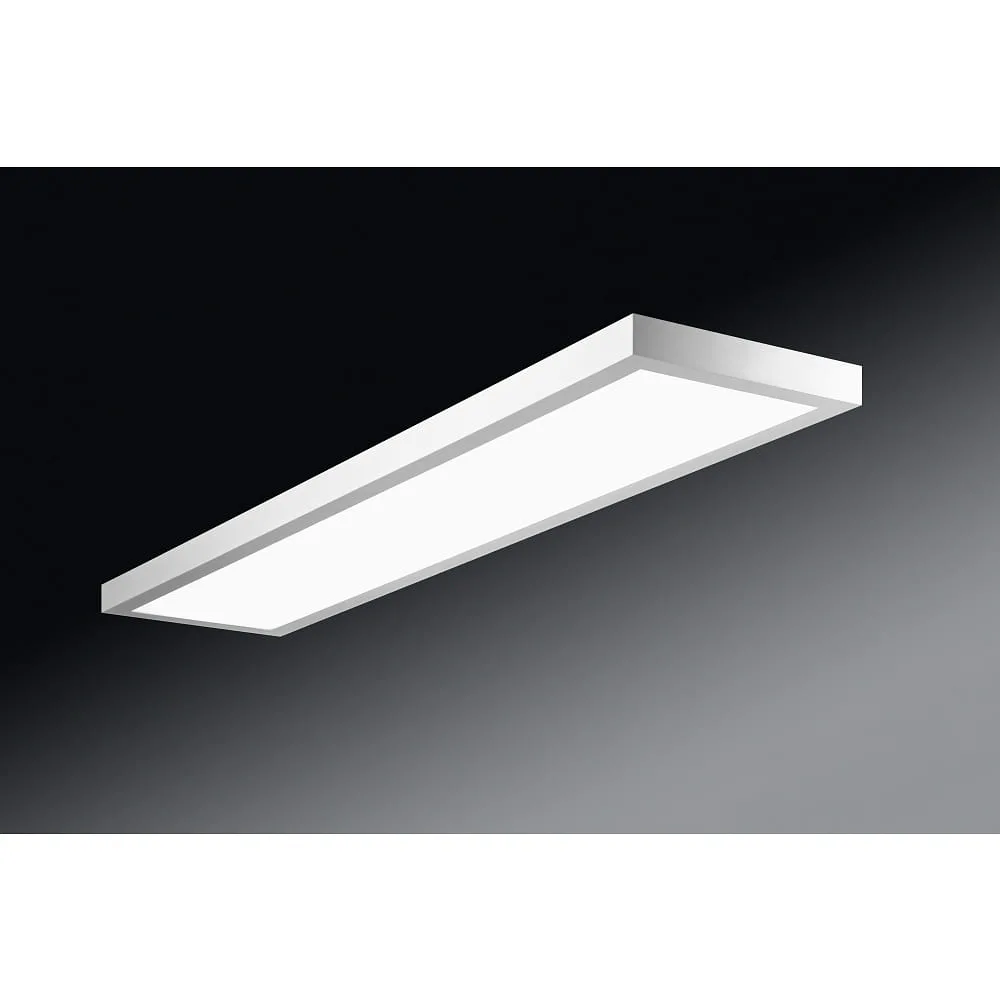

The REFIDO LED surface-mounted panel from Brumberg impresses with its continuously adjustable light color, ranging from extra warm white (2700K) to cool white (6500K). This Tunable White function allows flexible adaptation of the lighting to individual needs. With a size of 122.5 x 32.5 cm and a slim design made of aluminum and polycarbonate, it fits perfectly into a wide variety of rooms and provides pleasant and efficient illumination.

Energy Efficiency and Long Lifespan

The LED panel stands out due to its high energy efficiency: with a power consumption of only 34 watts, it produces a luminous flux of up to 4750 lumens at 6500K. The luminous efficacy is impressively up to 140 lumens per watt, ensuring economical yet bright lighting. Additionally, an average lamp lifespan of up to 78,000 hours guarantees long-lasting use without frequent maintenance or replacement.

Comfortable Operation and Dimmability

Thanks to integrated DALI dimmability (DT8), the brightness of the panel can be controlled individually. The light color can be continuously adjusted via an external DALI-2 or DALI DT-8 controller, enabling optimal adaptation to different work or mood requirements. The included LED driver ensures easy connection to the mains voltage and a secure power supply.

Optimal Glare Control and Protection Class

With a UGR value below 19, the REFIDO LED panel is specially designed for lighting at computer workstations and ensures glare-free light distribution. The microprismatic PC cover additionally contributes to pleasant light diffusion. The aluminum housing is robust and high-quality processed, while the protection class IP20 and IK03 guarantee protection against touch and mechanical impacts.

Versatile Applications and Technical Details

The LED panel operates with a mains voltage of 176 to 276 volts and is suitable for both AC and DC voltage. It meets the requirements of the glow wire test according to IEC 60695-2-12 at 650°C and is eligible for funding through BEG. Weighing 3.6 kg, the luminaire is easy to install. Accessories such as connection cables or controllers are available separately, allowing for individual equipment. The REFIDO LED panel is available in various versions, including switchable and DALI-dimmable options.
