LED panel REFIDO 2CCT DALI-2 / 62.5 X 62.5 CM surface-mounted version, DALI controllable, CCT Switch, UGR < 19

High-Quality LED Surface-Mounted Panel REFIDO from Brumberg

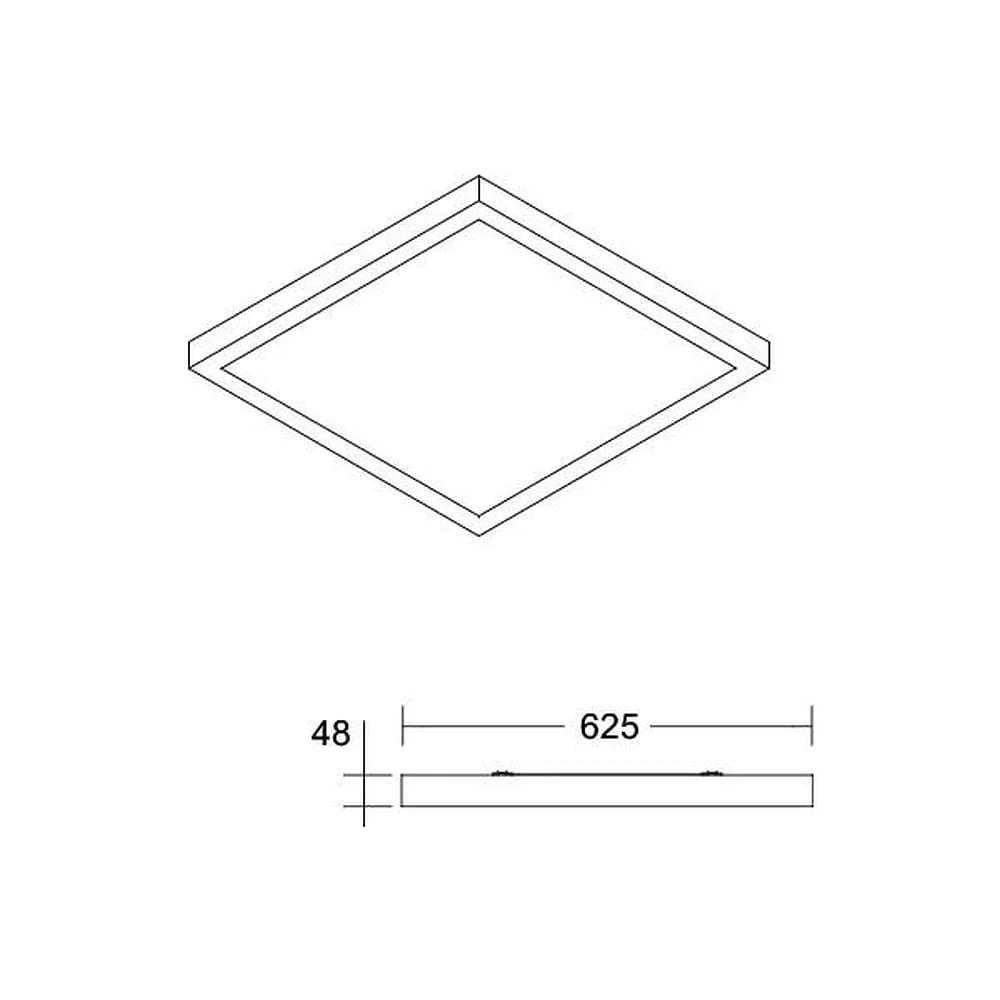

The LED surface-mounted panel REFIDO impresses with its first-class quality and modern technology. With dimensions of 62.5 x 62.5 cm and a slim installation height of 4.8 cm, it is ideal for a wide range of applications. The white aluminum housing combined with a micro-prismatic PMMA cover ensures uniform light distribution and an appealing design. The luminaire is specially designed for use in work areas with computer workstations and offers glare control with a UGR value below 19, providing pleasant and eye-friendly lighting.

Efficient Light Output and Flexible Light Colors

The REFIDO LED panel offers an impressive luminous efficacy of up to 144 lumens per watt, depending on the selected color temperature. The light color can be stepped between warm white (3000K) and neutral white (4000K), which is made possible by an integrated light color switch directly on the luminaire. The luminous flux is a maximum of 4250 lumens at 3000K and 4450 lumens at 4000K. Additionally, an emergency operation with 390 lumens is possible, ensuring basic lighting even during a power failure.

Long Service Life and Robust Technology

The LED panel is characterized by a very long service life of up to 78,000 hours (L80/B10 at 25°C), which ensures high reliability and low maintenance costs. It features an integrated LED driver that allows direct connection to mains voltage between 176 and 276 volts. The luminaire is equipped with protection class 1 and meets the requirements of the glow wire test according to IEC 60695-2-12 at 650°C, further emphasizing its safety.

Intelligent DALI Dimming Function and Versatile Control Options

The REFIDO panel offers a DALI dimming function (DT6, DALI-2 compatible), enabling seamless adjustment of brightness and thus optimal lighting conditions. The equipment includes a light color switch and an integrated driver. Connection cables, controllers, and dimmers are available separately, allowing the luminaire to be flexibly integrated into existing lighting control systems. This smart luminaire is therefore perfectly suited for modern and energy-efficient lighting solutions.

Practical Details and Versatile Applications

Weighing only 3.6 kg, the LED panel is easy to install and handle. The protection class IP20 and ambient temperature range from -20 to +45°C make the panel robust and durable. It is eligible for funding through BEG and available in various versions, including switchable, DALI-dimmable, and Tunable White variants. The aluminum housing combined with the PMMA cover provides an attractive appearance while ensuring uniform light distribution without glare.
