LED panel REFIDO 2CCT DALI-2 / 32.5 X 32.5 CM surface-mounted version, DALI controllable, CCT Switch, UGR < 19, dimmable 13

High-Quality LED Surface-Mounted Panel from Brumberg

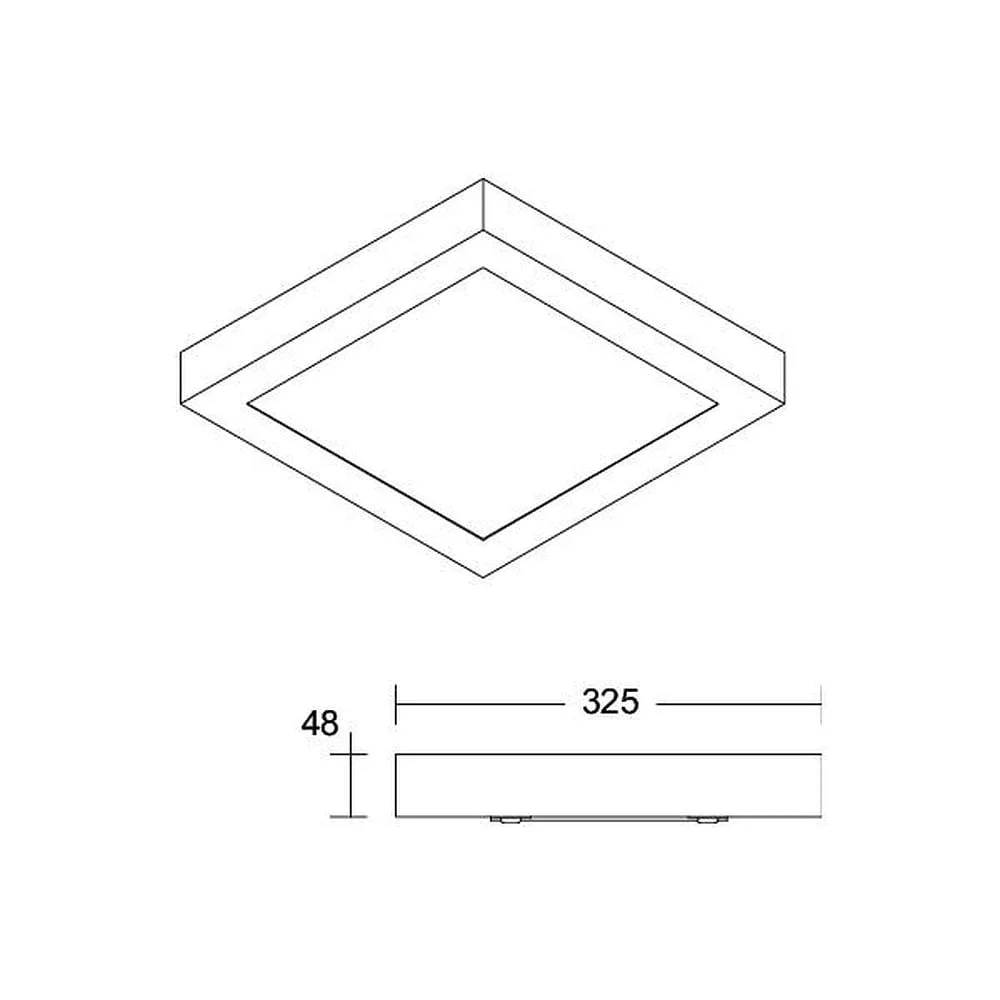

The REFIDO LED surface-mounted panel from Brumberg impresses with its modern technology and high-quality workmanship. With dimensions of 32.5 x 32.5 cm and a slim build height of 4.8 cm, the white aluminum housing fits elegantly into any environment. The micro-prismatic PMMA cover ensures uniform light distribution and reduces disturbing glare. With an IP20 protection rating and protection class 1, the panel is safe and durable. Weighing only 1.5 kg, it facilitates easy installation and handling.

Efficient and Variable Light Output

The LED panel offers an impressive luminous efficacy of up to 115 lumens per watt at 4000K color temperature and 107 lumens per watt at 3000K. The light color can be easily switched between warm white (3000K) and neutral white (4000K) via a switch, allowing the panel to be flexibly adapted to different requirements. With a luminous flux of up to 1500 lumens, it provides pleasant and bright lighting. The light emission occurs at an angle of 85°, ensuring broad and even light distribution.

Long Service Life and Reliable Technology

The REFIDO LED panel is designed for a long service life and achieves up to 78,000 operating hours at 80% light output (L80/B10) at an ambient temperature of 25°C. The glow wire test according to IEC 60695-2-12 at 650°C guarantees high safety and quality. The integrated LED driver allows direct connection to a mains voltage of 176 to 276 volts and supports both alternating and direct current. Furthermore, the panel is DALI dimmable and suitable for emergency lighting operation when a central external battery is available.

Comfortable Control and Versatile Applications

Included in the delivery are a light color switch and the necessary LED driver, so the panel is ready for immediate operation. Connection cables, controllers, and dimmers are available separately and allow individual control. The DALI dimmability as well as the Tunable White version offer flexible adjustment options to optimally set the light color and brightness according to the respective need. Due to the low glare (UGR <19), the panel is particularly well suited for screen workplaces and ensures eye-friendly lighting.

Sustainability and Eligibility for Subsidies

The REFIDO LED surface-mounted panel is not only energy-efficient with a consumption of only 13.5 watts but also eligible for subsidies under the BEG guidelines. The high light quality with a color rendering index of over 80Ra ensures natural colors and pleasant light. The robust construction with an aluminum housing and the long service life make the panel a sustainable investment. The possibility to operate multiple luminaires on one circuit breaker increases cost-effectiveness and simplifies the planning of larger lighting concepts.
