LED panel REFIDO 2CCT / 32.5 X 32.5 CM surface-mounted version, CCT Switch, UGR < 19, switchable

High-Quality REFIDO LED Surface-Mounted Panel for Efficient Lighting

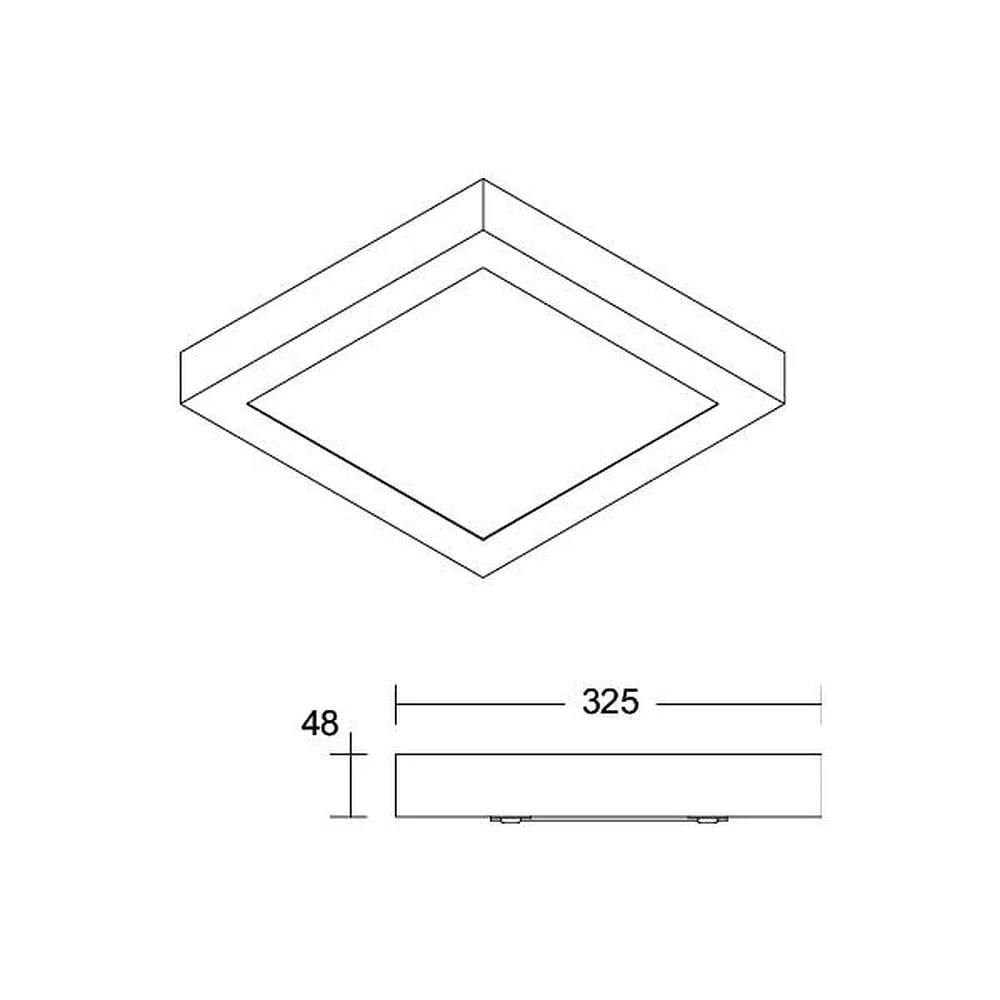

The REFIDO LED surface-mounted panel from Brumberg impresses with its first-class workmanship and modern technology. With dimensions of 32.5 x 32.5 cm and a slim design of only 4.8 cm, the white aluminum housing with micro-prismatic PMMA cover integrates elegantly into any environment. The panel offers a high luminous efficacy of up to 112 lumens per watt while consuming only 12 watts of power, resulting in low energy consumption of 12 kWh per 1,000 hours. The durable LED technology guarantees an average lifespan of up to 78,000 hours, ensuring sustainable and low-maintenance lighting.

Flexibly Adjustable Light Colors for Individual Needs

The REFIDO LED panel features a switchable light color, which can be selected via an integrated switch between warm white (3000 Kelvin) and neutral white (4000 Kelvin). This flexibility allows for adapting the lighting ambiance to different requirements. The light output is 1300 lumens in warm white mode and 1350 lumens in neutral white mode, providing bright and pleasant illumination. Thanks to an 85-degree beam angle, the light is distributed evenly and glare-free with a UGR value below 19, making it ideal for screen workstations.

Technically Well-Designed and Easy to Install

The LED panel is equipped with an integrated LED driver that allows direct connection to an operating voltage of 176 to 276 volts. It operates reliably with mains frequencies of 0, 50, and 60 Hz and supports both alternating and direct current. The terminal block ensures straightforward installation, while the connection cable is available separately. Weighing only 1.5 kilograms, the panel is easy to handle. Protection class 1 and IP20 rating provide basic protection for use in dry environments.

Durability and Safety for Long-Term Use

The excellent lifespan of the REFIDO panel ensures long-lasting operation without frequent maintenance. At an operating temperature range of -20 to +45 degrees Celsius, the panel achieves a lifespan of up to 125,000 hours (L70/B50) and offers high reliability. Additionally, the luminaire passes the glow wire test according to IEC 60695-2-12 at 650 degrees Celsius, enhancing fire safety. Thanks to the option to be used as an emergency lighting system (with central external battery), the panel is also suitable for safety-relevant applications.

Additional Accessories and Various Versions

The scope of delivery of the LED panel includes a light color switch and the LED driver, while the connection cable is available separately. The product is available not only as a switchable version but also in DALI-dimmable and Tunable White variants. This allows for even more precise control of the lighting according to individual requirements. Furthermore, the REFIDO panel is eligible for BEG funding, making it an attractive choice for energy-efficient projects. The combination of efficiency, flexibility, and high quality makes the LED surface-mounted panel an ideal solution for various lighting requirements.
