converter LINEO 500-700MA / 35W SINGLE PLUG / ON-OFF 1-fold, CCT Switch, with plug, switchable, blue, white

Innovative LINEO LED Converter for Efficient Lighting

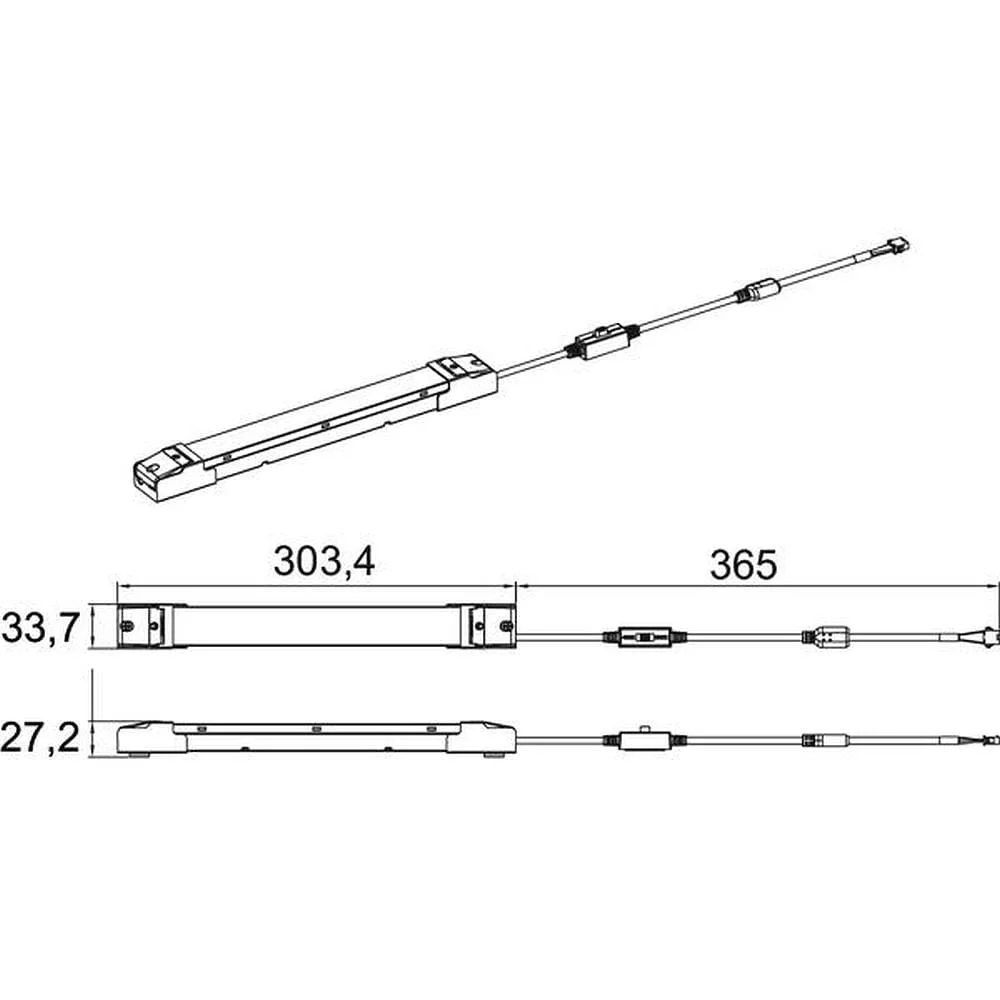

The LINEO LED converter from Brumberg is the ideal solution for retrofitting existing grid ceiling lights with modern LED technology. With a power rating of 35 watts and a switchable CCT switch, it allows easy adjustment of the light color between warm white (3000K) and neutral white (4000K). The compact design, measuring 30.34 x 3.37 x 2.72 cm and weighing only 0.3 kg, ensures straightforward installation without much effort.

Simple and Safe Connection Technology

The converter features a single plug system with a pre-installed connection cable and plug, enabling tool-free connection to the LINEO LED module. The supply line is connected via a 3-pole screw terminal, ensuring a reliable and secure power supply. The operating voltage ranges from 198 to 264 volts and supports both alternating and direct current.

Technical Details for Optimal Performance

The LED driver operates with a constant current low-voltage output and safety extra-low voltage (SELV), which enhances operational safety. With a power factor of 0.9, as well as a low flicker value (Pst LM 1.00) and minimal stroboscopic effect (SVM 0.4), the converter provides pleasant and eye-friendly lighting. Additionally, fuses for overvoltage and thermal overload are integrated to ensure reliable operation.

Energy Efficiency and Comfort Features

The energy consumption of the LINEO converter is only 40 kWh per 1,000 operating hours, enabling sustainable and cost-saving lighting. The included light color switch allows easy selection of the desired color temperature. Protection class 1 and IP20 rating ensure safe use in various environments. Additionally, four self-adhesive holders for the supply cable are included, supporting neat and secure cable management.

Flexible Accessories and Versatile Applications

The LINEO LED converter is specially designed for operation in an LED retrofit mode and can be quickly integrated into existing grid luminaires. The scope of delivery includes the light color switch, connection cable, and a plug. Connection cables, LED modules, and emergency lighting units are available separately. The converter is also suitable for use with emergency lighting systems when a central external battery is present. In addition to the on-off version, a DALI-2 dimmable model is also available, offering even more flexibility in light control.
