converter LINEO 500-700MA / 35W SINGLE PLUG / DALI-2 1-fold, DALI controllable, CCT Switch, with plug, blue, white

Innovative LED Converter for Efficient Lighting

The LINEO LED converter from Brumberg is a powerful and reliable driver specifically designed for upgrading fluorescent grid lights to modern LED technology. With a power consumption of 42 watts and an energy-efficient usage of 42 kWh per 1,000 operating hours, this converter provides a sustainable lighting solution. The integrated DALI-2 dimming function allows easy control of light intensity, while the CCT switch offers a choice between warm white (3000 K) and neutral white (4000 K) light.

Easy Installation and Flexible Connection Options

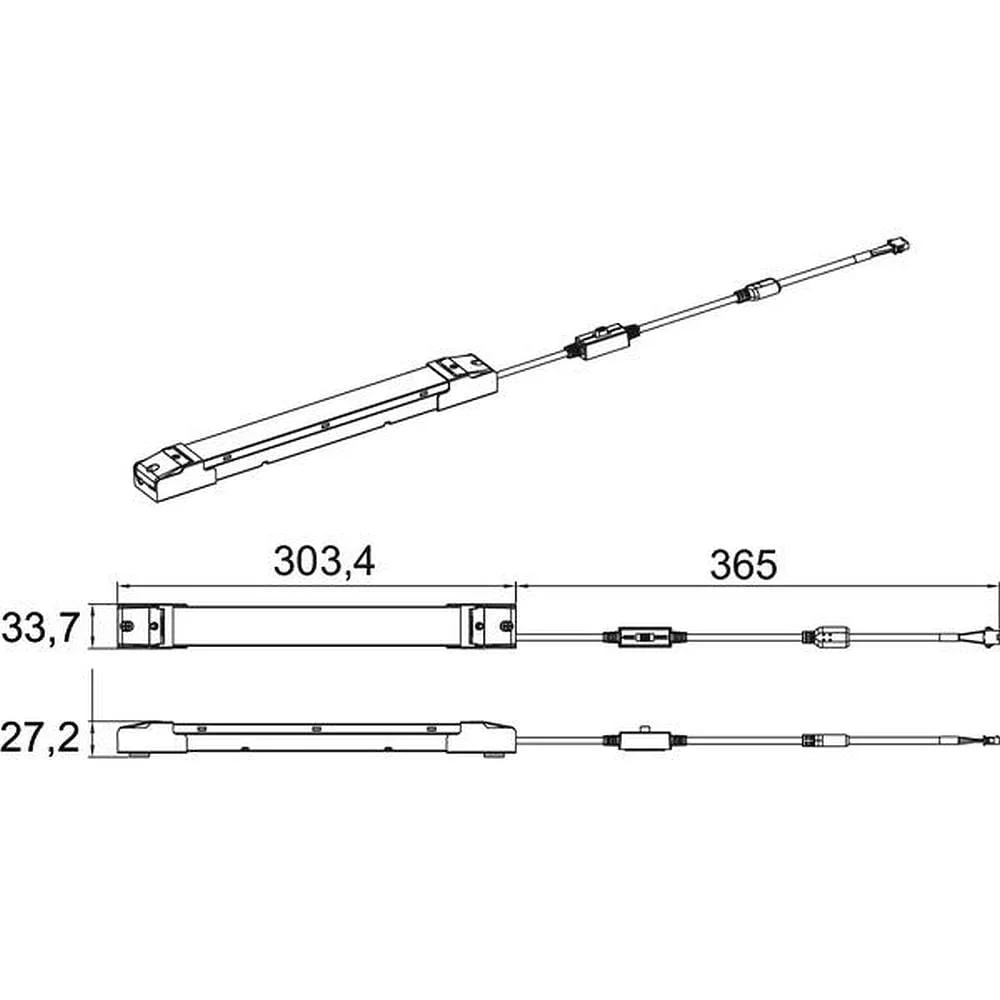

The LINEO converter impresses with its user-friendly handling. The connection cable, measuring 36.5 cm in length, is equipped with a single-pole plug system that enables a tool-free connection to the LED module. The supply line is connected via a 3-pole screw terminal, ensuring a secure and stable connection. Additionally, the driver is compatible with both AC and DC voltage in the range of 176 to 276 volts, allowing flexible integration into different systems.

Robust Design and High Safety

The housing of the LED converter is made of high-quality plastic and steel, guaranteeing long service life and stability. Weighing only 160 grams, the driver is also very compact and lightweight. Protection class 1 and IP20 rating provide adequate protection against contact with live parts and dust. Furthermore, the converter is equipped with protection devices against overvoltage and thermal overload, significantly enhancing operational safety.

Optimal Integration into Digital Control Systems

The LINEO LED converter is ideal for use in modern building automation systems and IoT networks. It supports DALI-2 and PUSH dimming controls, making it easy to integrate into intelligent lighting management systems. This allows users to optimally adjust the lighting to their needs while saving energy. The low-flicker light output with a flicker value of 1.00 ensures pleasant lighting without unpleasant effects.

Comprehensive Accessories for a Complete Solution

The delivery scope of the LED converter includes a light color switch, a plug, and a connecting cable, which facilitate installation and enable quick commissioning. The connection cable and controller are available separately, allowing the converter to be individually adapted to the respective project. Additionally, the product offers the option to be combined with an emergency light module, providing additional safety in the event of a power failure.
