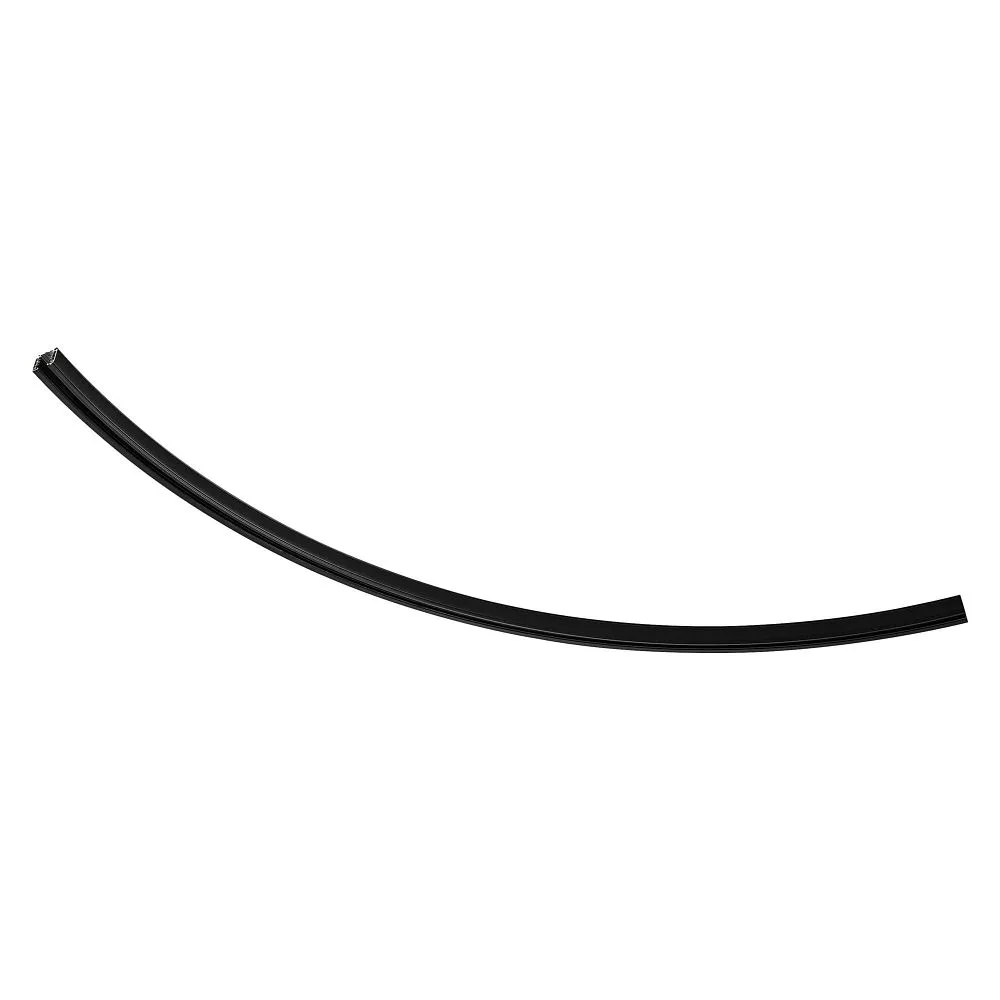

3-phase surface-mounted track D LINE / DALI CURVED 90° / RADIUS 1M right, 6-pole, graphite black

Innovative Curved 3-Phase Surface-Mounted Track by Deko-Light

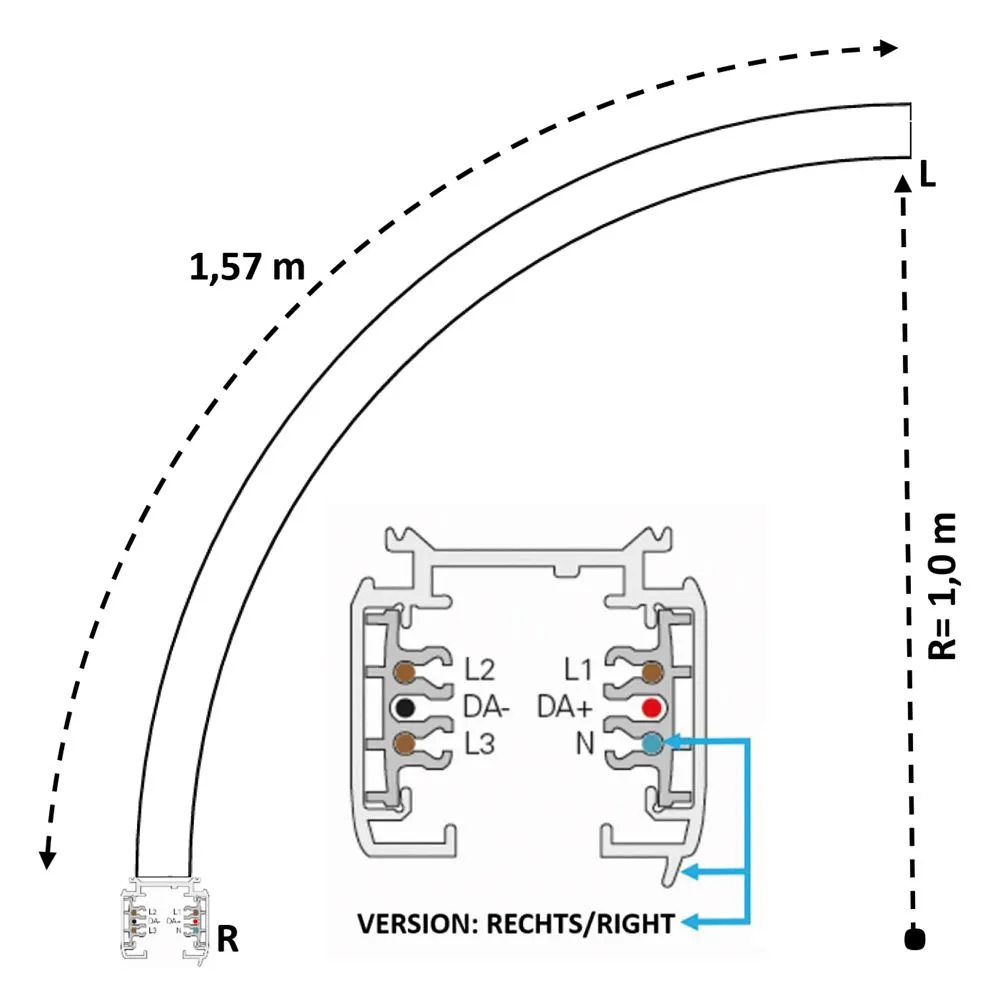

The 3-phase surface-mounted track D LINE/DALI CURVED 90° by Deko-Light is a high-quality high-voltage track system compatible with the latest digital building automation. With an operating voltage of 220-240V~ and a mains frequency of 50/60Hz, this track provides a reliable power supply. The product is characterized by its curved shape, which enables new design possibilities such as rounded corners, semicircles, circles, or waves. This allows you to flexibly and creatively customize your lighting system.

Technical Details and Load Capacity

The track is made of robust aluminum in an elegant graphite black color and measures 157 x 3.52 x 3.55 cm. It is designed for a maximum load of 25 kg per meter and can be loaded with up to three phases, each with 16 amperes. This corresponds to a power of up to 3680 watts per phase. As a result, the system is ideal for powerful lighting solutions. Protection class 1 and protection rating IP20 ensure safe operation within the intended area.

Compatibility and Control Options

The surface-mounted track is compatible with both D-Line DALI and standard tracks and supports DALI-2 dimming, enabling precise control of the lighting. Thanks to modern DALI technology, the connected luminaires can be individually controlled and efficiently regulated. Control via DALI-2 ensures smart and user-friendly operation, which works seamlessly even in complex lighting systems.

Flexibility in Installation and Accessories

This curved track is designed for surface mounting but can also be pendant-mounted using suspension sets, offering additional design flexibility. Due to the curvature, the use of power track adapters in standard lengths (maximum 12 cm) is required. For DALI self-configuration, a special cutting tool is recommended, which is available as an accessory. The track is also available in black and white and can be ordered with the protective conductor on the left or right side.

Versatile Applications and Design Freedom

With the Deko-Light 3-Phase Surface-Mounted Track CURVED, you benefit from high compatibility, easy control, and great load capacity. The curved design opens up new perspectives in room design and allows the implementation of individual lighting concepts. Whether as a semicircle, wave, or rounded corner – this track brings flexibility and aesthetics to your lighting system while meeting the highest technical standards with a simple, modern design.
