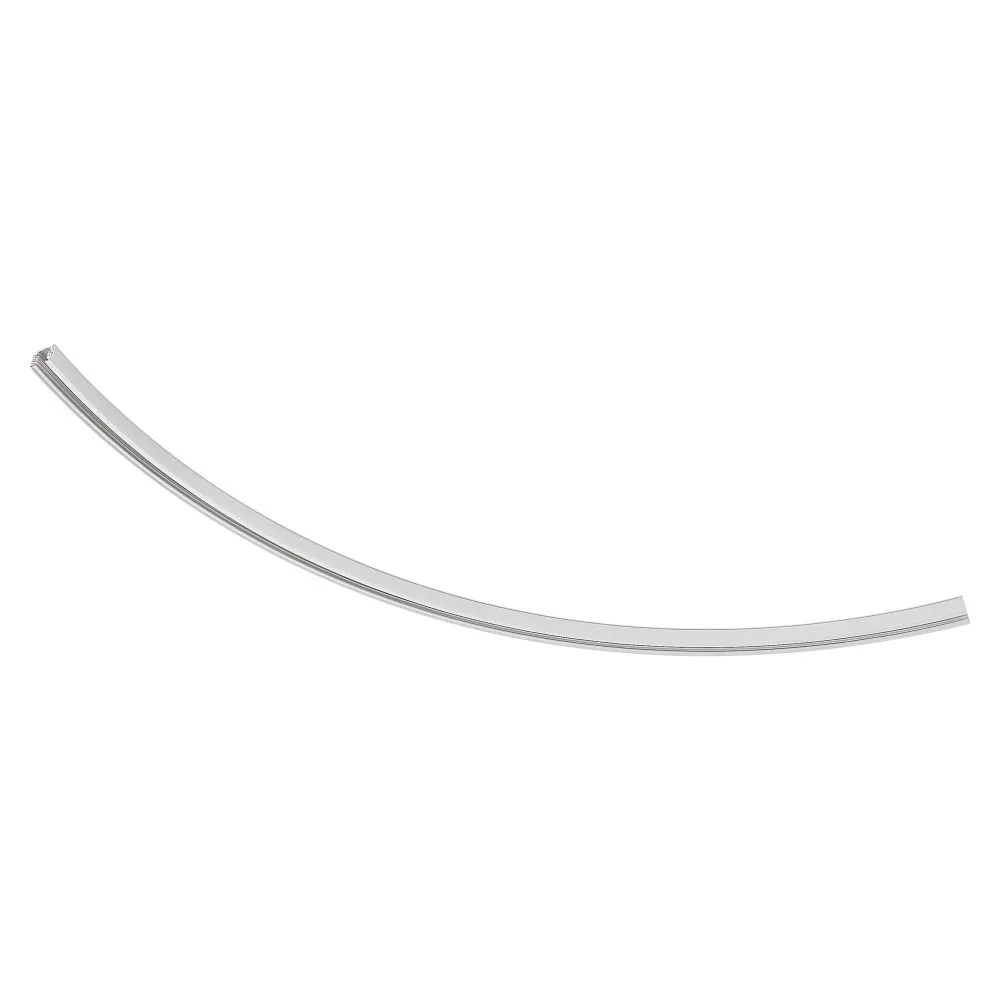

3-phase surface-mounted track D LINE / DALI CURVED 90° / RADIUS 1M right, 6-pole, traffic white

Innovative 3-Phase Surface Mounted Track System by Deko-Light

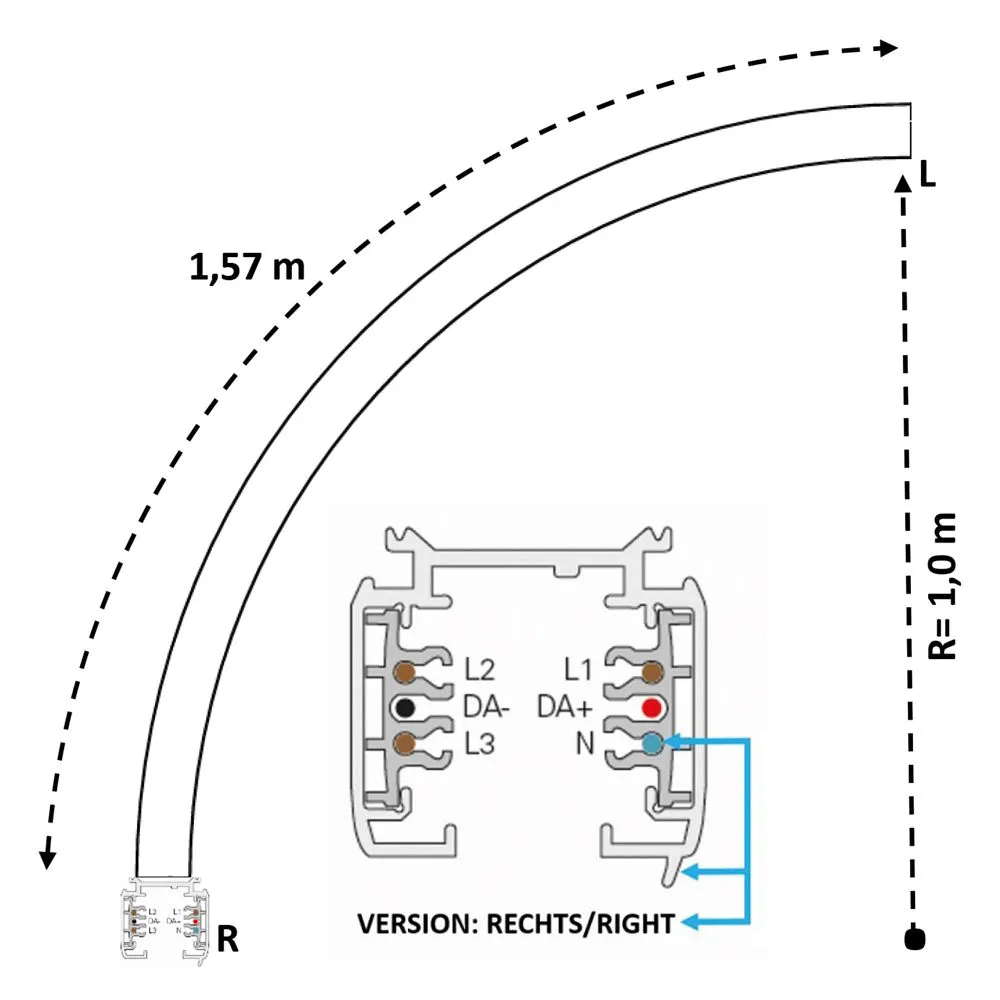

The 3-phase surface-mounted track D LINE/DALI CURVED 90° by Deko-Light is a high-quality high-voltage track system that offers new design possibilities through its curved shape. With a radius of 1 meter and a diameter of 2 meters, this track enables the implementation of rounded corners, semicircles, or even waves. The traffic white aluminum housing provides a modern look and is sturdy enough to support a load of up to 25 kg per meter.

Technical Data and Performance

This track system operates with a supply voltage of 220-240 volts at a mains frequency of 50/60 Hz. The maximum current load is 3 phases with 16 amperes each, corresponding to a power of up to 3680 watts per phase. This makes the track suitable for high-performance lighting solutions and offers high compatibility with D-Line DALI and standard track lights. The low weight of 1.32 kg facilitates installation and handling.

DALI-2 Control and Dimmability

The system is compatible with modern DALI-2 control, enabling precise and flexible lighting control. Dimmability is achieved via DALI/DT6, ensuring easy integration into digital building automation systems. This intelligent control provides efficient light regulation and contributes to energy savings without compromising comfort.

Installation and Accessories

The surface-mounted track is specifically designed for ceiling installation, with pendant mounting using suspension sets also possible. Due to the curved shape, the track is only compatible with power track adapters of standard length (maximum 12 cm). For DALI custom wiring, a special cutting tool is required, which is available separately. Protection class 1 and IP20 protection rating ensure safe operation in dry environments.

Versatile Applications and Design Freedom

This track system from Deko-Light opens up numerous possibilities for lighting design concepts. It is available in traffic white and black and can be mounted with the protective conductor on the left or right. By combining technical performance with flexible design, the 3-phase surface-mounted track is ideal for sophisticated lighting architectures that are not limited to straight or angular shapes.
