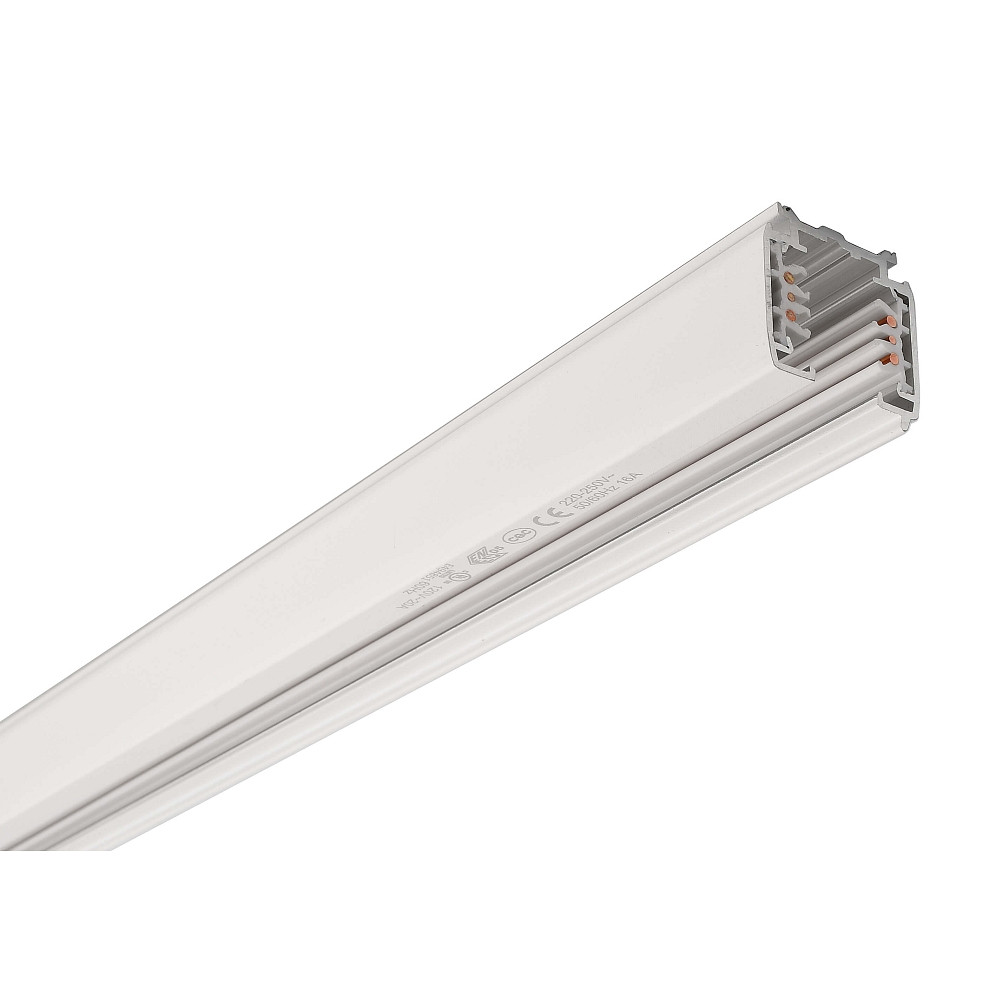

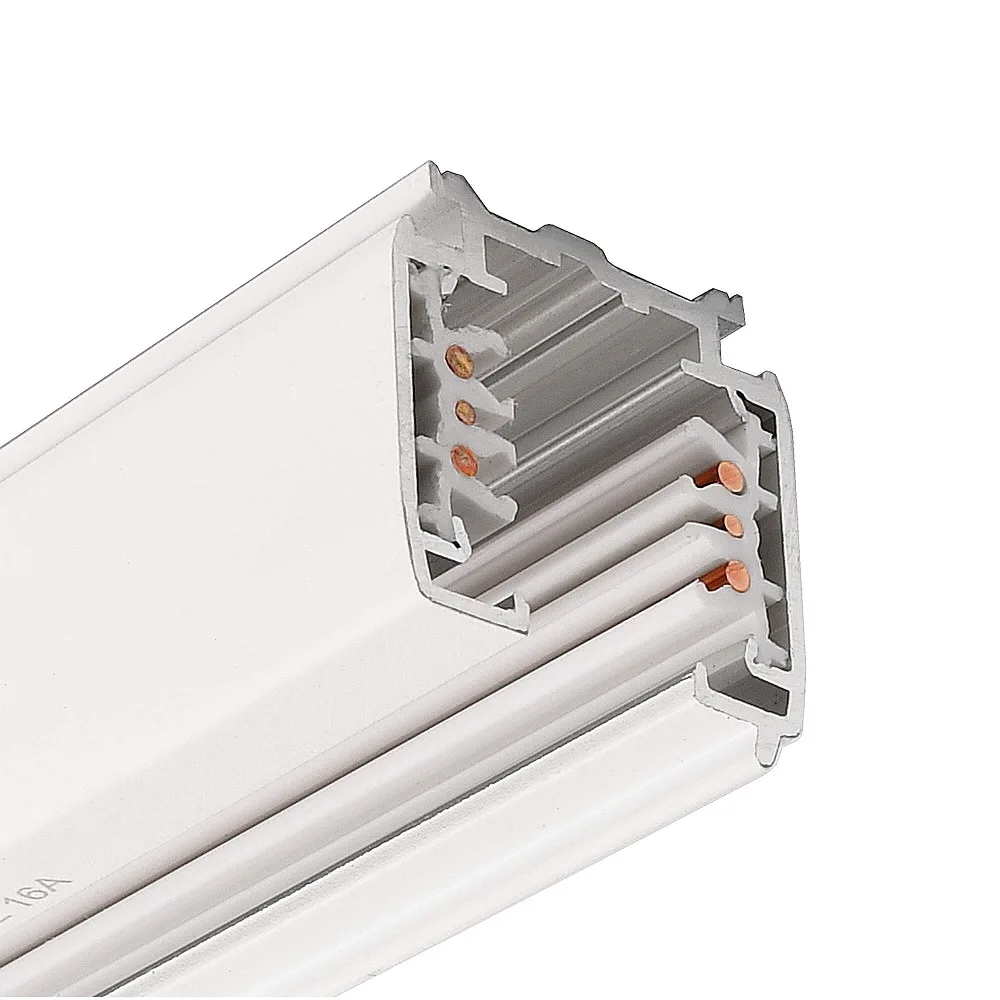

3-phase surface-mounted track D LINE/DALI 200CM, white

3-Phase Surface-mounted Busbar D LINE DALI, 200cm

This 3-phase surface-mounted busbar from Deko-Light is ideal for various applications with a length of 200 cm. Thanks to DALI dimmability, you can adjust the lighting according to your preferences.

Technical Details

The operating voltage is 220-240V~, with a maximum current load of 48A. The surface-mounted busbar is made of aluminum and has a protection rating of IP20. The installation is easy and uncomplicated, perfect for ceiling or wall mounting.

Application Area and Material

This 3-phase surface-mounted busbar is suitable for indoor use only. The aluminum material ensures stability and durability. With a weight of 1.93 kg, the busbar is lightweight yet robust.

Additional Information

This busbar supports various dimming protocols, including DALI 1.0 / DT6, DALI 1.0 / DT8, DALI 2.0 / DT6, and DALI 2.0 / DT8. The maximum load is 25.0 kg/m, providing sufficient space for various light sources.

Conclusion

The 3-Phase Surface-mounted Busbar D LINE DALI from Deko-Light offers a versatile and flexible lighting solution for indoor spaces. With the option for individual dimming and easy installation, this busbar is ideal for use in different rooms.
