3-phase surface-mounted track D LINE/DALI 200CM, black

3-Phase Surface-mounted Busbar D LINE DALI, 200cm

The 3-phase surface-mounted busbar D LINE DALI from Deko-Light is an innovative solution for lighting ceilings and walls indoors. It has an operating voltage of 220-240V and is dimmable to adjust the light intensity individually.

Technical Details

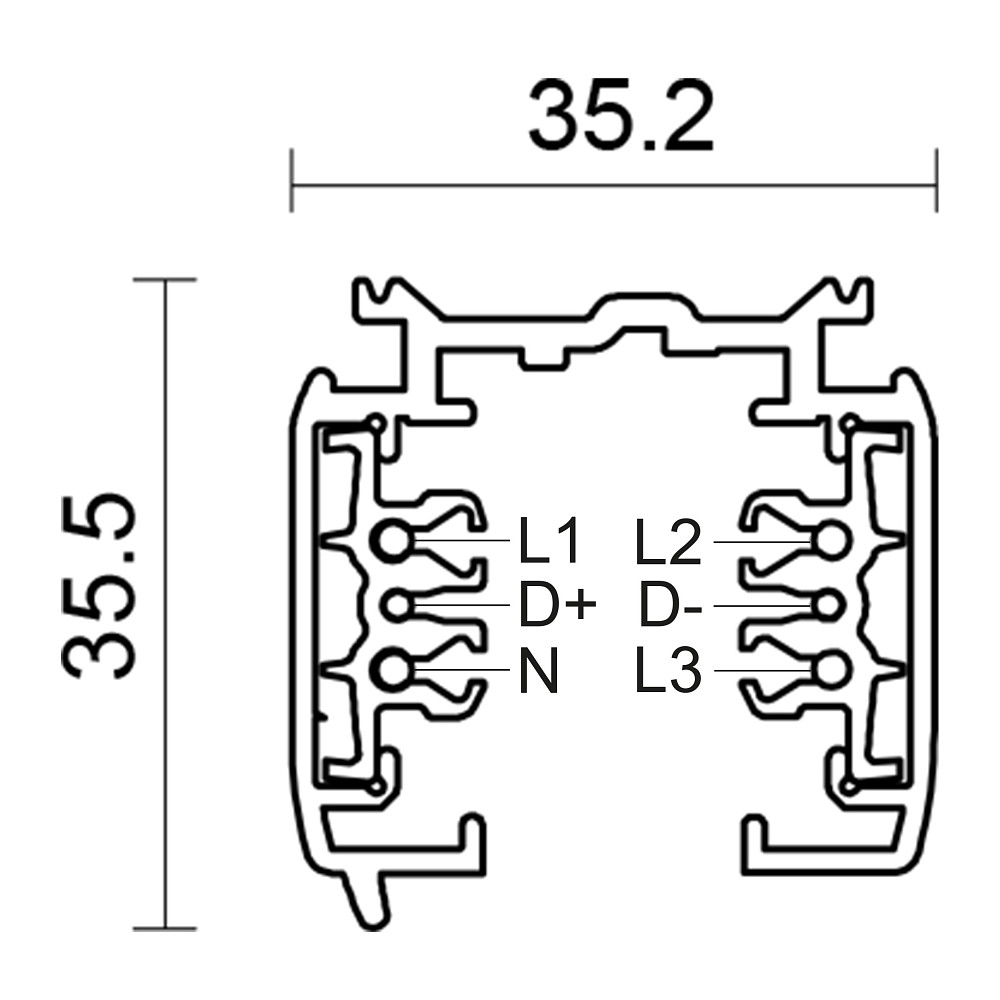

The aluminum busbar has dimensions of 200 x 3.52 x 3.55 cm and weighs 1.93 kg. With a max. current load of 48A and an IP protection rating of IP20, it is robust and safe to use. Installation is easy and quick with surface mounting.

Application Area

The 3-phase surface-mounted busbar is ideal for use in various indoor spaces. It can be installed on both the ceiling and the wall, providing a versatile lighting solution for residential and commercial spaces.

Dimming Protocol

The busbar supports various dimming protocols, including DALI 1.0/DT6, DALI 1.0/DT8, DALI 2.0/DT6, and DALI 2.0/DT8. This allows the lighting to be adjusted and controlled according to needs.

Additional Information

The busbar has a load capacity of 25.0 kg/m, providing sufficient stability for the installation of various lights and lighting solutions. With its modern black design, it blends harmoniously into any room concept.
