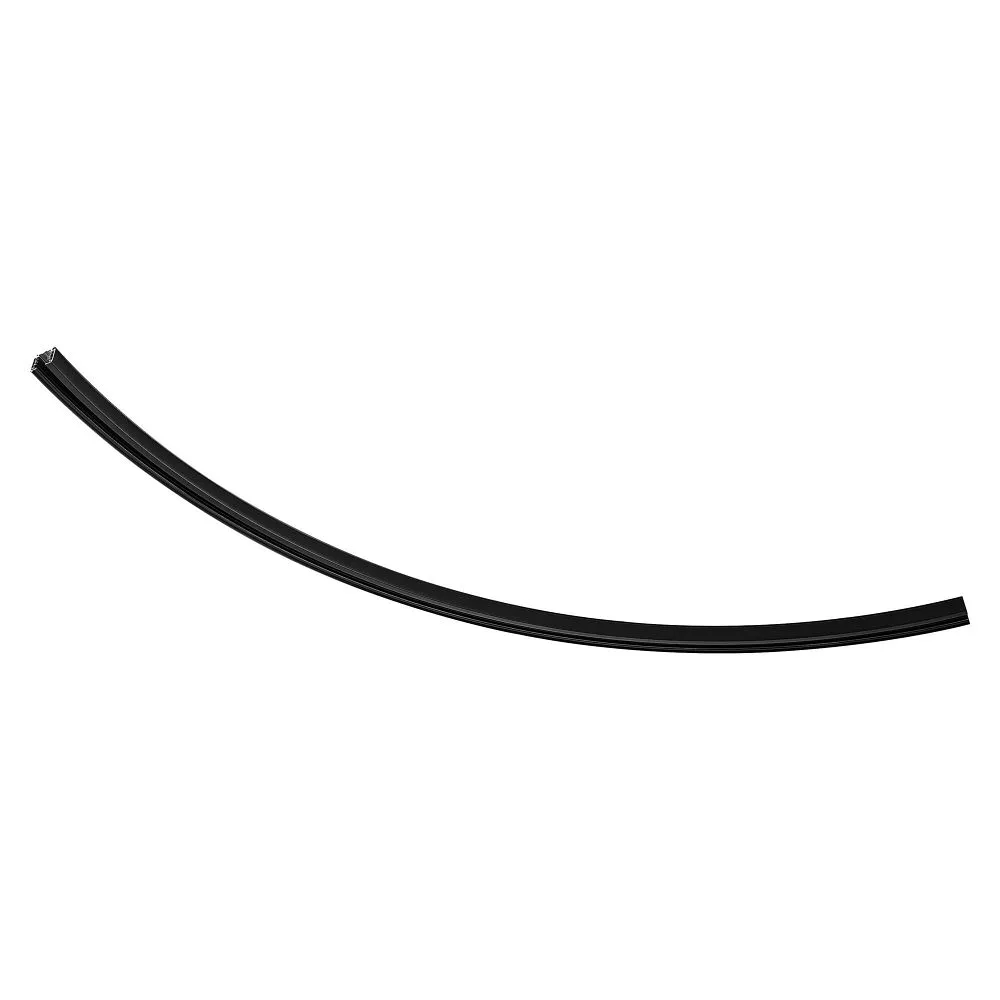

3-phase surface-mounted track D LINE / DALI CURVED 90° / RADIUS 1M left, 6-pole, graphite black

Innovative 3-Phase Surface-Mounted Track System from Deko-Light

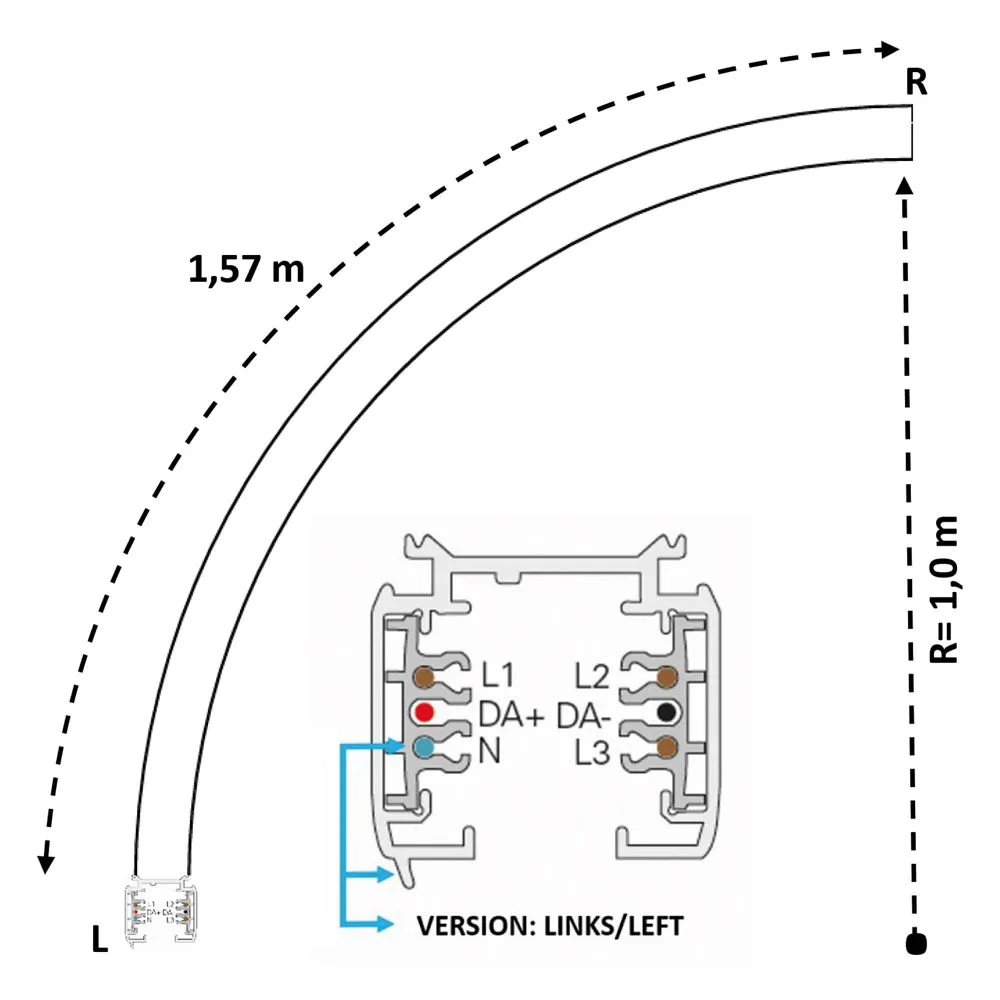

The 3-phase surface-mounted track D LINE/DALI CURVED 90° from Deko-Light offers a flexible and modern solution for smart lighting systems. With a maximum load capacity of 3x 16A and an operating voltage of 220-240V~, this high-voltage power track enables a performance of up to 3680 watts per phase. The curved design with a radius of 1 meter and a diameter of 2 meters opens up entirely new design possibilities, such as rounded corners, semicircles, or wavy lines, which go far beyond conventional straight track systems.

Technical Details and Material Quality

Made from high-quality aluminum, the surface-mounted track features an elegant graphite black finish. With dimensions of 157 cm length, 3.52 cm width, and 3.55 cm height, and weighing only 1.32 kg, it is easy to install while remaining robust. Protection class 1 and IP20 rating ensure reliable safety when used in protected areas. The load capacity of 25 kg per meter ensures that even heavier luminaires can be securely mounted.

Compatibility and Control with DALI-2

The surface-mounted track is fully controllable via DALI-2 and supports dimming according to the DT6 protocol. This enables digital building automation that ensures precise and energy-efficient light control. Additionally, the system is compatible with D-Line DALI as well as D-Line standard tracks, allowing for a wide range of luminaires and accessories. Control via DALI-2 facilitates easy integration into existing smart lighting systems.

Installation and Flexibility

Installation of the surface-mounted track is versatile: it can be mounted directly or suspended using pendant sets. The curved design requires special adapters in standard lengths up to 12 cm, suitable for the bending of the track. For users who want to perform custom configurations with DALI, a corresponding cutting tool is available as an accessory. The option to choose a protective conductor on the left or right allows flexible adaptation to different installation requirements.

Design Variety and Color Options

The product is not only functional but also visually appealing. The high-voltage track is available in black and white, allowing harmonious integration into a wide variety of room concepts. The ability to create creative and individual lighting arrangements with the curved surface-mounted track makes it an ideal choice for sophisticated lighting designs that combine technical precision with aesthetic design.
