Recessed LED panel luminaire FR 78-LED, IP44, LED24 connection, CRi>90, 4W 4000K 270lm 110°, inox look

Hera



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

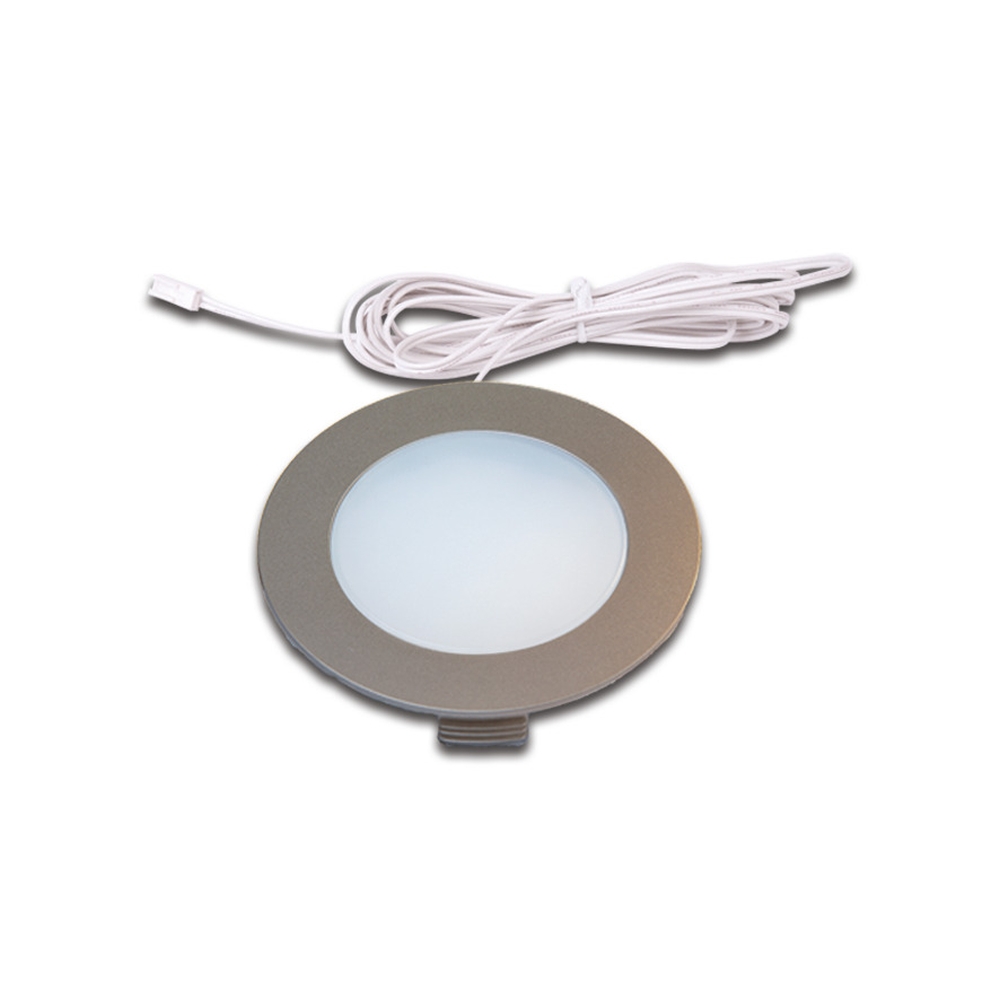

LED Recessed Surface Light FR 78-LED

The LED Recessed Surface Light FR 78-LED is a high-quality product that offers a high color rendering of over 90Ra. With a power consumption of only 4W and a light output of 68lm/W, this luminaire is particularly energy efficient. It is ideal for use in ceilings and furniture in indoor areas.

Technical Details

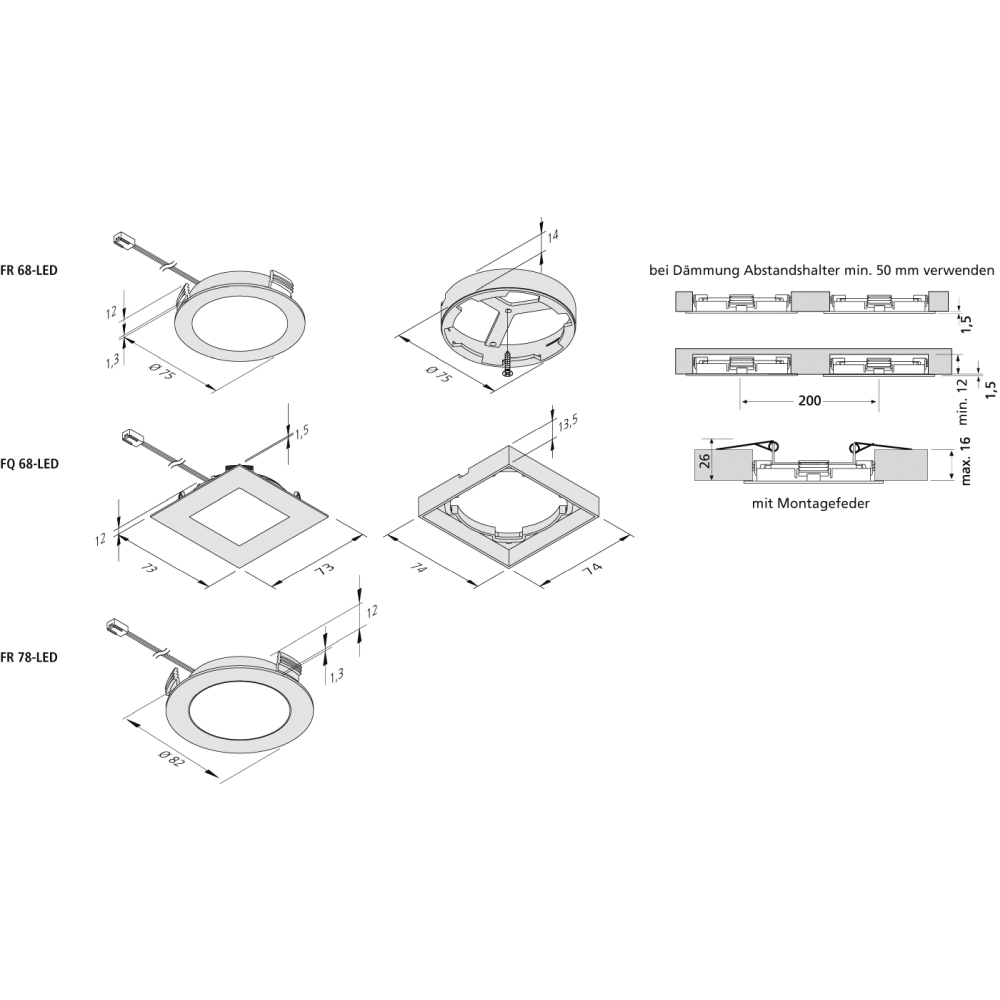

The recessed surface light has a size of Ø 8.2 cm and a height of 1.4 cm. Thanks to the LED-24 connection, the luminaire is dimmable when appropriate accessories are used. The color of the luminaire is stainless steel and opal, resulting in a modern and stylish appearance.

Installation and Connection

The installation is done by recessing and the luminaire is connected via the LED-24 plug system. The product comes with an LED operating device, but without a control gear. The IP protection rating is 20, which means that the luminaire is protected against solid foreign objects with a diameter of 12.5mm.

Additional Information

The LED Recessed Surface Light FR 78-LED has an average lamp lifespan of 54000 hours and a color temperature of 4000K. The light color is neutral white and the light output is 270lm. The light distribution is symmetrical and the beam angle is extremely wide at over 80°.

Safety and Environmental Protection

The luminaire meets photobiological safety according to EN 62471 and color consistency according to SDCM3. It has energy efficiency class G, making it an environmentally friendly product. The LED cannot be replaced, ensuring the longevity and safety of the luminaire.

Article number:
HE-61001760308
Manufacturer:
Hera
Energy efficiency category:
G
EPREL No:
925511
Product type:
Flächenleuchte
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Lamp shape:
round
Power consumption:
4 W
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
symmetric
Light flux:
270 lm
Light yield:
68 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
54000 h
Colour rendering index:
90-100 Ra
1A
Colour:
stainless steel
opal
Material:
plastic
Fitting opening circle :
7,8 cm
Dimension:
Ø∕ H: 8,2∕ 1,4 cm
Plug type:
LED 24 plug-in system
Mounting:
recessed mounting
Field of application:
furniture
ceiling
Protection class:
3
IP-protection class:
20.00
Application area:
only suitable for indoor use
Additional information:
Transformer power: 21 VA
Accessories:
control gear excl
ambient temperature:
-5 - 35 °C
