Recessed LED panel luminaire FR 78-LED, IP44, LED24 connection, CRi>90, 4W 3000K 270lm 110°, inox look

Hera



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

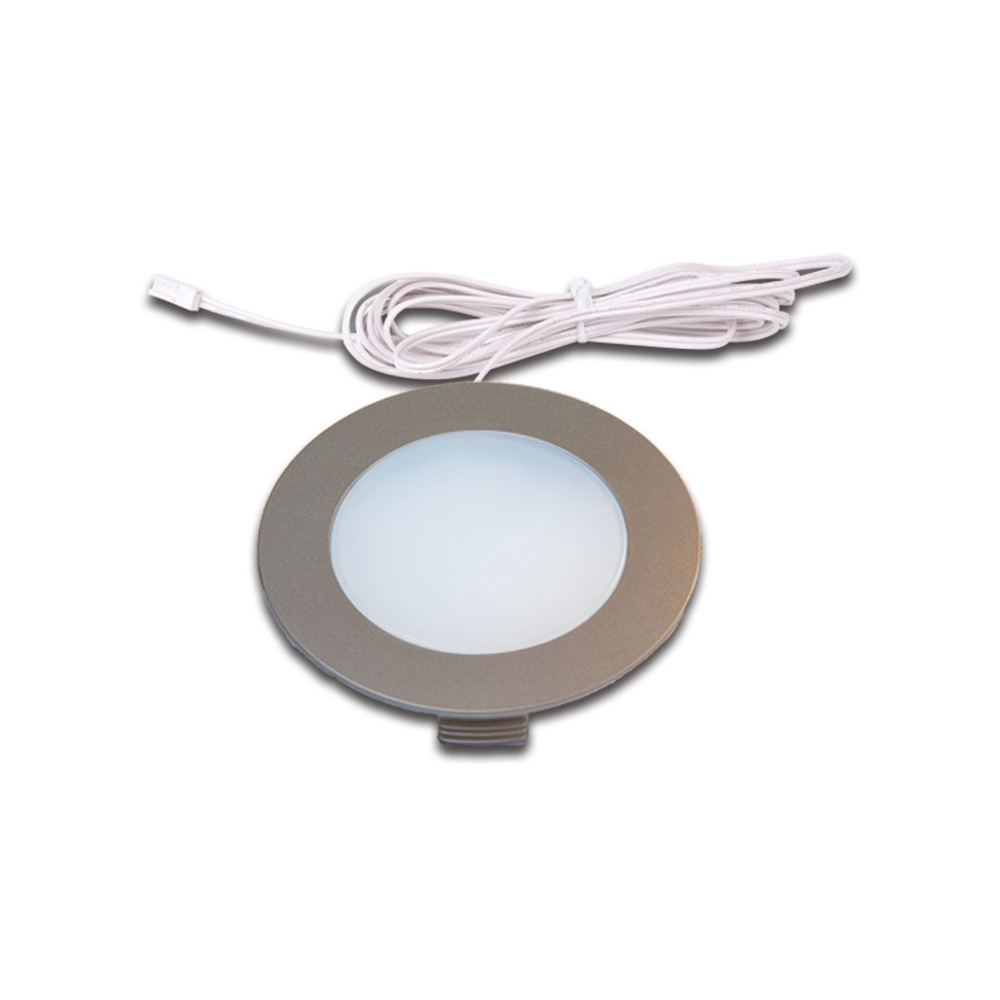

LED Recessed Panel Light FR 78-LED, IP44

The LED Recessed Panel Light FR 78-LED is a high-quality ceiling and furniture light, exclusively suitable for indoor use. With a color temperature of 3000K and a color rendering index of 90-100Ra, it provides excellent color rendering. The article number is HE-61001760208.

Technical Details and Application

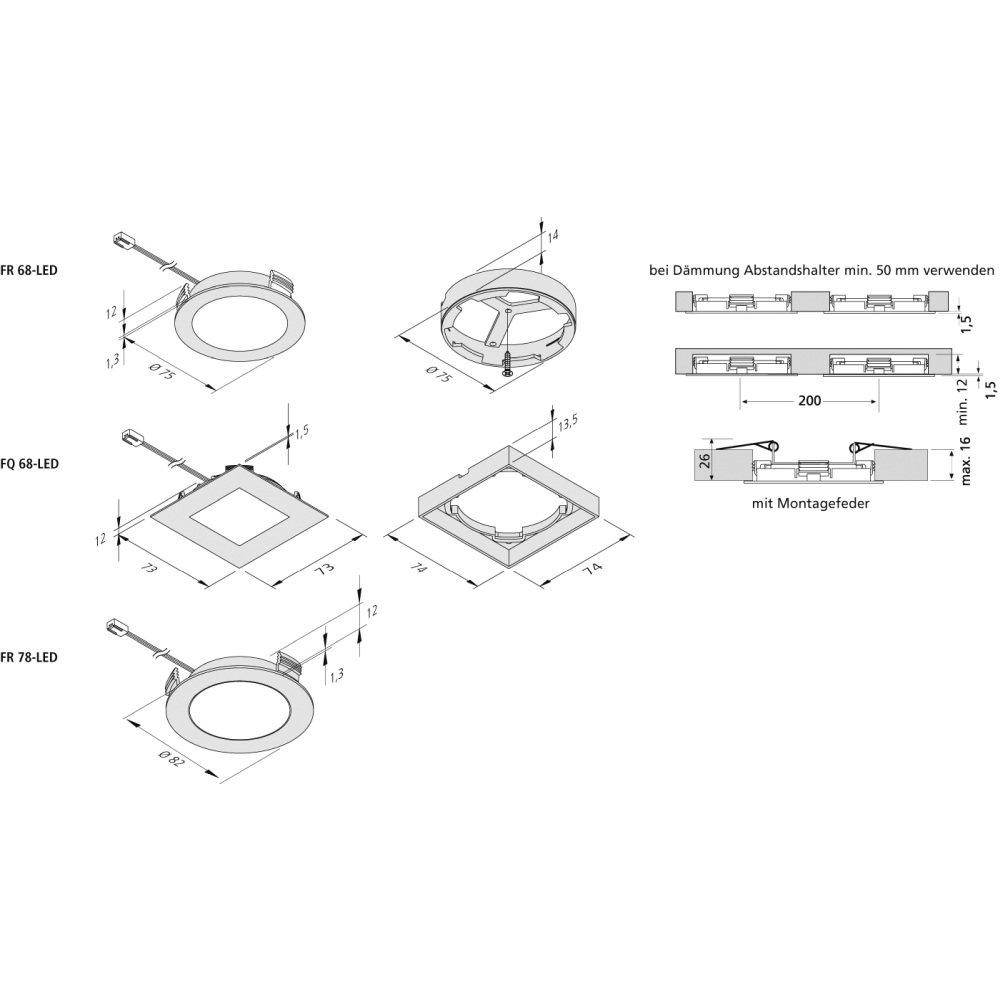

This panel light has a power consumption of 4W and a luminous flux of 270lm. It is dimmable with the appropriate accessories and has an LED-24 connection. The color of the light is stainless steel with an opal diffuser. The installation opening is 7.8cm in diameter and the dimensions are Ø 8.2 cm / H 1.4 cm.

Installation and Connection

The LED Recessed Panel Light is connected with an LED-24 plug system and can be easily installed in ceilings or furniture. The installation is done by recessing and the light has an IP protection rating of 20. The operating device is not included and must be purchased separately.

Additional Information

The panel light has an average lamp lifespan of 54000 hours and an energy efficiency class of G. It has a symmetrical light distribution with an extremely wide beam angle of over 80°. The light has a rigid appearance and a color consistency grade of SDCM3.

Accessories and Certifications

To operate the LED Recessed Panel Light, an LED operating device is required. The light complies with the photobiological safety standards according to EN 62471 and is delivered without a glow wire test according to IEC 60695-2-11. The EPREL number is 925511.

Article number:
HE-61001760208
Manufacturer:
Hera
Energy efficiency category:
G
EPREL No:
925511
Product type:
Flächenleuchte
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Lamp shape:
round
Power consumption:
4 W
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
warm white
Light emission:
symmetric
Light flux:
270 lm
Light yield:
68 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
54000 h
Colour rendering index:
90-100 Ra
1A
Colour:
stainless steel
opal
Material:
plastic
Fitting opening circle :
7,8 cm
Dimension:
Ø∕ H: 8,2∕ 1,4 cm
Plug type:
LED 24 plug-in system
Mounting:
recessed mounting
Field of application:
ceiling
furniture
Protection class:
3
IP-protection class:
20.00
Application area:
only suitable for indoor use
Additional information:
Transformer power: 21 VA
Accessories:
control gear excl
ambient temperature:
-5 - 35 °C
