1-phase spot KALU 2.0 PHASE cylindrical, UGR < 19, with lens optics, cardanic swivelling IP20, white, lacquered dimmable

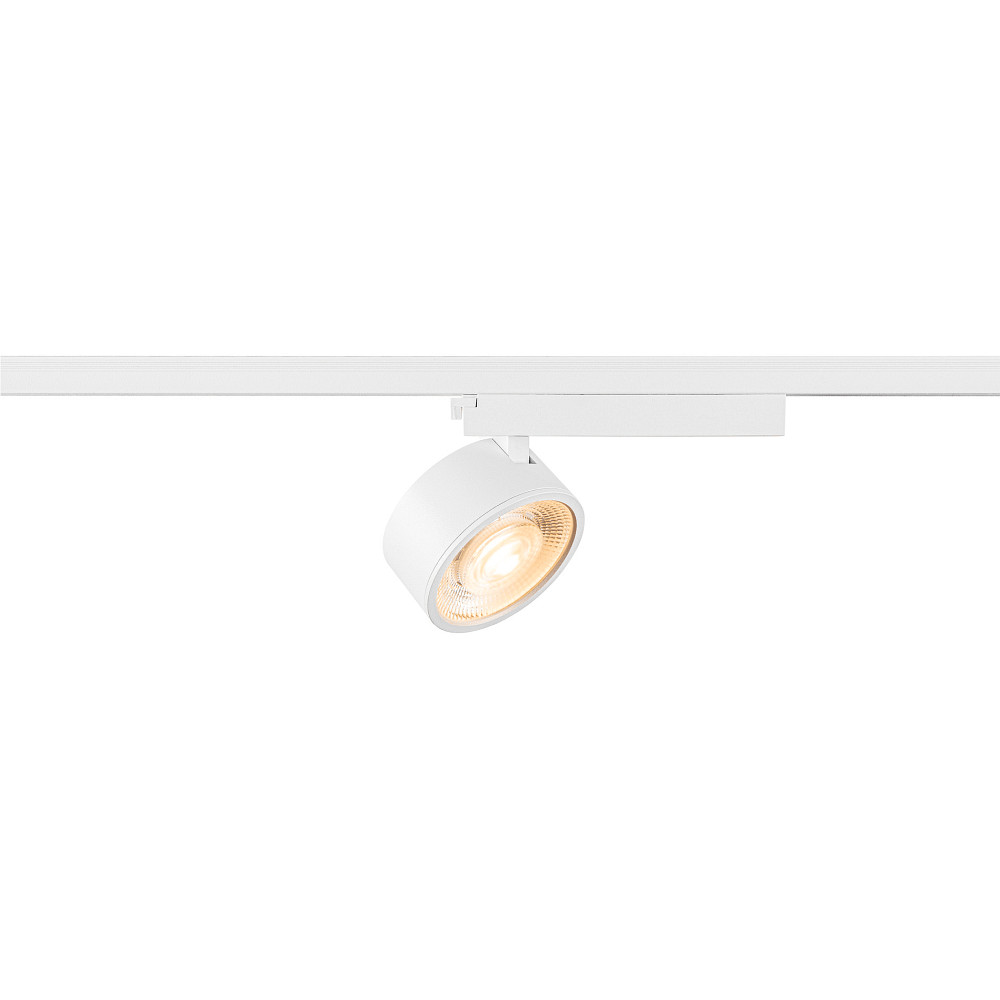

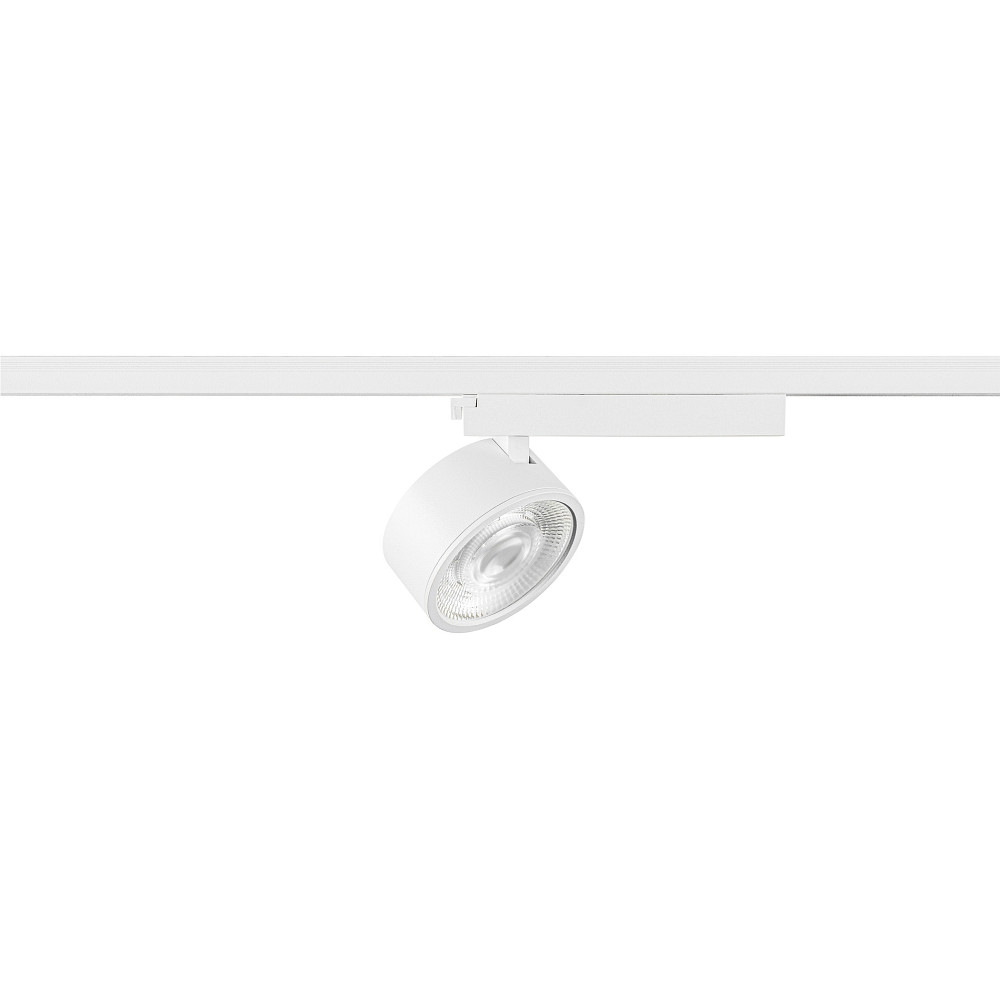

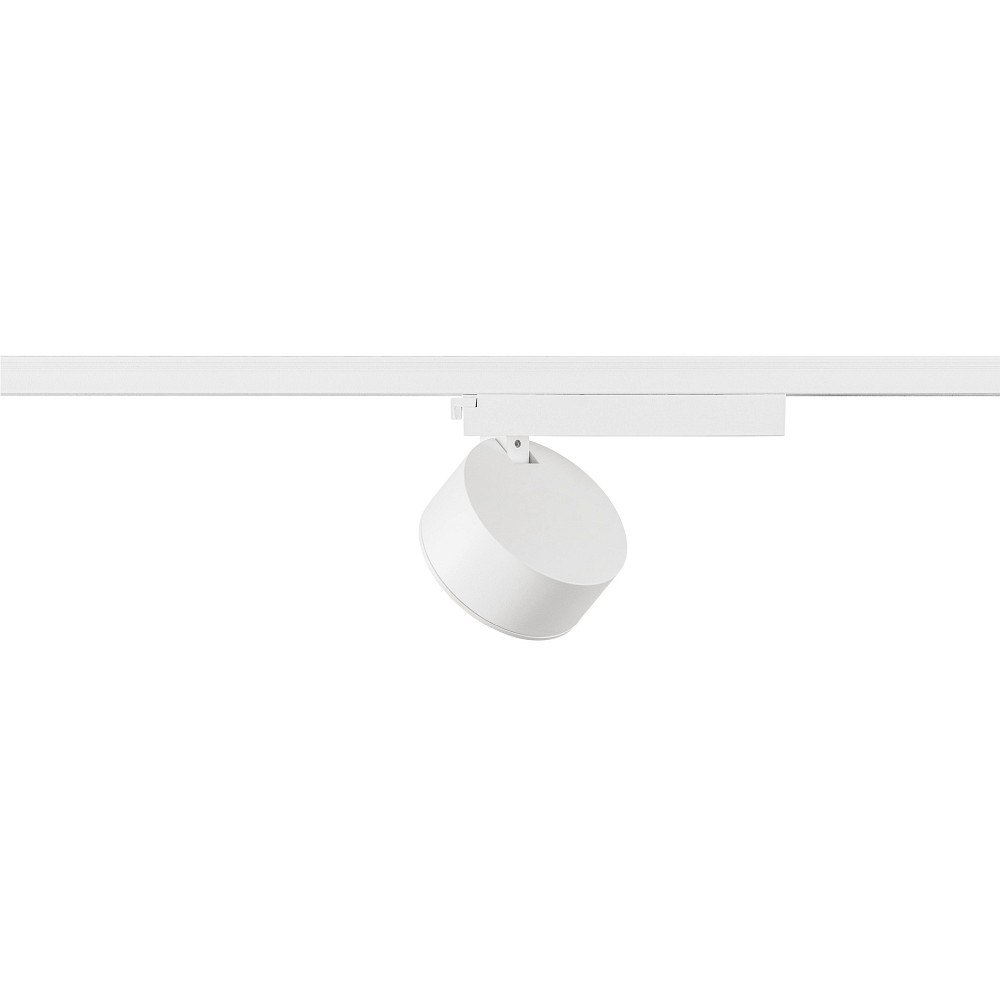

High-Quality LED 1-Phase Spotlight KALU 2.0 PHASE

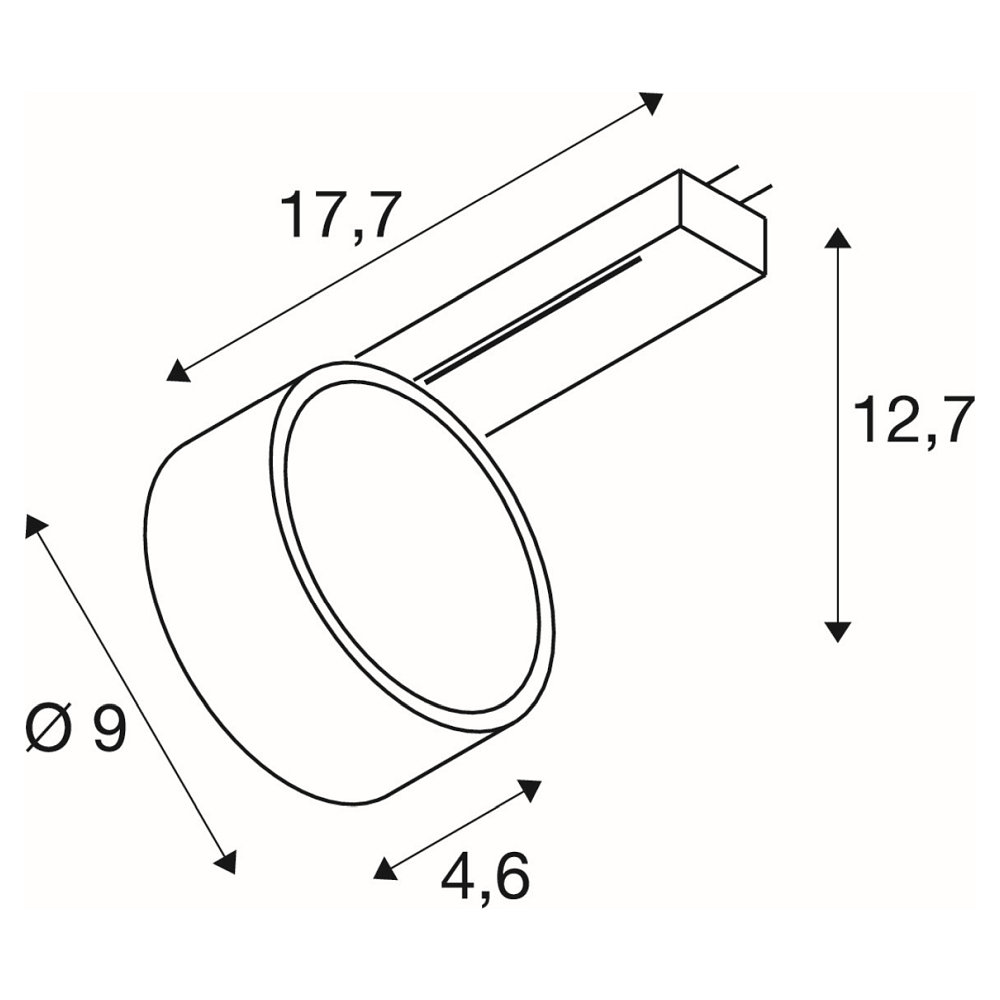

The LED 1-Phase Spotlight KALU 2.0 PHASE from SLV impresses with its modern, cylindrical design and high-quality aluminum construction. With compact dimensions of 17.7 x 9 x 12.7 cm, it is a space-saving and stylish lighting solution. The painted white surface provides an elegant appearance and harmoniously fits into various interior design concepts. The spotlight is specially designed for SLV 1-phase high-voltage track systems, offering easy installation and integration.

Energy Efficiency and Light Quality

The spotlight operates with a power consumption of only 10 watts while achieving a luminous flux of 1400 lumens, which corresponds to a luminous efficacy of 140 lm/W. This ensures bright yet energy-efficient lighting. The color temperature of 2700 Kelvin produces an extra warm white light that creates a pleasant atmosphere. Particularly noteworthy is the high color rendering index (CRI) of over 90 Ra, which provides natural and vivid color reproduction. The average lamp life is an impressive 50,000 hours, minimizing the need for replacement.

Flexibility through Cardanic Mounting and Dimmability

The KALU 2.0 PHASE spotlight is cardanically mounted, meaning the light beam can be both rotated and tilted. This allows optimal alignment of the light cone and precise focusing on desired areas. The standard beam angle is 36 degrees but can be adjusted to 15°, 24°, or 60° with optionally available lenses. Additionally, the spotlight is continuously phase-cut dimmable, enabling flexible regulation of light intensity and creating an individual lighting atmosphere.

Practical Accessories for Individual Customization

Included in the delivery are a suitable driver and a lens that focus the light precisely. For even more individual design, decorative rings in various colors can be purchased separately to visually customize the spotlight. Not included but compatible are dimmers and track systems, which provide a complete lighting system. The power connection is made via a 1-phase track adapter, ensuring easy installation and safe operation.

Reliability and Technical Safety

The spotlight is designed for operation at a voltage of 220-240 V~ and a mains frequency of 50/60 Hz. It withstands ambient temperatures between -20 and +40 degrees Celsius and offers protection class 2 as well as the IP protection rating IP20. Weighing only 0.56 kg, the spotlight is easy to handle. The high number of possible luminaires per circuit breaker (up to 44 with B16 and 89 with C16) allows versatile and powerful lighting planning. Overall, the KALU 2.0 PHASE spotlight offers an efficient, durable, and flexible solution for demanding lighting concepts.
