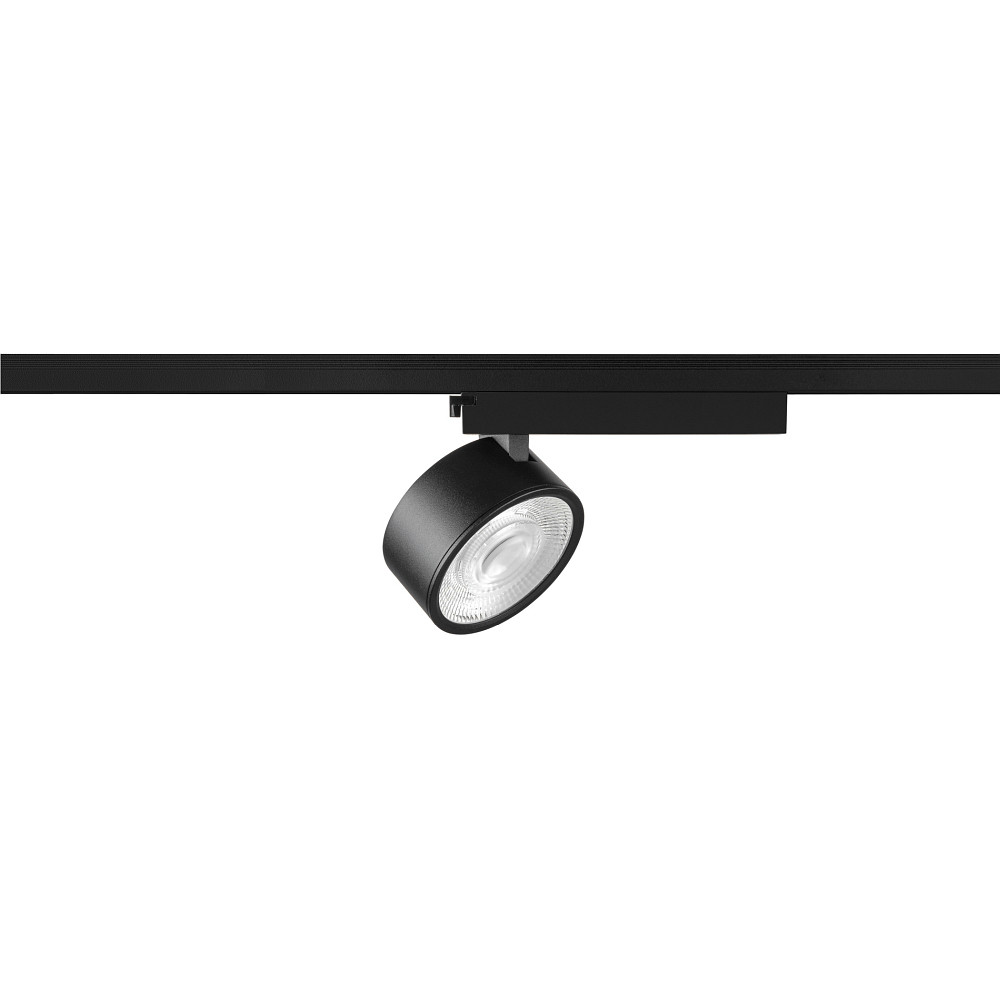

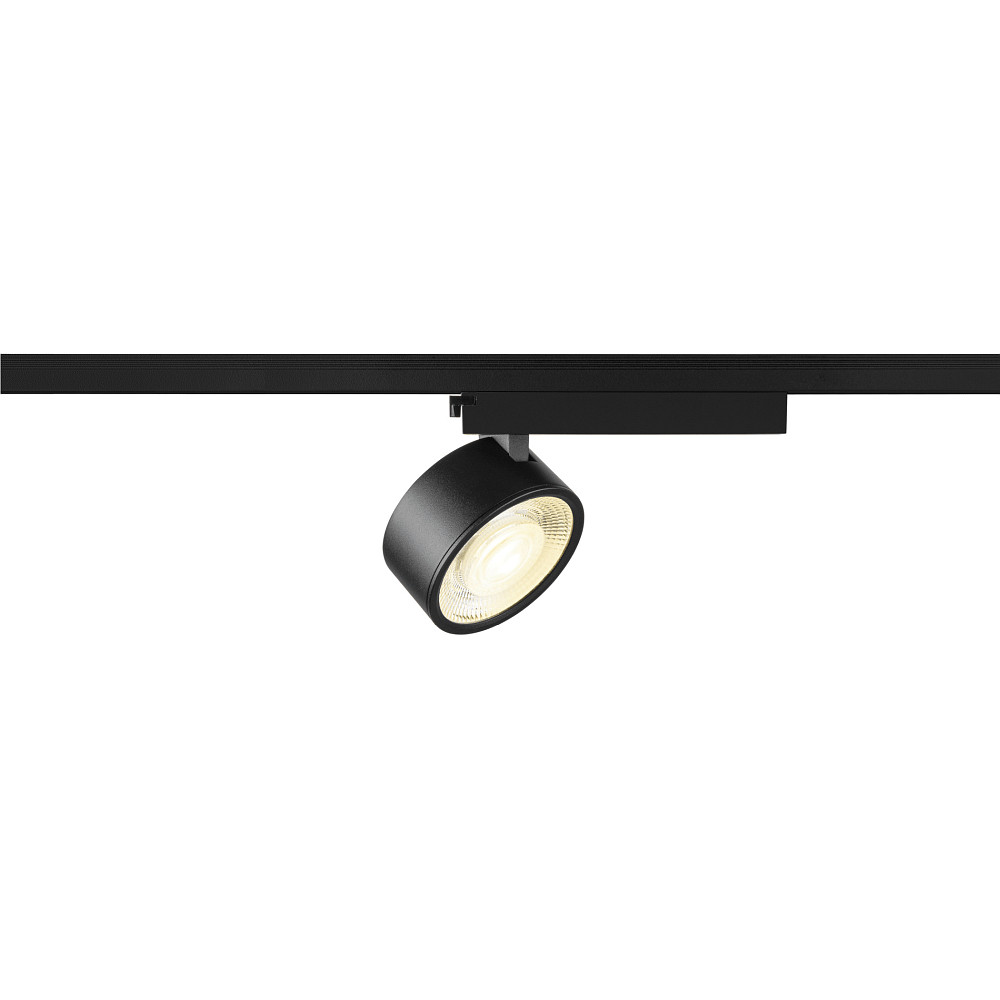

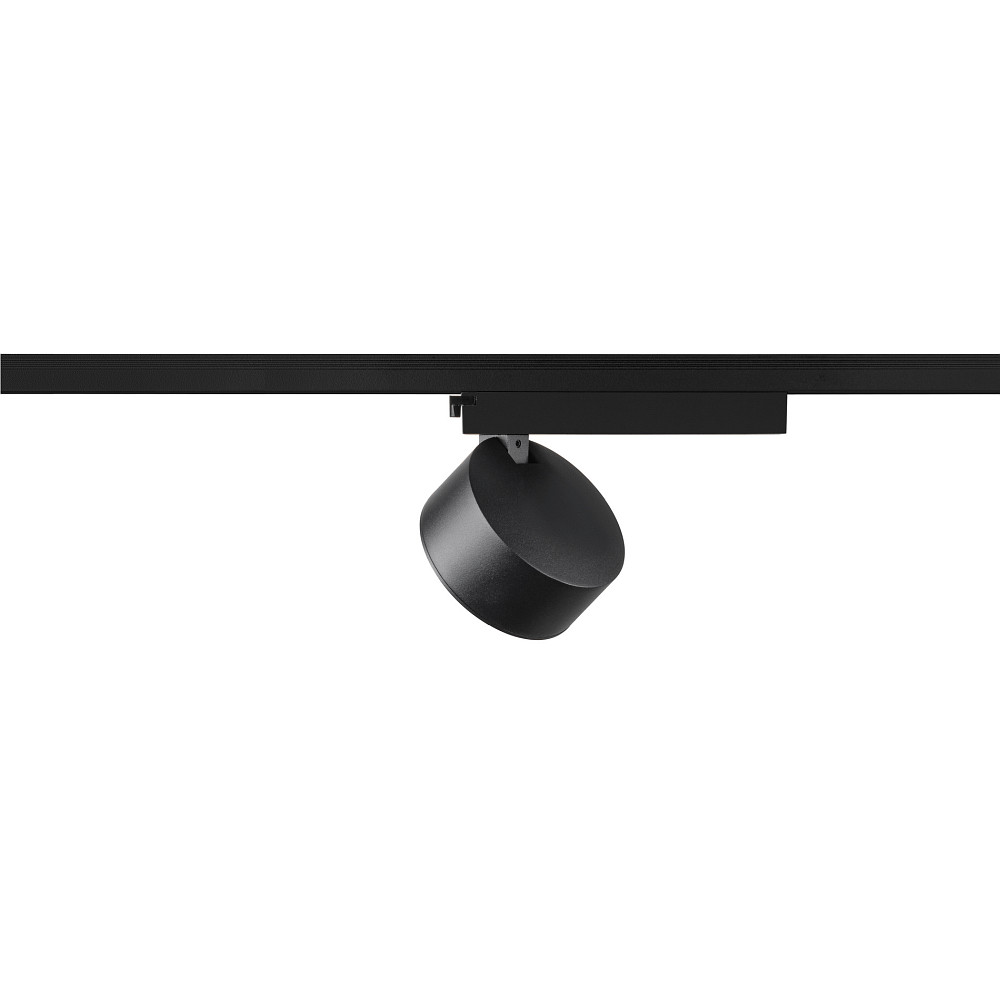

1-phase spot KALU 2.0 PHASE cylindrical, UGR < 19, with lens optics, cardanic swivelling IP20, black, lacquered dimmable

Efficient and High-Quality 1-Phase Spotlight KALU 2.0 PHASE

The LED 1-phase spotlight KALU 2.0 PHASE from SLV impresses with its high quality and efficiency. With a power consumption of only 10 watts, it produces a luminous flux of 1500 lumens, offering an excellent light output of 150 lumens per watt. The flat, cylindrical housing made of painted aluminum ensures a modern and robust design. The sturdy construction guarantees a long service life of up to 50,000 hours, making the spotlight particularly low-maintenance.

Optimal Light Distribution and High Color Rendering

The spotlight features a beam angle of 36 degrees, achieved by an included lens insert. This ensures targeted light distribution, which can be individually adjusted thanks to optionally available lens optics with 15°, 24°, or 60° angles. The light color is neutral white at 4000 Kelvin, providing pleasant and natural illumination. Thanks to a color rendering index (CRI) of over 90, colors are rendered particularly realistically and clearly, making the spotlight ideal for demanding lighting tasks.

Rotatable, Tiltable, and Steplessly Dimmable

For maximum flexibility, the KALU 2.0 PHASE spotlight is mounted on a gimbal, allowing it to be both rotated and tilted. This enables optimal alignment of the light beam to specifically illuminate certain areas or objects. Additionally, the light output is steplessly dimmable via a phase-cut dimmer, which is not included in the scope of delivery. This allows individual adjustment of light intensity to different needs and moods.

Easy Integration and Versatile Accessories

The spotlight is specially designed for 1-phase high-voltage track systems from SLV and comes with a suitable track adapter. The delivery also includes a matching driver and the lens insert. For further customization, colored decorative rings are available separately. Protection class 2 and IP20 rating ensure safe operation under normal conditions.

Compact Dimensions and Technical Details

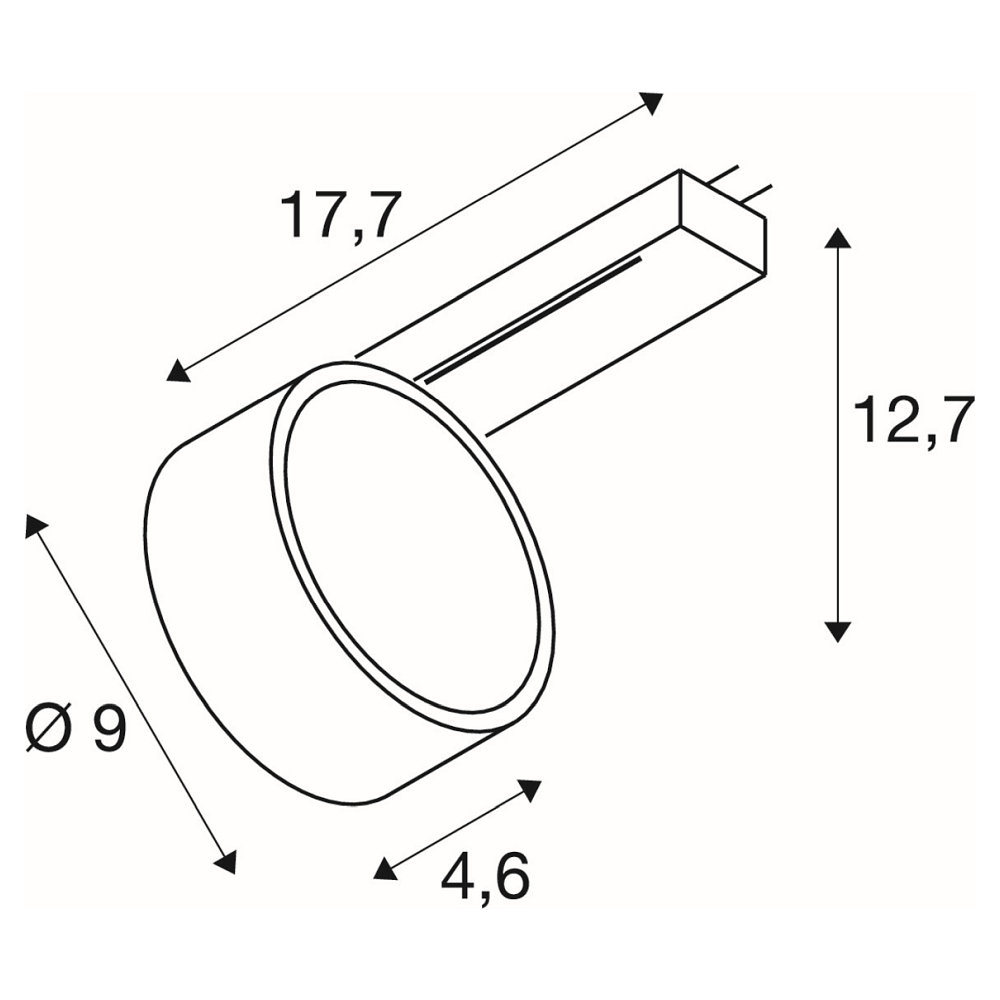

With compact dimensions of 17.7 cm length, 9 cm width, and 12.7 cm height, the spotlight integrates unobtrusively into various lighting systems. The head has a diameter of 9 cm and a length of 4.6 cm. Weighing only 0.56 kg, the spotlight is easy to handle and install. The operating voltage is 220-240 V with a mains frequency of 50/60 Hz. The maximum number of luminaires that can be operated on a B16 circuit breaker is 44, and up to 89 units with a C16 circuit breaker.
