wall and ceiling luminaire SL629 AB PRISM 31W DALI controllable, 5-pole, UGR < 19 IP20, powder coated, white dimmable

Performance in Lighting



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

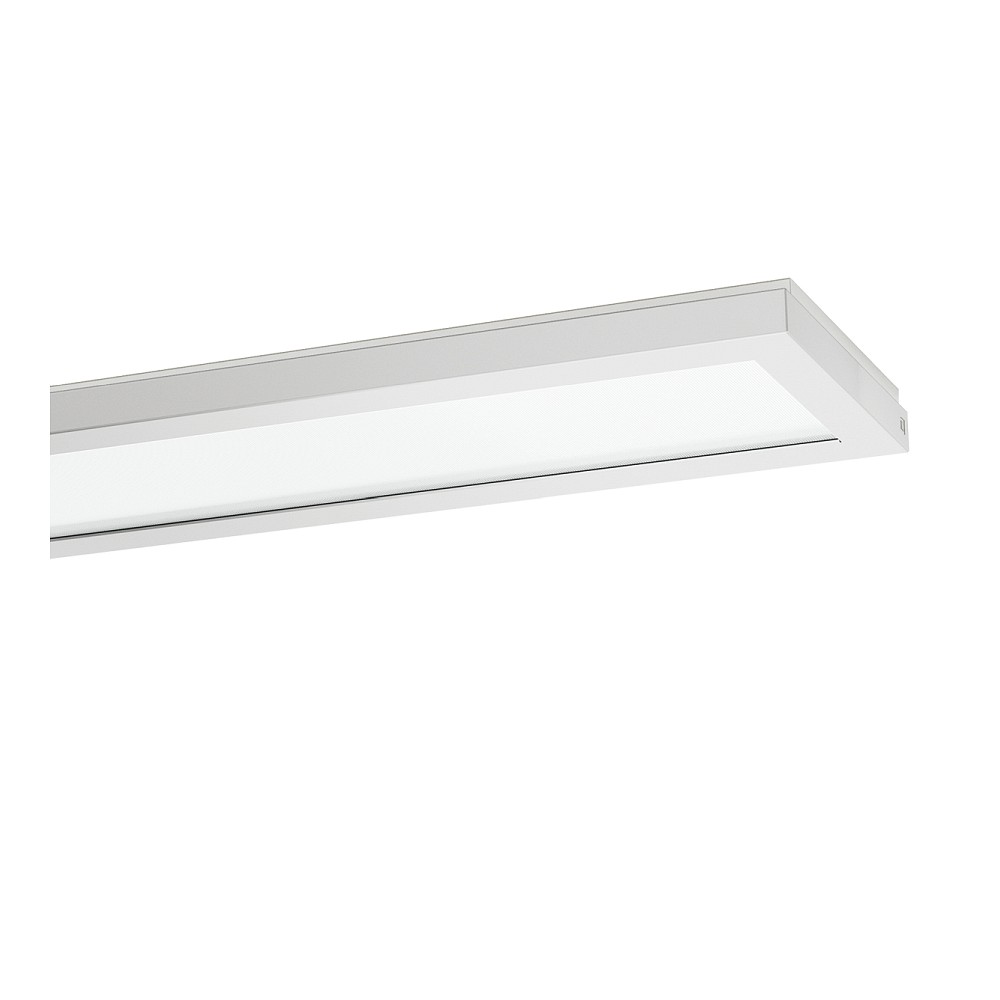

LED Surface Mount Luminaire SL629 AB PRISM, IP20 IK05, 154.4cm

The LED Surface Mount Luminaire SL629 AB PRISM is a high-quality ceiling light specifically designed for indoor use. With dimensions of 154.4 x 27.3 x 5 cm and a weight of 9.727 kg, it is ideal for various rooms and applications.

Prismatic cover for efficient light diffusion

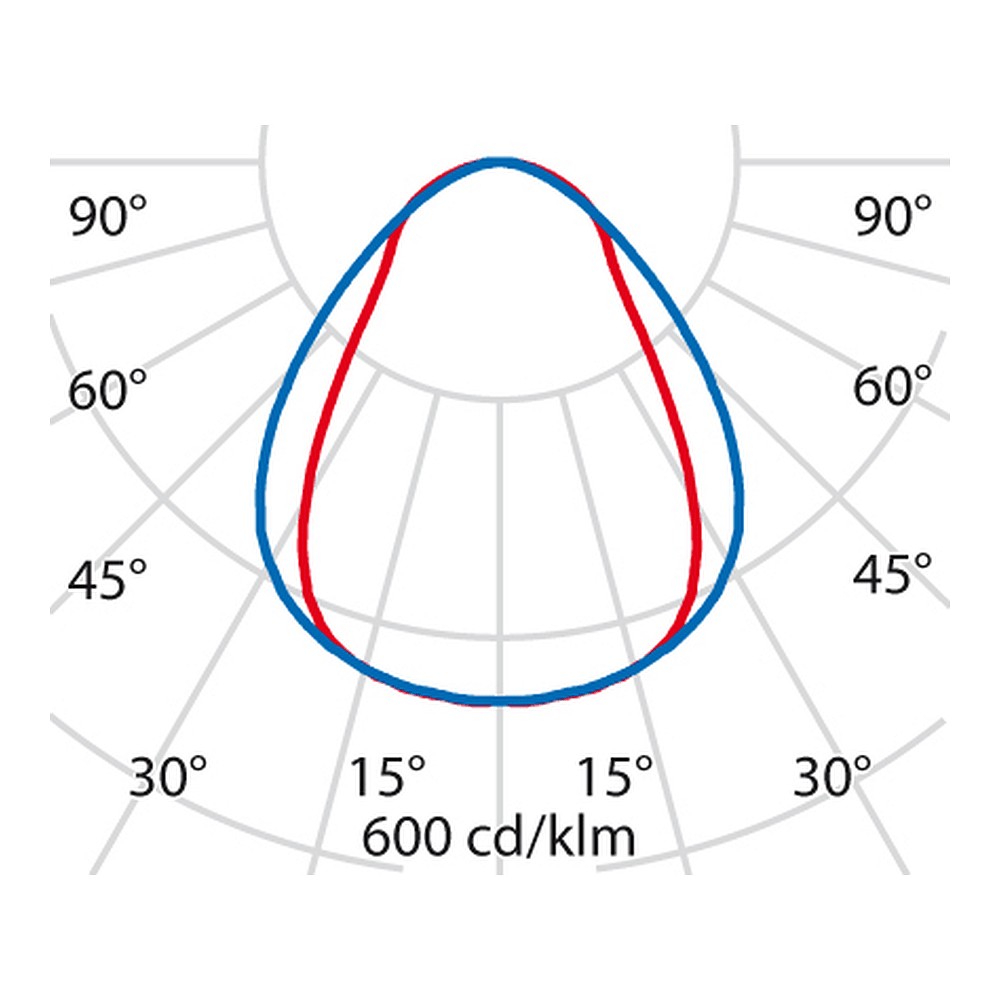

This surface mount luminaire features a prismatic cover that allows for efficient light diffusion. The light distribution is directly downwards, resulting in homogeneous and glare-free light output. This is particularly beneficial for screen workstations.

High energy efficiency and color rendering

With an energy efficiency class of D and a light output of 129lm/W, the LED Surface Mount Luminaire offers high energy efficiency. The color rendering index of 80-89Ra and the color rendering grade of 1B ensure good color rendering and color consistency.

DALI and Push-Dimmer for flexible control

This ceiling light is dimmable and can be controlled either via a light switch or digital DALI building automation systems. The dimmability of DALI and Push-Dimmer allows for flexible and individual adjustment of light intensity.

Versatile application possibilities and accessories

The LED Surface Mount Luminaire SL629 AB PRISM is ideal for use in various rooms and applications. Additional accessories such as dimmers, light band connectors, and operating devices are optionally available, providing additional flexibility during installation.

Article number:
PIL-8629661406410
Purchasing quantity:
1 piece
Brand:
Performance in Lighting
Manufacturer:
Performance in Lighting
Energy efficiency category:
D
Product type:
wall and ceiling luminaire
Energy consumption:
31 kWh/1.000 h
Operating voltage:
220-240 V
Dimmable:
yes
Dimmability:
DALI, push dimmer
Lamp shape:
square
Power frequency:
50/60 Hz
Power consumption:
31 W
Emitting angle:

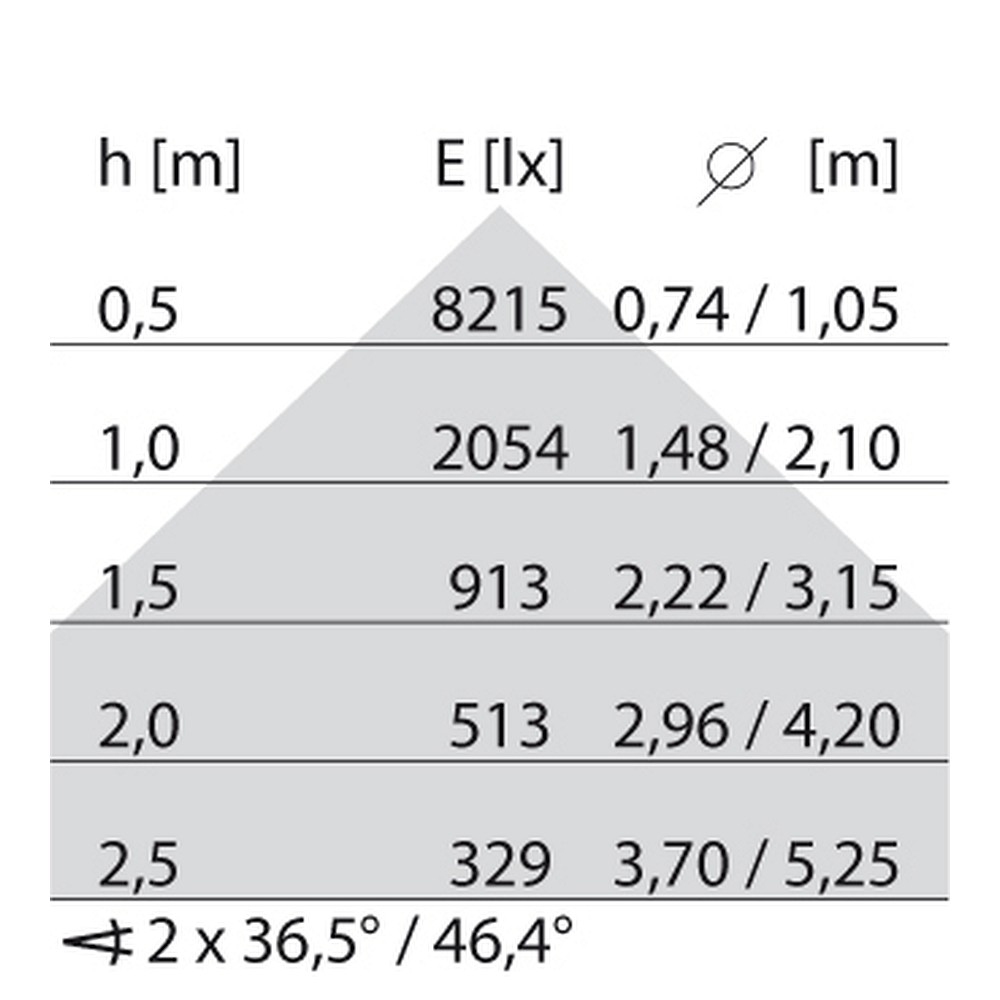

2x 36/45 °
Bulbs in delivery:
yes
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Light colour:
neutral white
Light emission:
symmetriccal
Light flux:
4000 lm
Light yield:
129 lm/W
Nominal current:
129-141 mA
Colour temperature:
4000 K
Average life span of a bulb in hours:
L70/B10: 99800
L80/B10: 50000
L9/B10: 25000 h
Colour rendering index:
80-89 Ra
UGR:
< 19
Colour rendering index:
1B
Colour:
white
powder coated
Material:
die-cast aluminium
plastic
steel sheet
Throughwiring (installation of multiple luminaires in a row) is possible:
no
Dimension:

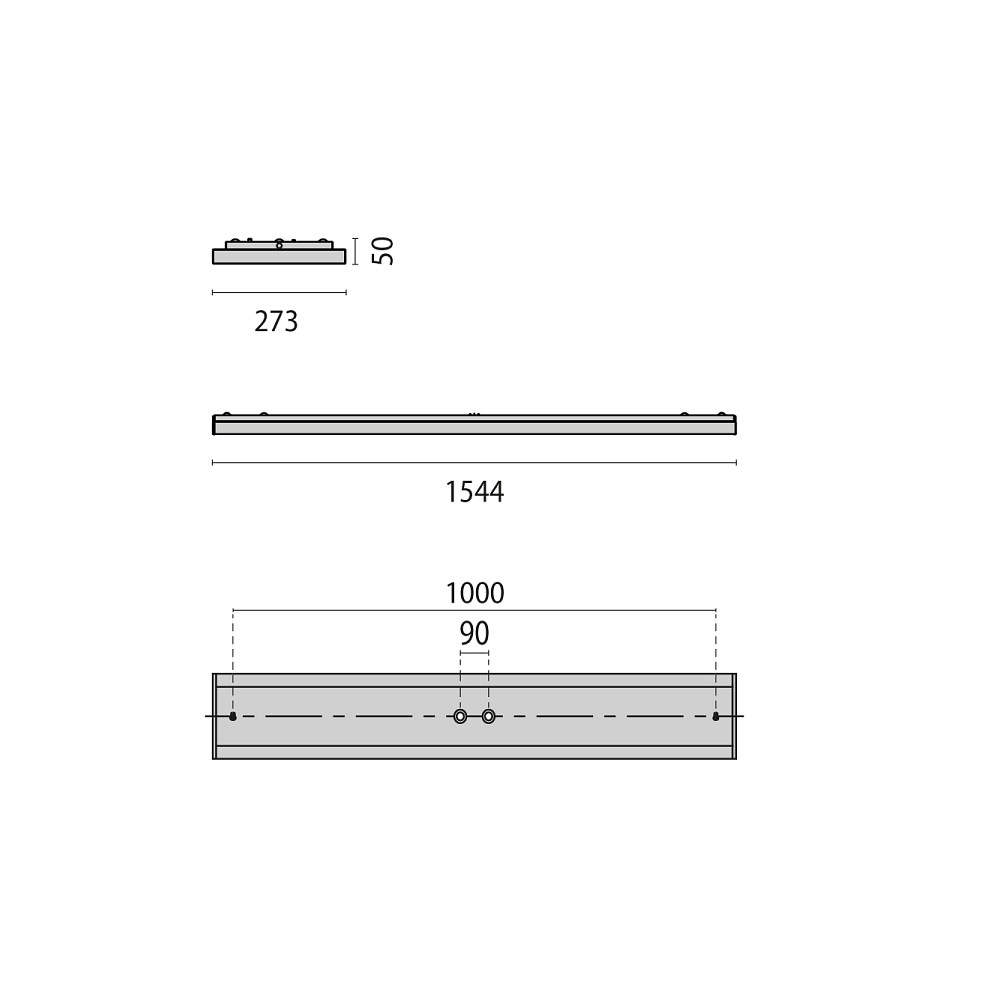

Abmessungen-L∕ W∕ H: 154,4∕ 27,3∕ 5 cm
Weight:
9,727 kg
Plug type:
clamping connection
Mounting:
surfaced mounting
Field of application:
ceiling
IP-protection class:
IP20
Application area:
suitable for indoor use
Accessories:
control gear incl
light band connector excl
dimmer excl
ambient temperature:
+10 ... +40 °C
