wall and ceiling luminaire SL629 AB PRISM 31W DALI controllable, 5-pole, UGR < 19 IP20, grey, powder coated dimmable

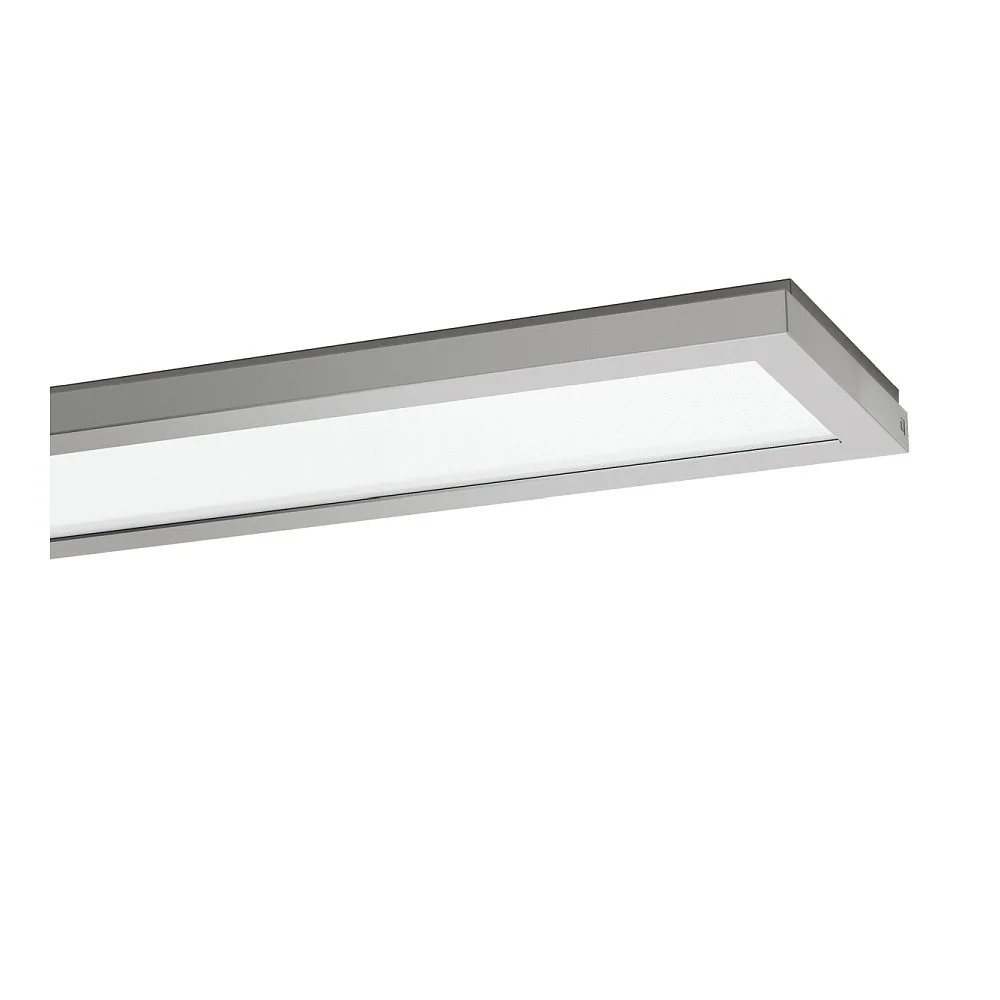

LED Surface-mounted luminaire SL629 AB PRISM

The LED Surface-mounted luminaire SL629 AB PRISM is a high-quality ceiling and wall lighting for indoor use. With a color rendering index of 80-89Ra and a color rendering grade of 1B, it provides excellent light quality. The prismatic cover ensures efficient light diffusion and a homogeneous, direct light output downward.

Technical details

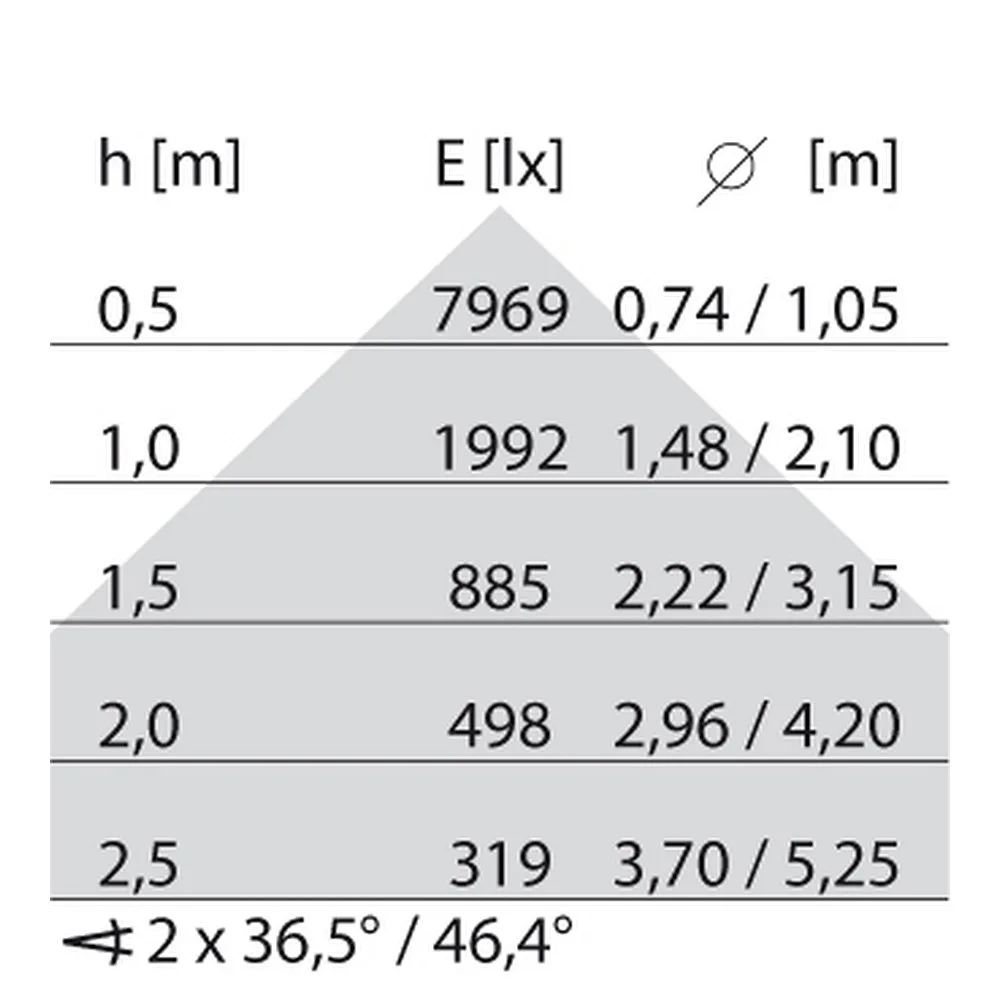

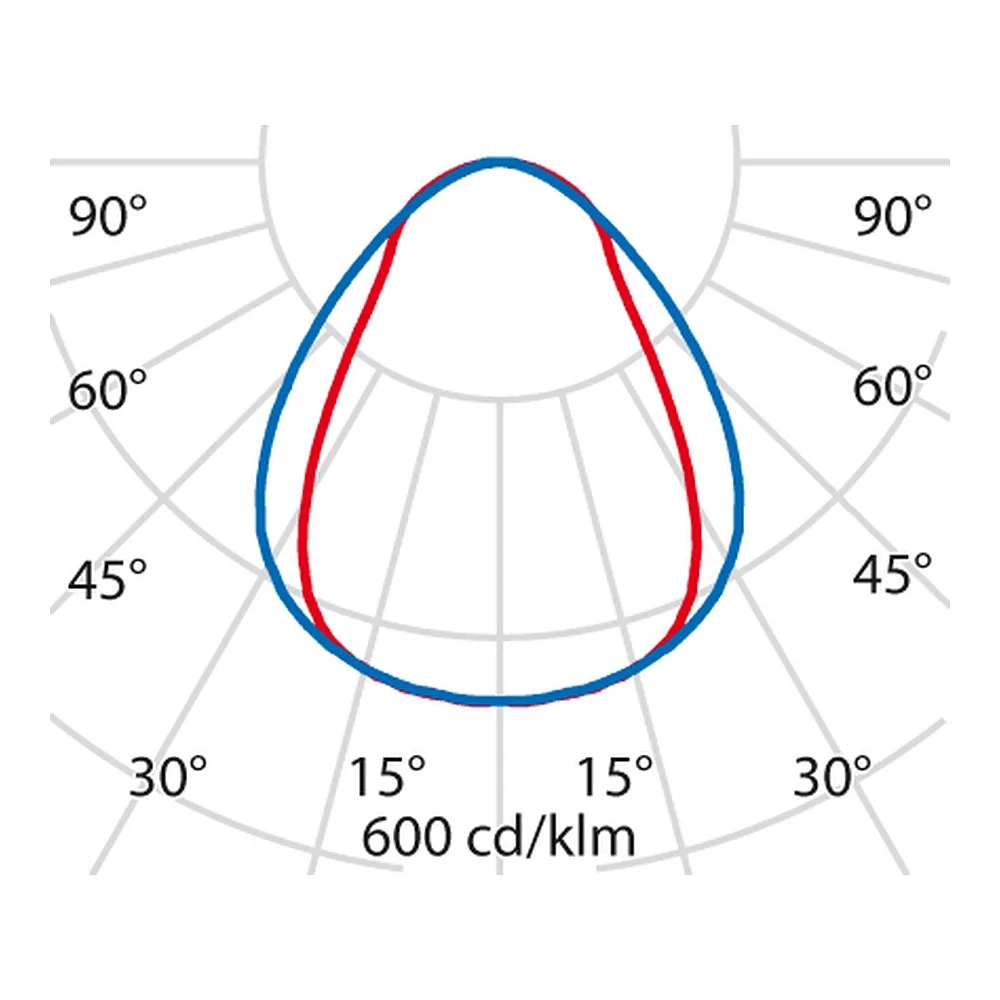

The LED Surface-mounted luminaire has a power consumption of 31W and a luminous flux of 3880lm, which corresponds to a light output of 125lm/W. With a color temperature of 3000K, it produces a pleasant warm white light. The beam angles are 2x 36/45°, allowing for a wide beam light distribution.

Energy efficiency and safety

Thanks to LED technology, the surface-mounted luminaire is very energy-efficient and has an energy consumption of only 31kWh/1,000h. With a lifespan of up to 99800 hours (L70/B10), it is particularly durable. It also meets the requirements for photobiological safety according to EN 62471: RG0 and the glow wire test according to IEC 60695-2-11.

Control options

The LED Surface-mounted luminaire SL629 AB PRISM is switchable and dimmable, either via a light switch or digital DALI building automation systems. It features a sensor module with daylight-dependent light control and motion detector, available on request. The anti-glare according to DIN EN 12464-14 ensures a pleasant light atmosphere.

Material and design

The luminaire is made of high-quality die-cast aluminum, plastic, and steel sheet. With dimensions of 154.4 x 27.3 x 5 cm and a weight of 9.727kg, it has a square design. The powder-coated gray color gives it a modern and timeless appearance that fits various interior styles.
