under-cabinet luminaire S-PAD F incl. driver, set of 3, with touch dimmer IP20

3rd Set LED Under Cabinet Light S-PAD F

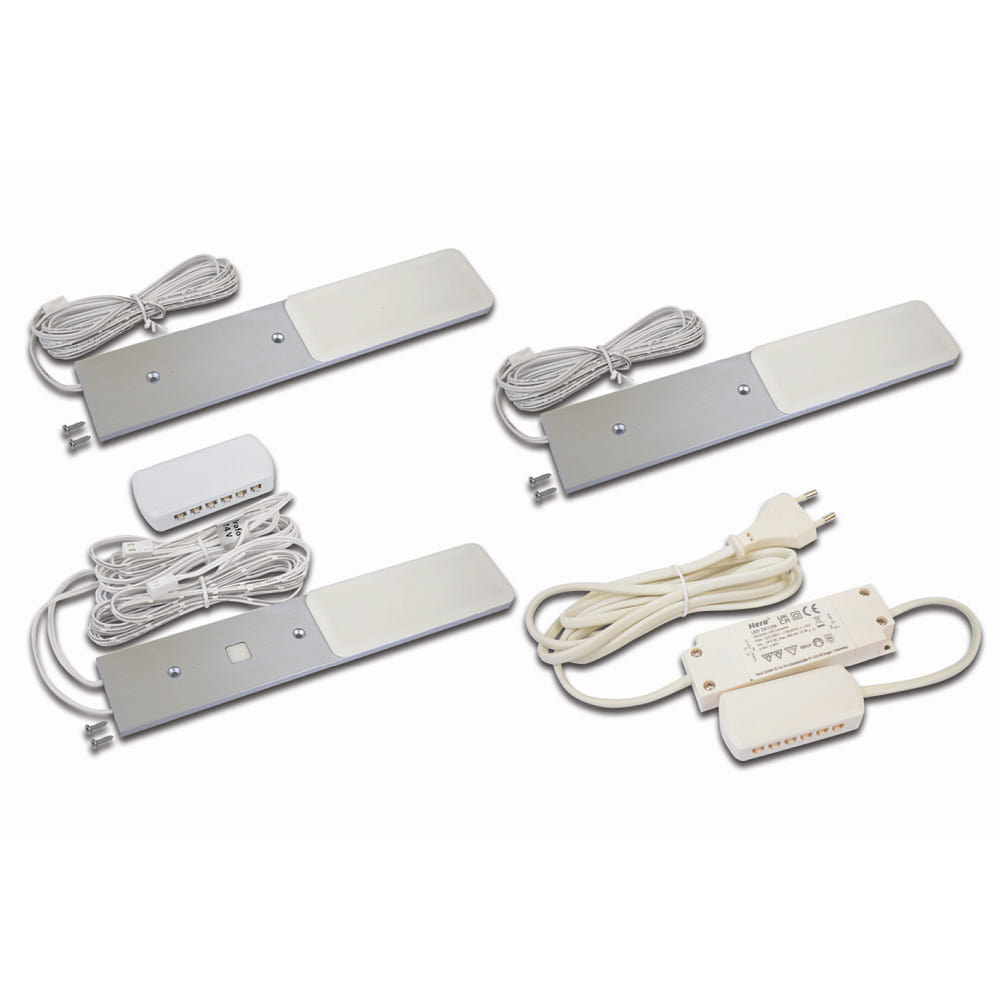

The 3rd Set LED Under Cabinet Light S-PAD F includes everything you need for easy installation. The set includes 2 lights, a touch dimmer, a splitter, an LED power supply with Euro plug cable, and all necessary connection cables. With a super flat design, this under cabinet light provides dimmable, homogeneous surface light.

Technical Data

The LED under cabinet light has an energy consumption of 9kWh / 1,000 h and a power consumption of 9W. The beam angle is 115° and the color temperature is 4000K. With a color rendering index of >90Ra and a light output of 90lm/W, this light offers excellent color rendering and efficiency.

Connection and Operation

Thanks to the integrated touch dimmer, the light output can be continuously adjusted. The delivery includes a 12-way splitter, which allows you to replace the power supply with a more powerful model if needed. After a power cut, the previous dimming state is automatically restored.

Design and Installation

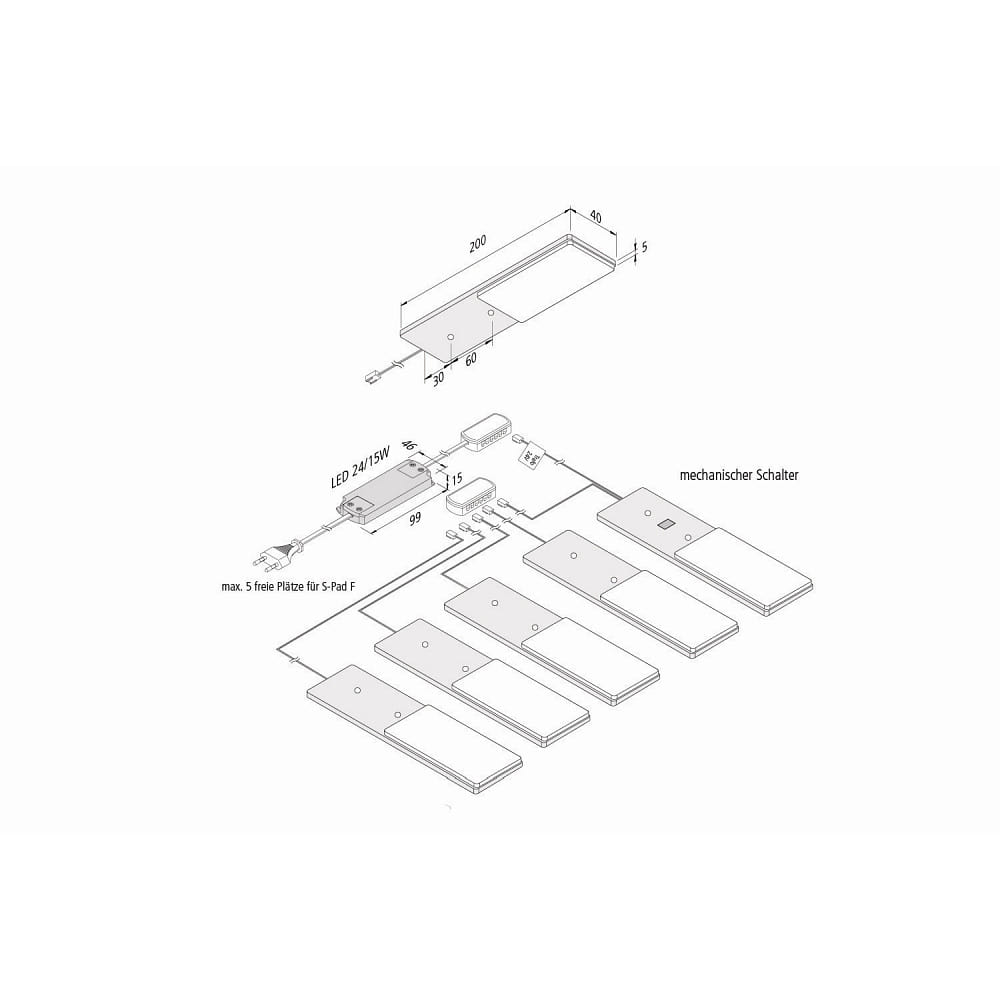

This under cabinet light is available in black and anodized aluminum and has an extremely wide beam distribution. It is mounted with 3x13mm TX10 countersunk screws, and a cutout with a diameter of Ø 8mm is provided for invisible cable routing. The conductor cross-section is 0.21mm².

Additional Information

The LED power supply is voltage-controlled and easily replaceable thanks to plug connections. The color consistency is very high, with extremely low deviations in light color when using multiple lights of the same type. This under cabinet light offers easy installation, high-quality lighting, and versatile applications.
