under-cabinet luminaire S-PAD F incl. driver, set of 2, with touch dimmer IP20

2er Set LED Under Cabinet Light S-PAD F

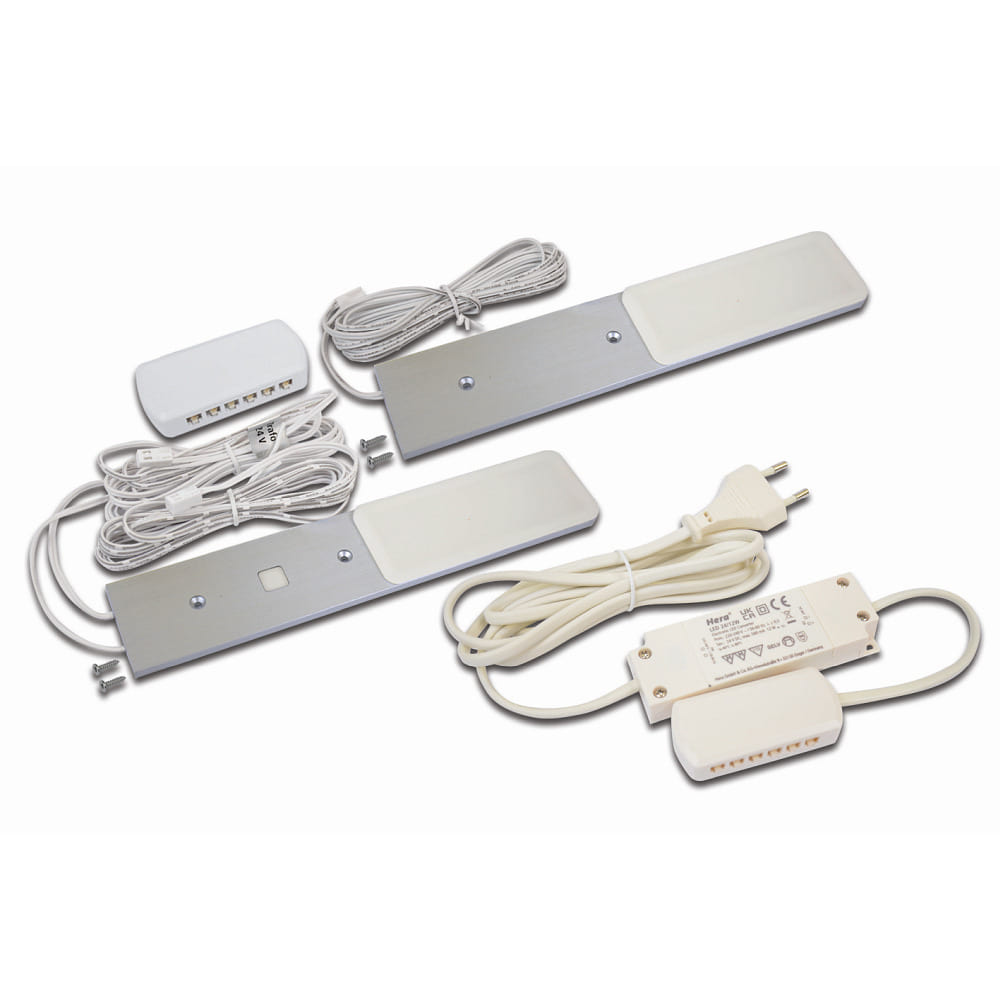

The 2-piece set LED under cabinet light S-PAD F is the ideal solution for efficient lighting in your home. It includes two lights with an integrated touch dimmer, a distributor, and an LED power supply with a Euro plug cable. With a size of 20x4x0.5 cm, this super flat under cabinet light fits perfectly in any environment and provides dimmable, homogeneous surface light.

Technical Details

The LED under cabinet light has a power consumption of 6W and a luminous flux of 270lm each. With a beam angle of 115°, it provides extremely wide-angle lighting. The integrated touch dimmer allows for stepless adjustment of the luminous flux. The power supply operates with a safe 24V DC low voltage DC and is voltage-controlled.

Accessories and Functions

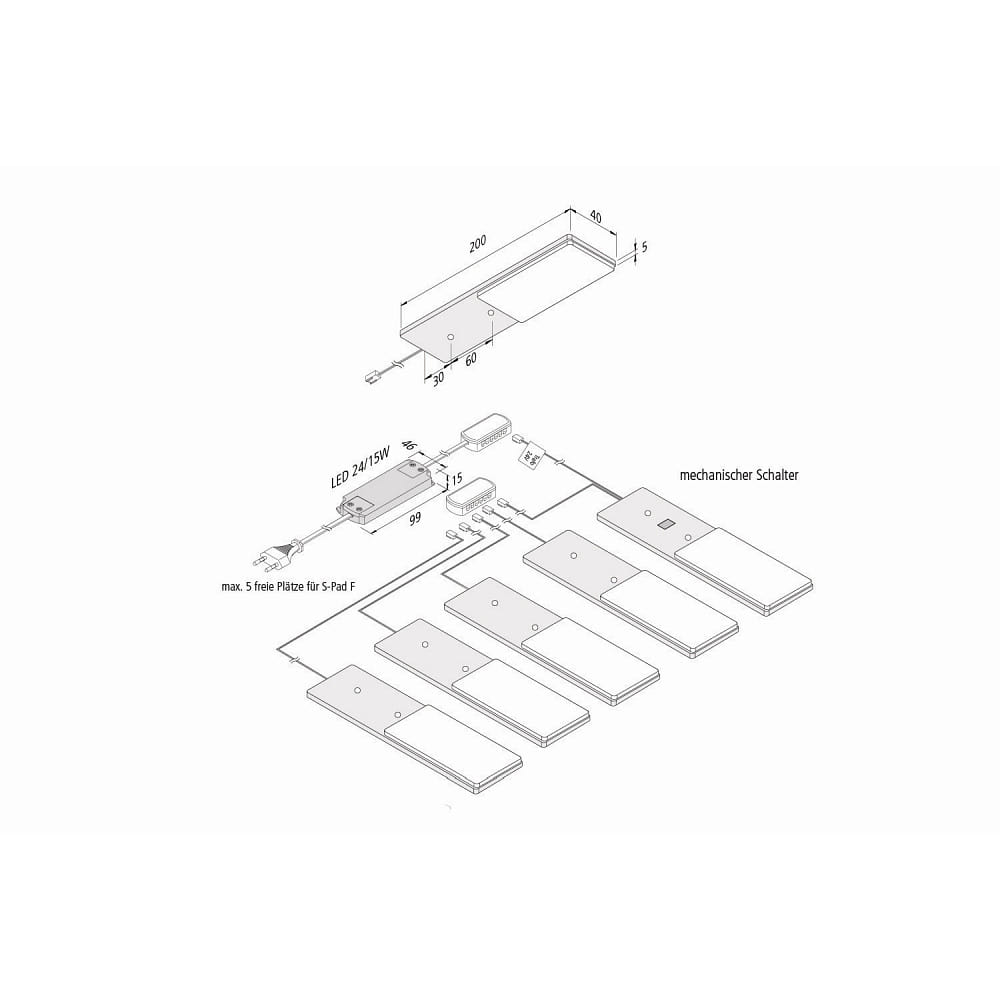

The set includes all necessary connection cables as well as a 12-way distributor. Thanks to the memory function, the previous dimming state is restored after a power cut. If necessary, the power supply unit can be replaced with a more powerful model. Wiring is done by termination, and secure installation is achieved with 3x13mm TX10 countersunk screws.

Energy Efficiency and Color Rendering

With an energy efficiency class F and an energy consumption of 6kWh/1,000 h, the LED under cabinet light S-PAD F is an environmentally friendly choice. The color rendering index of >90Ra guarantees a true representation of colors. The color temperature of 4000K provides pleasant, neutral white light in your living space.

Applications and Installation

The under cabinet light is ideal for use in kitchens, cabinets, shelves, or display cases. With an IP protection rating of IP20, it is protected against dust, allowing it to be used in dry indoor spaces. Installation is done using an Ø 8mm cutout for invisible cable routing. The light is available in Black and Anodized Aluminum colors and can be expanded with additional sets or individual components.
