recessed luminaire WALL IF with sensor, lateral light direction, with diffuser IP20, white 1,8W 90lm 3000K 120° 120° CRI 80

LED Recessed Wall Light WALL IF, IP20, with Sensor + Diffuser, square, for Ø 68mm boxes

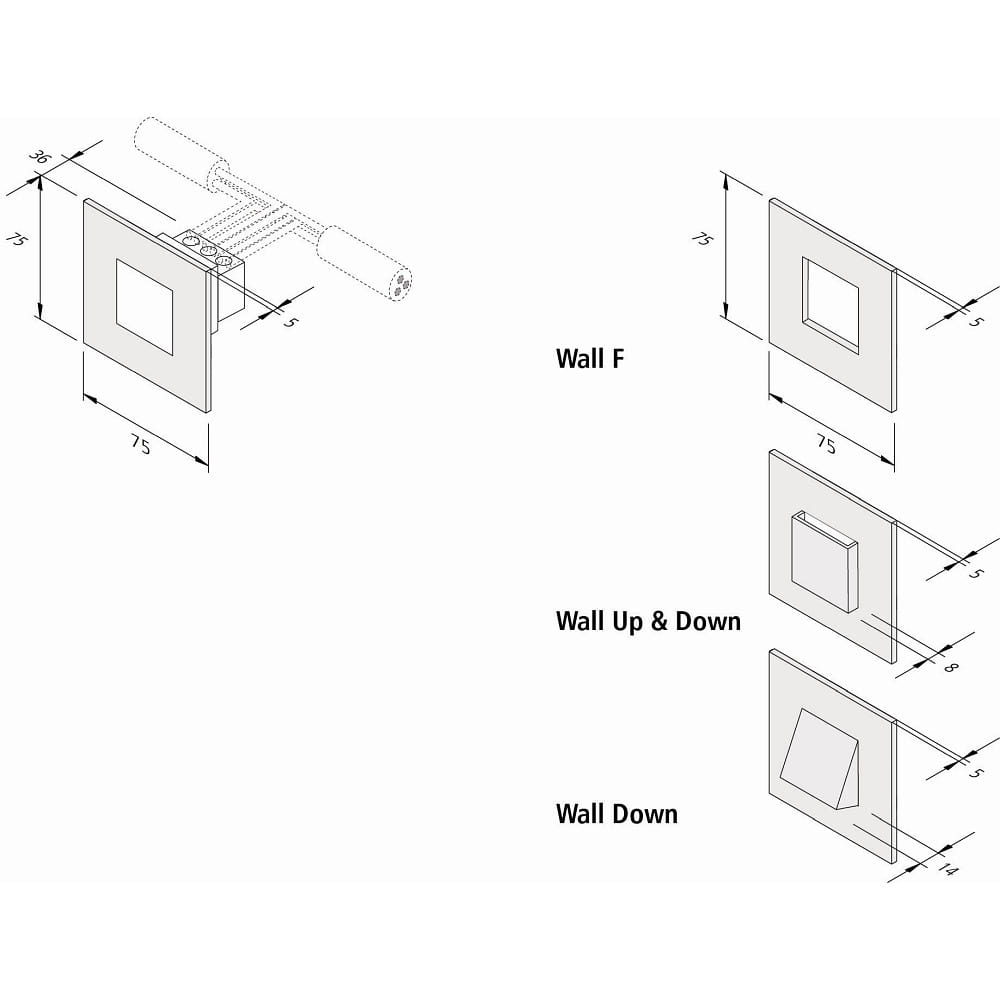

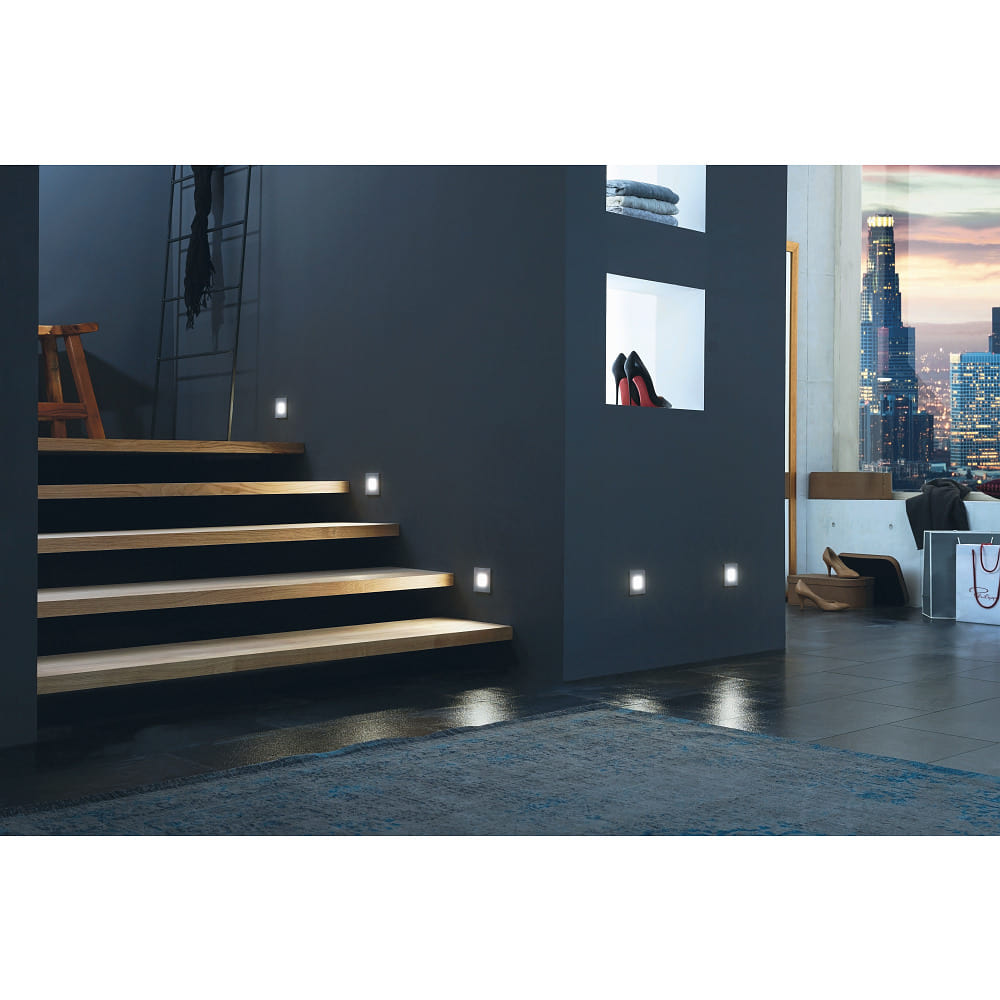

The LED recessed wall light WALL IF is a flat recessed light specifically designed for illuminating stairs. With dimensions of 7.5 x 7.5 x 4.1 cm, it fits perfectly into standard flush-mounted boxes and cavity wall boxes with a diameter of 68 mm. The version with lateral emission provides direct, homogeneous light output through the opal white diffuser.

Technical Details

The LED recessed wall light has an energy consumption of 2kWh/1,000 h and a power consumption of 1.8W. With a luminous flux of 90lm and a light output of 50lm/W, it offers pleasant lighting. The color temperature is 3000K and the color rendering index is 80Ra. The average lamp lifespan is 60,000 hours.

Accessories and Installation

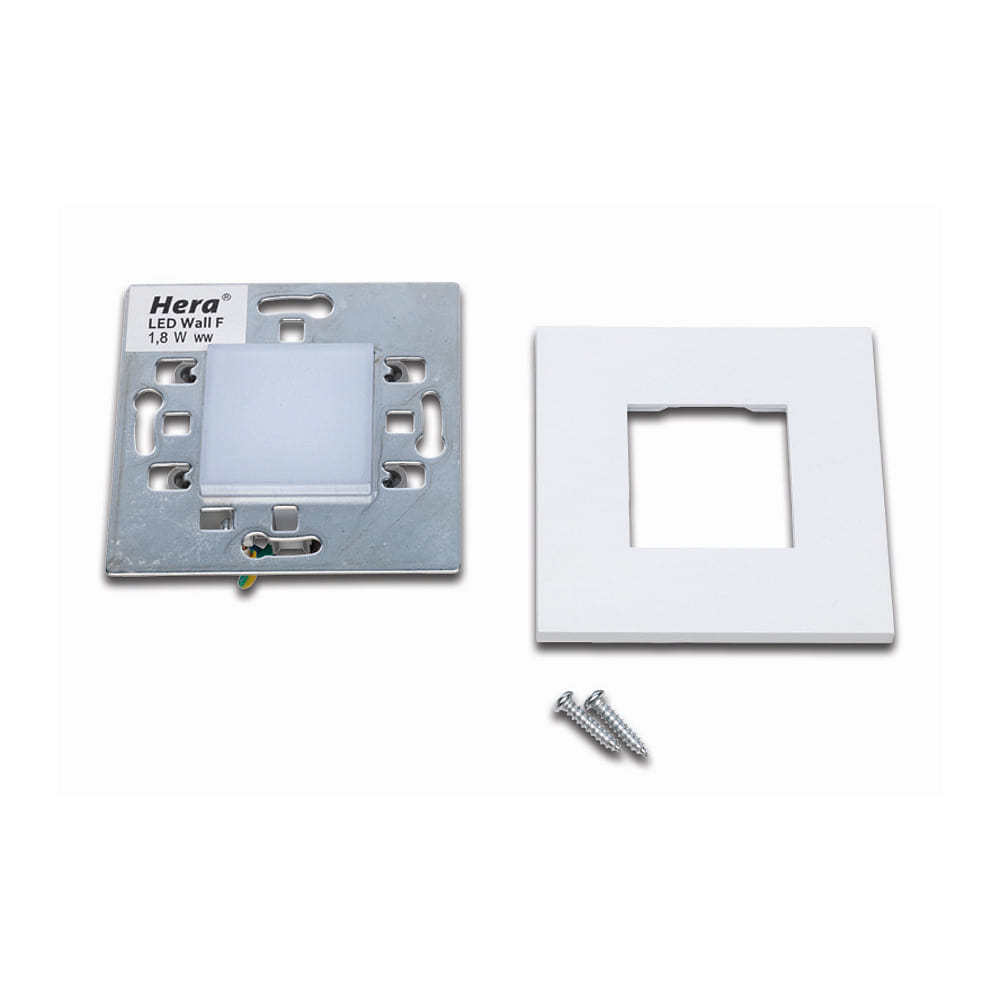

The delivery includes cover, diffuser, through-wiring, driver, and a 3-pole connection terminal. The LED recessed wall light is easy to install and can be exchanged with different covers if needed. The covers are available separately upon request.

Further Information

Thanks to the high-quality Single-Bin LED technology, the LED recessed wall light offers stable color consistency. The color consistency (MacAdam Ellipse) is 3 SDCM. The light is available in various versions and is ideal for use in stairs, corridors, and other areas. With preparation using a 3-pole connection terminal, through-wiring multiple lights per line is easily possible.

Safety and Efficiency

The LED recessed wall light WALL IF has an IP protection rating of IP20 and belongs to protection class 1. With a weight of only 0.07 kg and an operating voltage of 220-240V~, it is energy-efficient and safe to use. The energy efficiency class G and color rendering stage 1B underline the high quality and performance of this recessed light.
