recessed luminaire Raster Line IP20, dimmable 30W 1950lm 3000K 30° 30° CRI >90

ISOLED


G
Product data sheet

189,90 EUR

Free of shipping costs within Germany, abroad excl. Shipping costs / incl. 19 % VAT
Recommended retail price: 322,85 EUR

You save 41,2 %

Shipping time: 7-10 days

Product no.: ISO-113849
EAN: 9009377065101
In stock: 50


We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

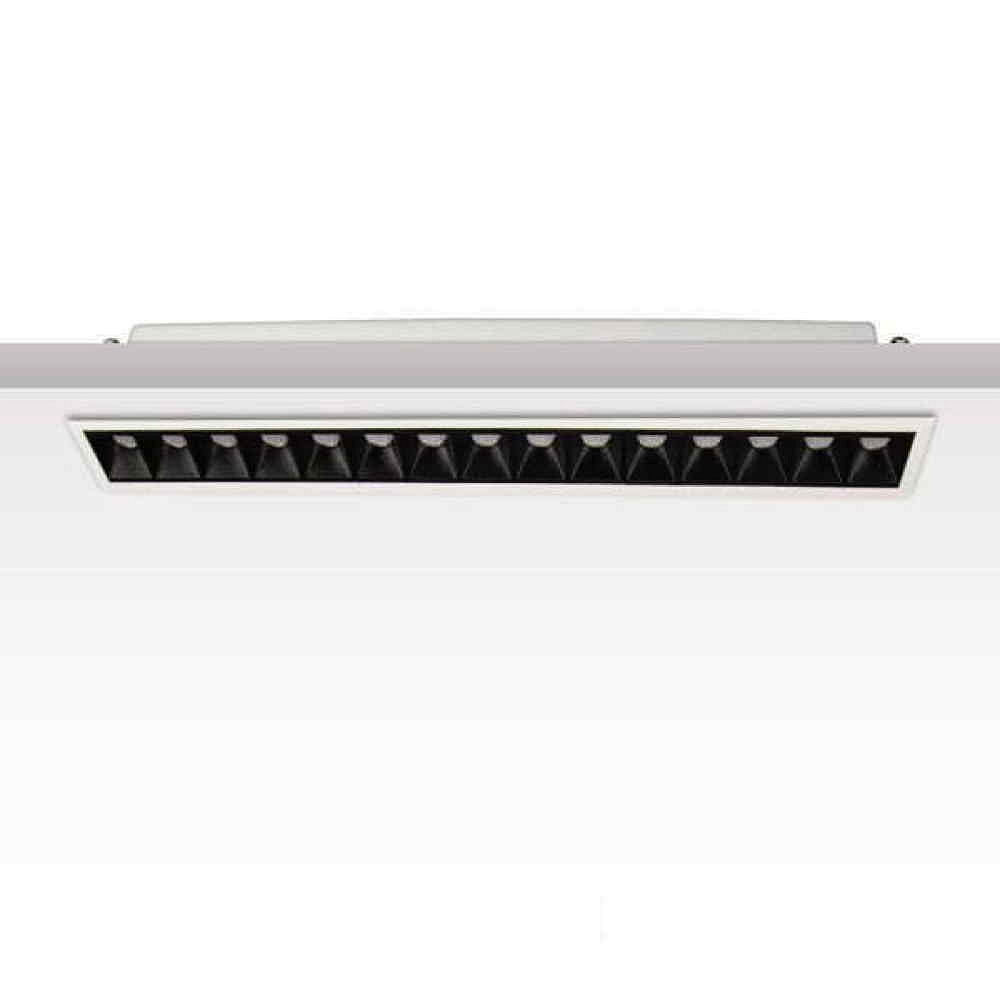

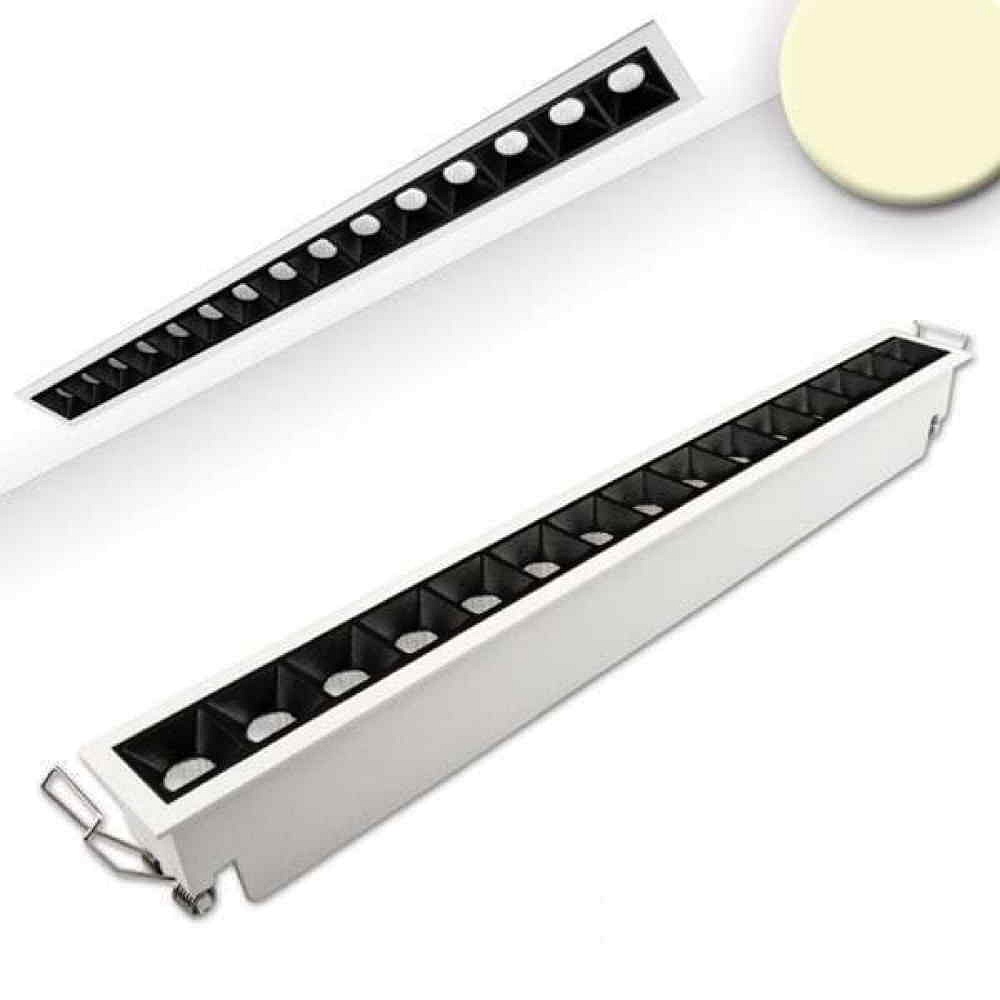

LED Recessed Light Raster Line white/black

The LED Recessed Light Raster Line in white/black by the brand ISOLED is a high-quality product that impresses with a power consumption of 30W and a warm white luminous flux of 1950lm. With a color rendering index of over 90Ra, this recessed light provides natural and pleasant lighting in any room.

Technical Details

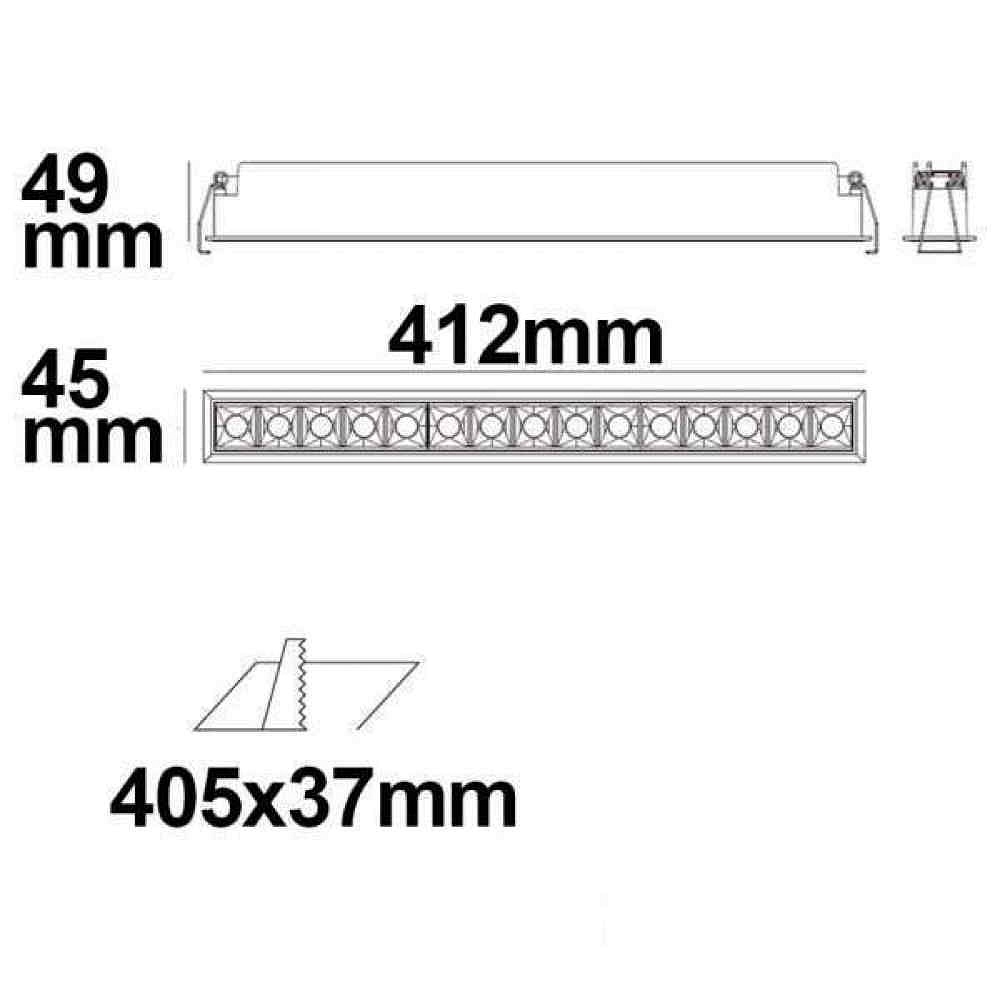

The recessed light has a size of 41.5 x 4.5 x 4.9 cm and weighs 0.785kg. The beam angle is 30° and the installation depth is 4.6cm. The IP protection class is IP20, which means that the luminaire is protected against dust and touch. In addition, the average lamp lifespan is 30000 hours.

Dimmable and Energy Efficient

The LED Recessed Light Raster Line is dimmable and can therefore be individually adjusted to the desired light intensity. Dimming is done via phase cut or TRIAC. With an energy efficiency class G and a start time of only 0.1 seconds, this recessed light is also ecological and efficient in operation.

Practical Accessories Included

The transformer is already included in the scope of delivery, so the LED Recessed Light Raster Line is ready for use immediately. The installation opening has a rectangular shape with a length of 40.3cm and a width of 3.7cm. The ambient temperature should be between -20° and 40°C for optimal operation.

More Information and EPREL No.

Additional details about the LED Recessed Light Raster Line include the apparent power of 33 VA and the color temperature of 3000K. The EPREL No. is 806602. With this high-quality recessed light, you will not only receive a durable and energy-efficient lighting solution, but also a stylish design for any room.

Article number:
ISO-113849
Purchasing quantity:
1 piece
Brand:
ISOLED
Manufacturer:
ISOLED
Energy efficiency category:
G
EPREL No:
806602
Product type:
recessed luminaire
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge, TRIAC
Power consumption:
30 W
Emitting angle:
30 °
Bulbs in delivery:
yes
Light flux:
1950 lm

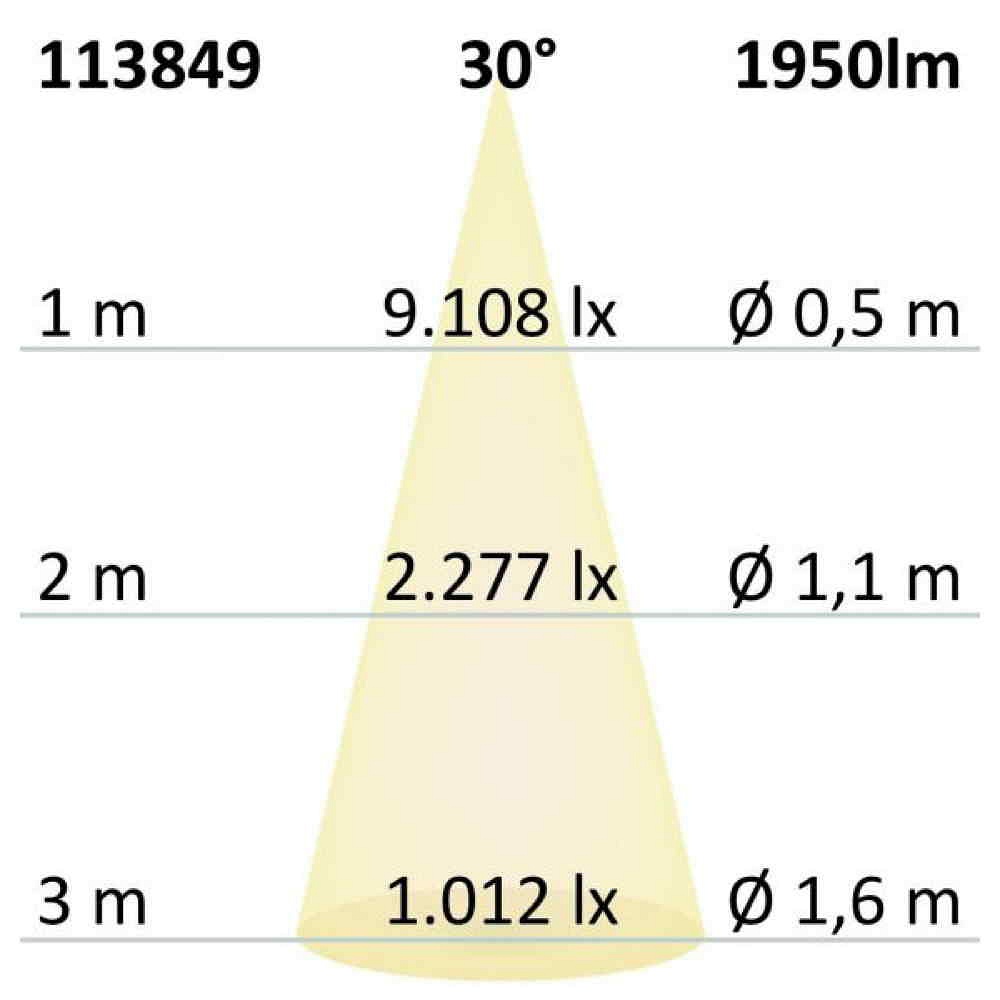

Light intensity:
9108 cd
Colour temperature:
3000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
>90 Ra
Fitting depth:
4,6 cm
Fitting opening square/rectangular width:
40,3 cm
Fitting opening square/rectangular length:
3,7 cm
Dimension:
L∕ W∕ H: 41,5∕ 4,5∕ 4,9 cm
Weight:
0,785 kg
IP-protection class:
IP20
Accessories:
transformer incl
ambient temperature:
-20° - 40° °C
