Recessed LED spot SR 68-LED, Set (incl. transformer), IP44, 230/350/700mA, CRi>90, dimmable, 7.5W 3000K 800lm 30°, white

Hera



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Recessed Spotlight SR 68-LED Set

The LED Recessed Spotlight SR 68-LED Set from Hera is a high-quality product that comes with a transformer. With a constant current of 230/350/700mA and a color rendering index of over 90 (CRI>90), this recessed spotlight offers excellent light quality. It is also dimmable to adjust the brightness as needed.

Design and Application

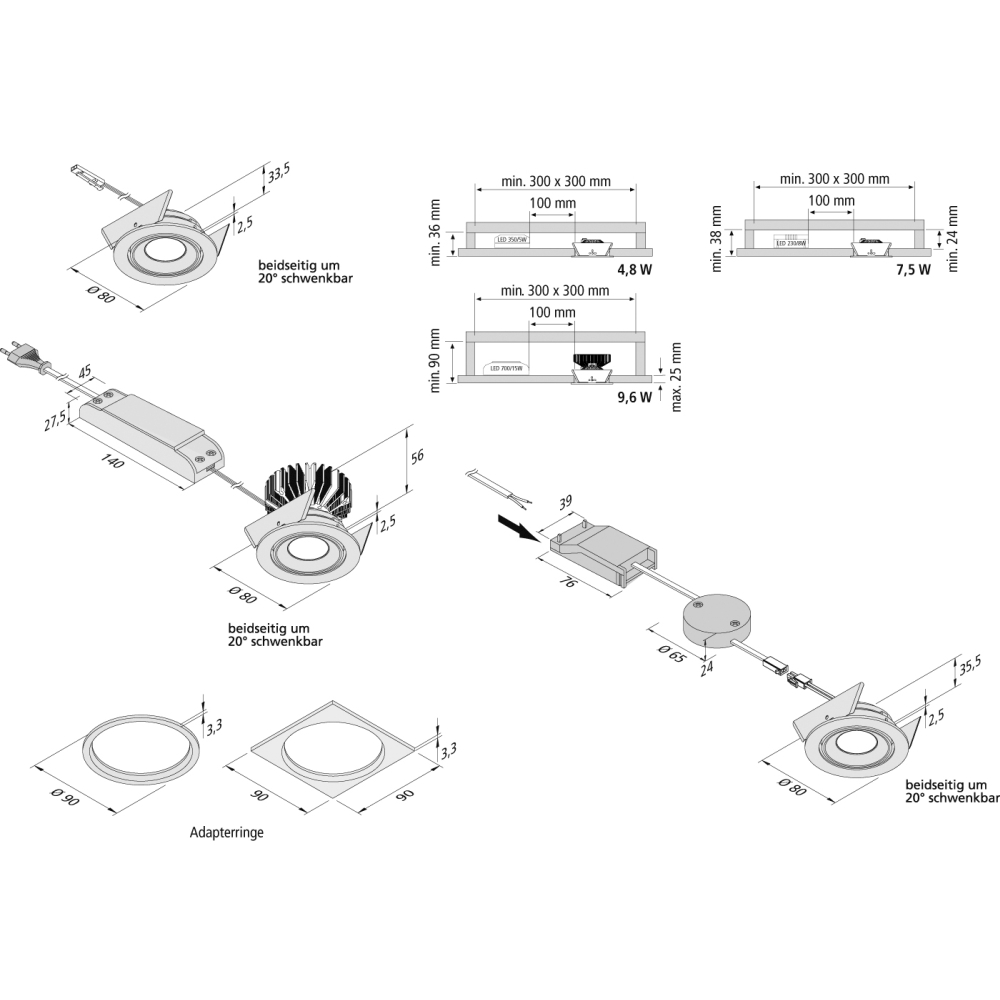

The recessed spotlight has a round shape and a size of Ø 8 cm and 3.8 cm height. It is ideal for ceiling installation and is suitable for indoor use only. The swiveling function allows for precise light direction and optimal room illumination.

Technical Details

The LED recessed spotlight has an IP44 protection, which protects it from dust and splashing water. With a power consumption of 7.5W and a light output of 107lm/W, it produces warm white light with a luminous flux of 800lm. The material is made of aluminum and plastic, ensuring a sturdy and durable construction.

Additional Information

This recessed spotlight has an average lamp life of 70,000 hours and is controlled by an LED driver. It can be dimmed with a phase dimmer (e.g. Busch-Jaeger 6513U or Jung 225TDE). The color temperature is 3000K and the energy efficiency class is E. With protection class 3 and a swivel range of 20°, this LED recessed spotlight offers versatile application possibilities.

Scope of Delivery and Accessories

The scope of delivery includes the driver and the LED light source. The recessed spotlight is not suitable for replacing the LED. With its attractive design, powerful lighting, and versatile adjustment options, the LED Recessed Spotlight SR 68-LED Set from Hera is an excellent choice for a modern and efficient lighting solution.

Colour:
transparent
white
Dimension:
Ø∕ H: 8∕ 3,8 cm
Material:
aluminium
plastic
Product type:
recessed luminaire
Lamp shape:
round
Bulbs in delivery:
yes
Accessories:
control gear - included in delivery
Application area:
only suitable for indoor use
Field of application:
ceiling
Dimmable:
yes
Dimmability:
trailing edge, leading edge
Constant current:
230 mA
Power consumption:
7,5 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Bulb is cardanic/gimballed swivelable:
yes
Light colour:
warm white
Light emission:
symmetric
Light flux:
800 lm
Light yield:
107 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
70000 h
Colour rendering index:
90-100 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK00 no impact resistance
Lamp current:
230 mA
Swivel range:
20.00 °
Fitting opening circle :
6,8 cm
Plug type:
LED 350 plug
Mounting:
recessed mounting
Protection class:
3
IP-protection class:
44
Additional information:
Output: 1x 6,25A max.
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
E
EPREL No:
897620
Article number:
HE-61001475501
Brand:
Hera
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
