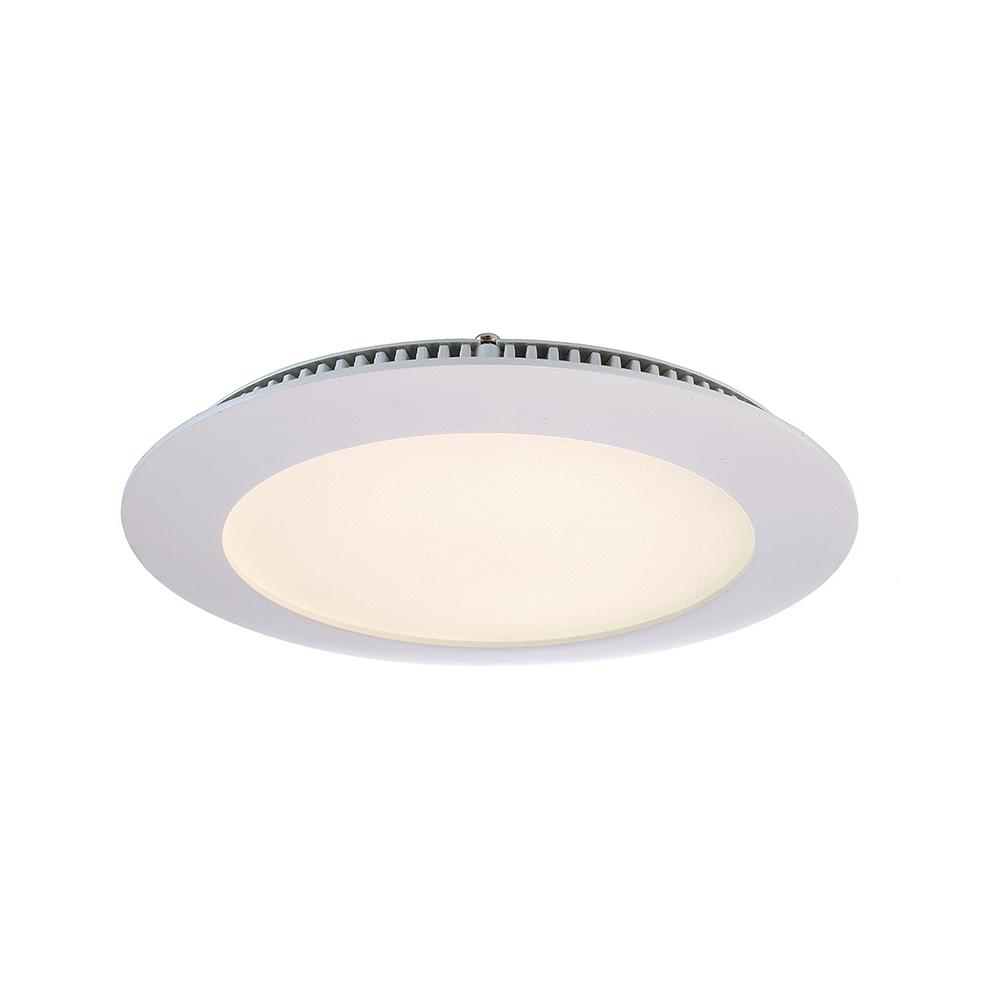

Recessed LED ceiling luminaire LED Panel 12, current constant, 350 mA, 12W, 2700K, white

LED Recessed Ceiling Light LED Panel 12

The LED Recessed Ceiling Light LED Panel 12 is a constant current light with an energy consumption of 14kWh/1,000h. With a power consumption of 12W and a luminous flux of 623lm, it produces a pleasant warm white light color with a color rendering index of over 80Ra. Thanks to its dimmability, the brightness can be individually adjusted.

Technical Details

The LED Recessed Ceiling Light has a beam angle of 120° and a size of Ø 18 x 2 cm. It is made of die-cast aluminum and weighs only 0.416kg. The installation depth is 2cm and the installation opening has a diameter of 16.3cm. With an average lamp life of 50,000 hours, it is durable and efficient.

IP Protection Rating and Protection Class

The LED Recessed Ceiling Light has an IP20 protection against the ingress of solid foreign objects and is rated in protection class 3. The temperature range is between -5°C and +40°C, allowing for versatile applications. The light has an energy efficiency class G and can be connected with an AMP plug.

Additional Information

The LED Panel 12 includes 32 x SMD light sources and a symmetrical reflector/lens. It features a fixed rotation and tilt range and 1 channel. With 100,000 switching cycles and a power supply unit (excluding LED power supply unit), the light is versatile. The EPREL number is 855170 and the color temperature is 2700K.
