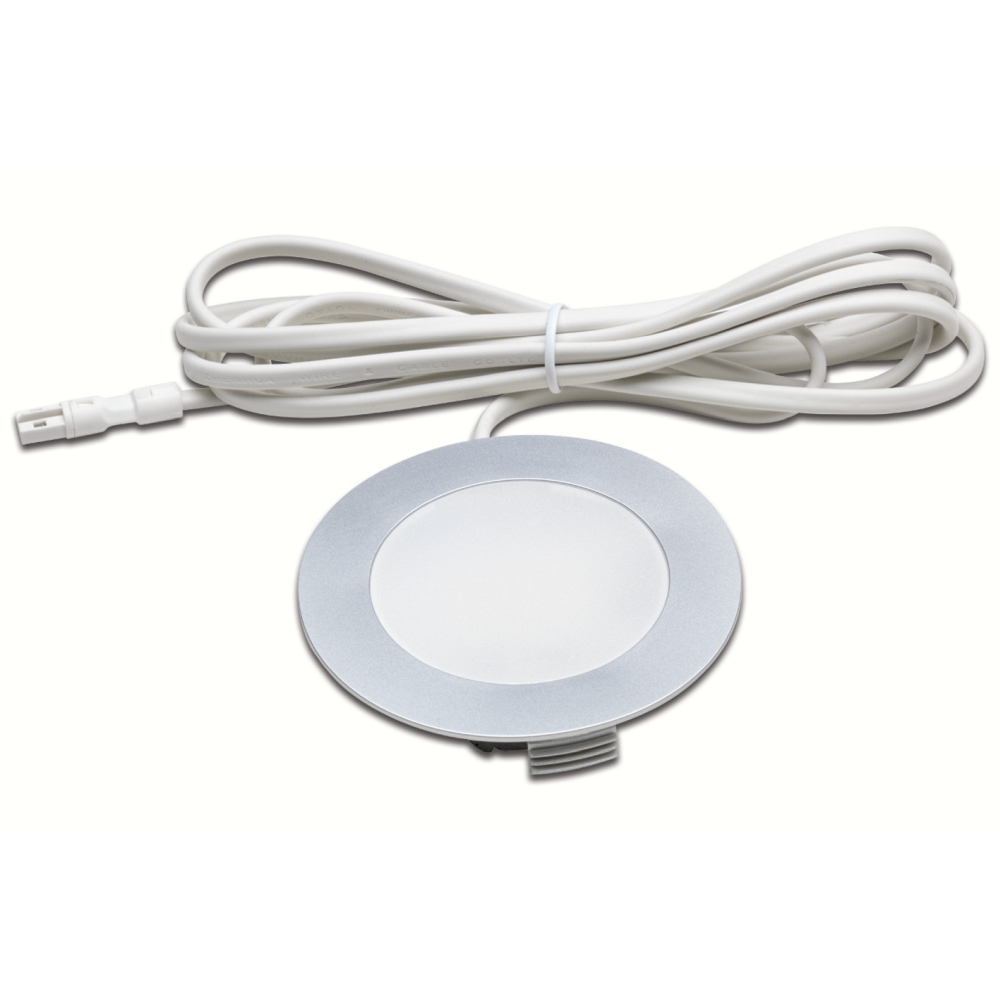

Recessed HV LED spot FR 78-LED with area light, IP20, 230V HVLCS, 3W 4000K 200lm 110°, matt chrome

Technical Details:

The HV LED recessed light FR 78-LED with area light is a high-quality product designed for use in indoor furniture. With an operating voltage of 220-240V~ and a power consumption of 3W, this recessed light offers excellent light output of 67lm/W.

Design and Material:

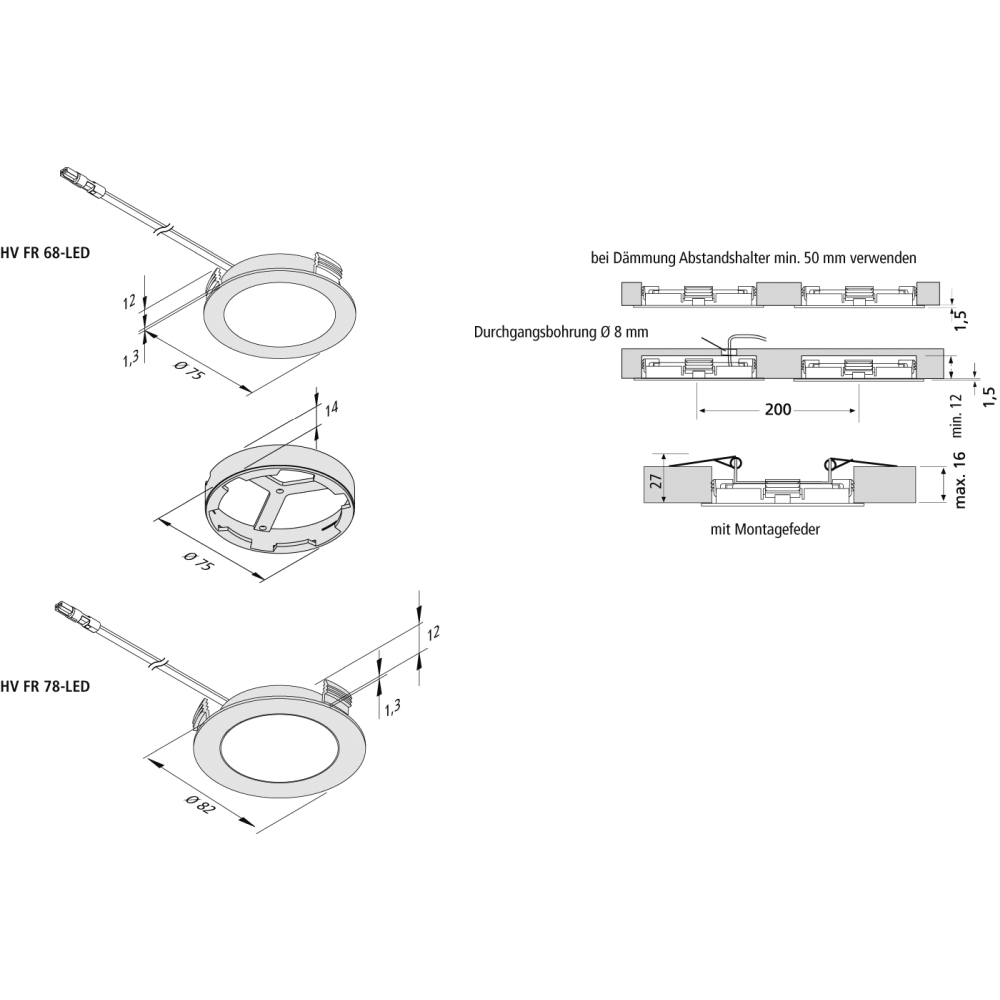

The recessed light has a size of Ø 8.2 x 1.4 cm and features an elegant chrome-colored surface. The opal light provides a pleasant light distribution. Installation is done using the user-friendly HVLCS plug system and clamping ribs for quick and easy installation.

Light Quality:

The recessed light offers a neutral light color with a color temperature of 4000K and a color rendering index of 80-89Ra. The luminous flux is 200lm and the light distribution is symmetrical. With an average lamp lifespan of 40000 hours, this light is durable and efficient.

Safety and Energy Efficiency:

The recessed light has a protection class 2 and an IP protection rating of 20. The energy efficiency class is G and the power factor is 0.91. The integrated LED driver is current-controlled and ensures safe and efficient use.

Accessories and Recommendations:

The delivery includes the HVLCS plug cable with a length of 200cm. For optimal dimming, the phase dimmer Busch-Jaeger 6523U-102 or Sygonix 33594C is recommended. With an extremely wide beam angle of 110° and a rigid optic, this recessed light provides uniform lighting.
