LED panel Frame 620 (61.5 x 61.5cm), IP40, 40W 4000K 3700lm 120°, illuminated frame, TRIAC dimmable

ISOLED



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

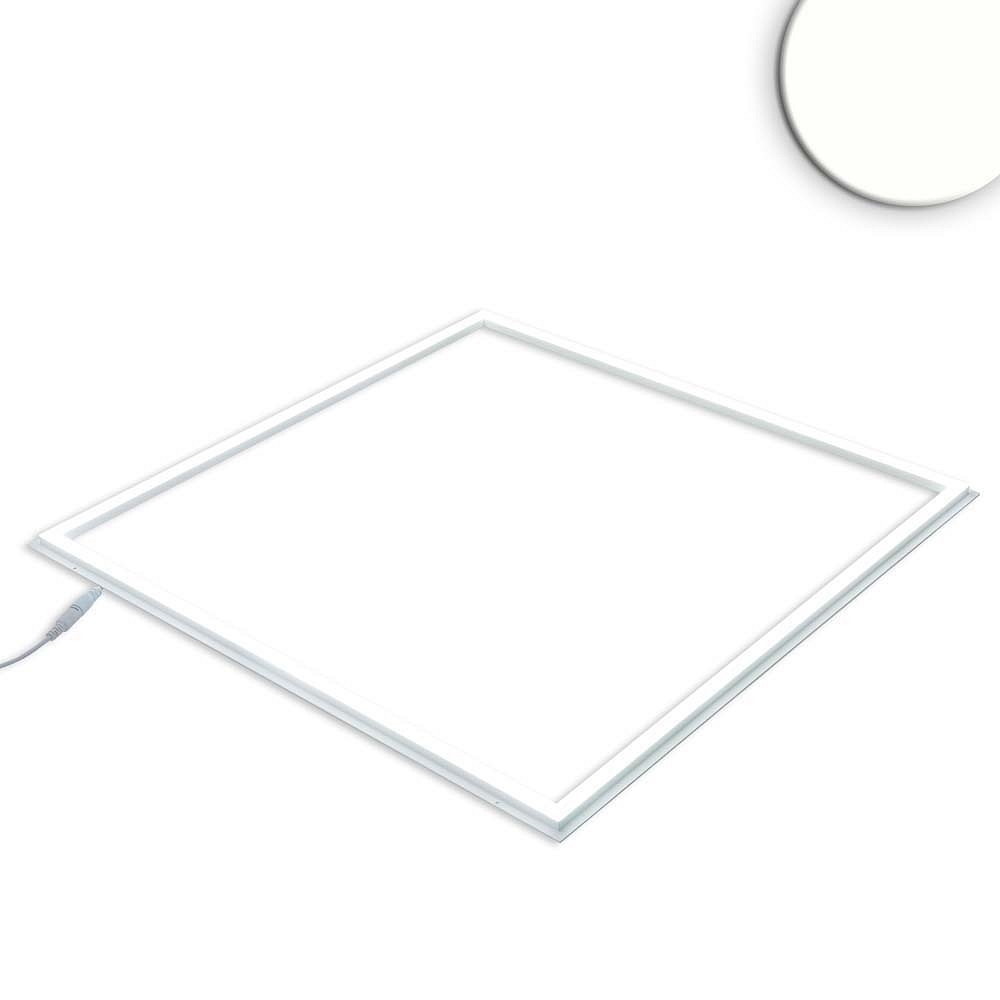

LED Panel Frame 620 (61.5 x 61.5cm)

The LED Panel Frame 620 from ISOLED is an illuminated frame with dimensions of 61.5 x 61.5 cm. It has a power of 40W and a brightness of 3700lm, providing a bright and uniform illumination.

IP40 Protection Class

This LED Panel Frame has an IP40 protection class, which means it is protected against solid foreign objects larger than 1mm in diameter. This makes it ideal for indoor use where there is no direct moisture present.

Color Temperature 4000K

The color temperature of the LED Panel is 4000K, which corresponds to a neutral white. This color temperature is ideal for workspaces or offices as it provides natural lighting that promotes concentration.

Dimmable: Leading edge, Trailing edge, TRIAC

The LED Panel Frame 620 is dimmable and supports various dimming techniques such as leading edge, trailing edge, and TRIAC. This allows you to adjust the brightness of the light as needed and create individual lighting.

EAN: 9009377063923

With the EAN number 9009377063923, you can easily identify and order this LED Panel Frame 620. Benefit from the high-quality construction and energy-saving LED technology of this product.

Colour:
mat
white
Dimension:
L∕ W∕ H: 61,5∕ 61,5∕ 1,1 cm
Material:
aluminium
Product type:
LED panel
Lamp shape:
square
Accessories:
mounting set - not included in delivery
transformer box - not included in delivery
control gear - included in delivery
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-230 V~
Dimmable:
yes
Dimmability:
trailing edge, leading edge, TRIAC
Power consumption:
40 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
diffuse
Light flux:
3700 lm
Light yield:
97,37 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
>83 Ra
1B
IK-Rating:
IK00 no impact resistance
lamp performance:
38 W
Fitting depth:
1 cm
Fitting opening square/rectangular width:
62.00 cm
Fitting opening square/rectangular length:
62.00 cm
Mounting:
recessed mounting
surfaced mounting
Protection class:
1
IP-protection class:
IP40
Additional information:
System power: 38W
ambient temperature:
-20 - 40 °C
Energy efficiency category:
E
EPREL No:
820270
Energy consumption:
40 kWh/1.000 h
Article number:
ISO-113794
Brand:
ISOLED
Manufacturer:
ISOLED
Manufacturer information
ISOLED FIAI Handels GmbH, Egerbach 48, 6334, Schwoich, Austria, product-details-service@isoled.shop, www.isoled.shop/details
