LED long field linear luminaire SlimLite® CS LED HO+, 180° rotatable, 89.5cm, dimmable (1-10V), 18W 3000K

LED Linear Luminaire SlimLite® CS LED HO+, 180° rotatable, 89.5cm, dimmable (1-10V)

The LED Linear Luminaire SlimLite® CS LED HO+ from Hera is a high-quality lighting solution for indoor applications. With a power consumption of 18W and a luminous flux of 1500lm, it provides bright and pleasant lighting in various settings.

Technical Details

This linear luminaire has an operating voltage of 220-240V~ and a constant current of 73mA. It is dimmable (1-10V) and offers a warm white light color with a color rendering index of 90-100Ra. The luminaire is 89.5cm long, 2.9cm wide, and 4.3cm high, made of aluminum, and has an average lamp lifespan of 60000 hours.

Installation and Connection

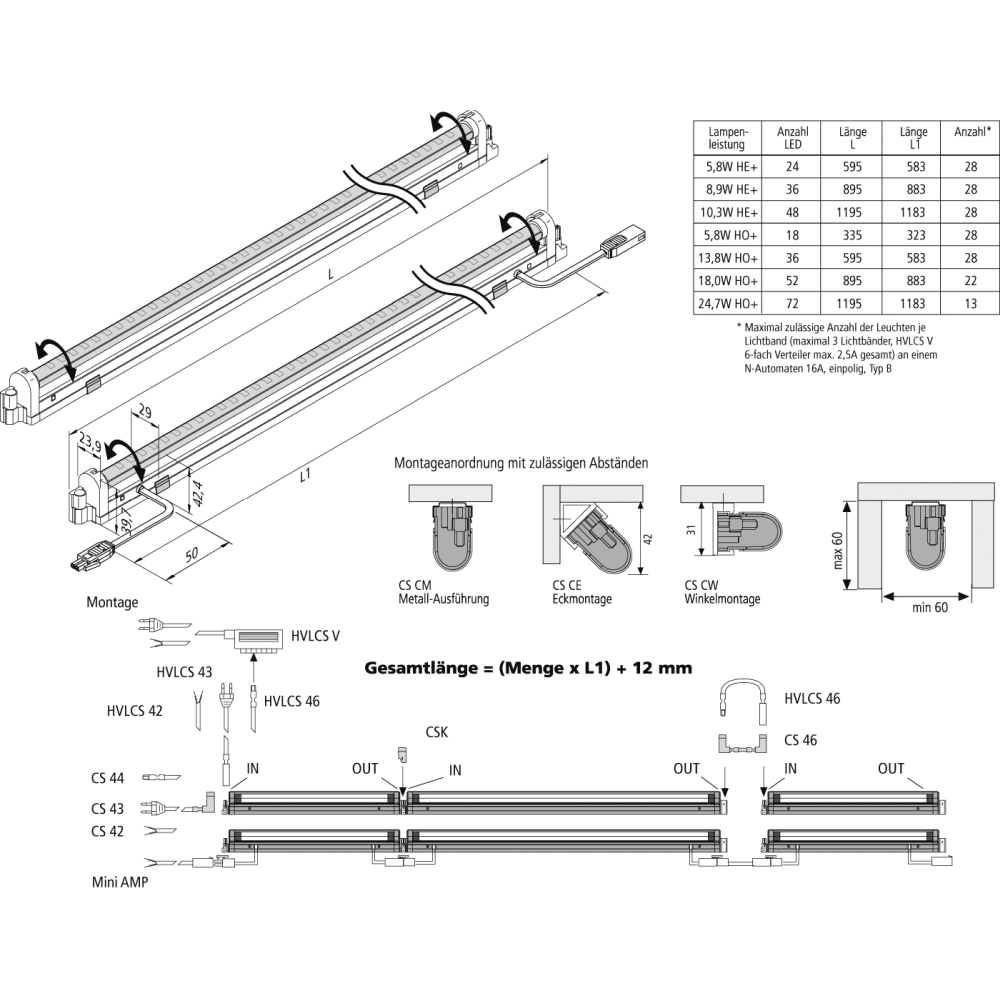

The SlimLite® CS LED HO+ is installed using surface mounting and has a plug power connection (HVLCS). The control gear is included in the delivery, while the switch is sold separately. The wiring is done with loop-through wiring and a conductor cross-section of 0.75mm2.

Additional Information

The linear luminaire has an energy efficiency index (EEI) of power supply A1 and a power factor of 0.96. The control gear is a current-controlled LED control gear. The protection class is 2, with an IP protection rating of 20. The energy efficiency class is E, and the color temperature is 3000K.

Accessories and Add-ons

The SlimLite® CS LED HO+ comes with a non-replaceable LED light source and a switch. The linear luminaire is rotatable by 180° and is ideal for use in furniture and on walls. Please note that the LED light source cannot be replaced.
