LED ceiling luminaire LED Panel square 20, current constant, 700 mA, 20W 4000K 120°, white

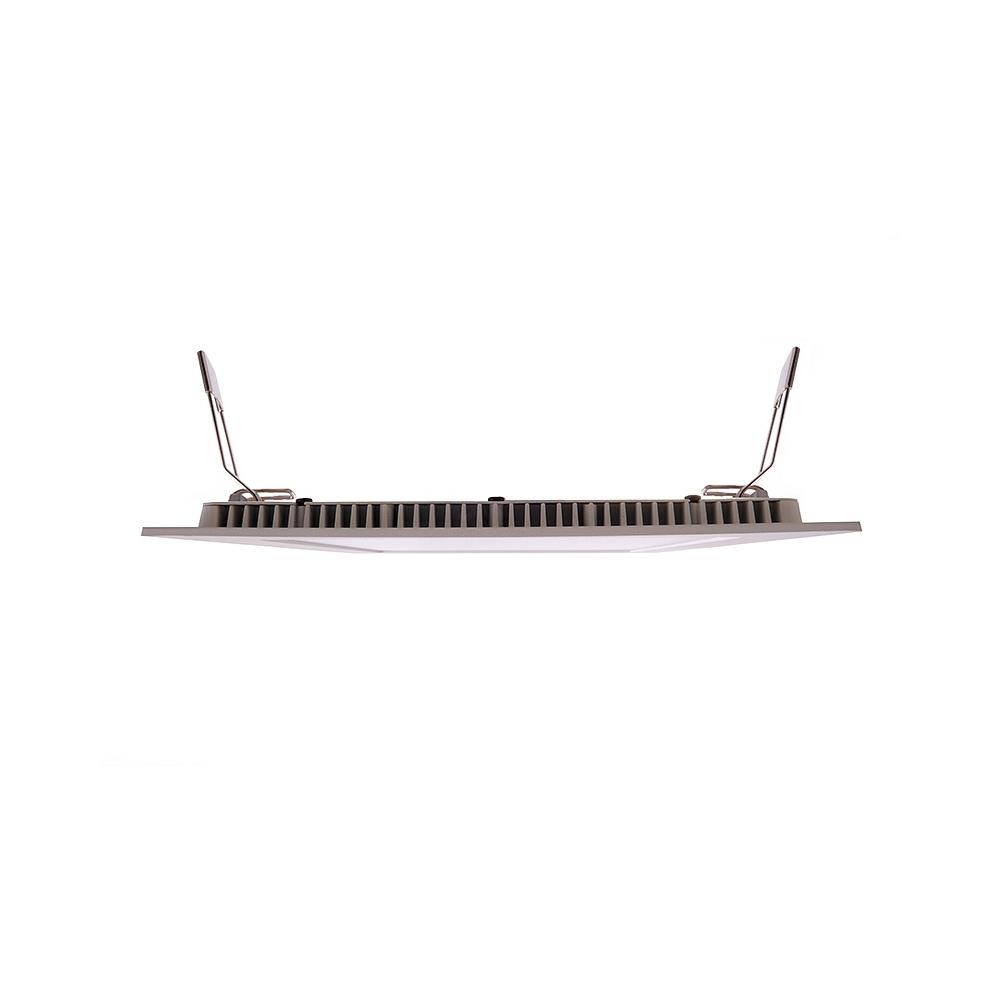

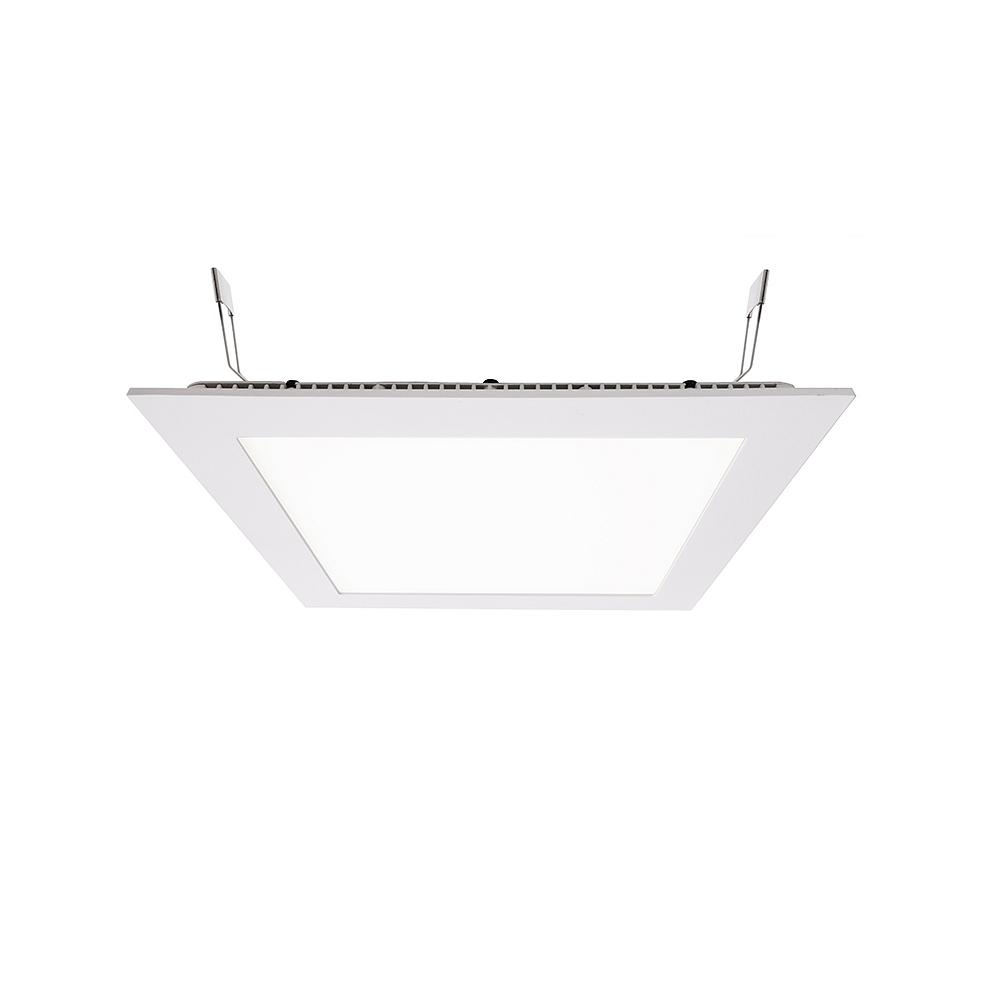

LED Recessed Ceiling Light LED Panel Square 20

The LED Recessed Ceiling Light LED Panel Square 20 is a constant current light with a current of 700 mA and a power of 20W. It has a beam angle of 120° and a color temperature of 4000K, which corresponds to a neutral white light. With a luminous flux of 1323lm and a luminous intensity of 474cd, it provides bright illumination in your space.

Technical Details

The recessed ceiling light has dimensions of L/H: 23.7/2.02 cm and a weight of 0.778kg. It is dimmable and can be regulated with a phase-cut/phase-cut dimmer. The material is made of die-cast aluminum and the installation depth is 2cm. The installation opening has a rectangular shape with a length and width of 21.5cm each. The protection class of the light is 3 and it has a mean lamp life of 50000 hours.

Energy Efficiency and Environmental Compatibility

The energy efficiency class of the LED recessed ceiling light is G and its energy consumption is 25kWh/1000h. With a color rendering index of over 80Ra, it ensures high quality color reproduction. The light is suitable for a temperature range of -5°C to +40°C and has an IP20 protection rating.

Additional Information

Additional features of the recessed ceiling light include a symmetrical reflector/lens, a fixed rotation and swivel range, and 100000 switching cycles. The LED power supply unit is exclusive and the connection is made via an AMP plug. The recessed ceiling light has 56 SMD light sources and 1 channel. The EPREL number is 858068 and the article number is D-565162.

Versatile Applications

The LED Recessed Ceiling Light LED Panel Square 20 is ideal for use in various rooms such as living room, kitchen, hallway, or office. With its modern white design, it blends harmoniously into any room concept and provides pleasant lighting. Thanks to its dimmability, you can adjust the brightness as needed and create an individual atmosphere.
