LED area lightbar LED 2-Link FLOOD, 90cm, for LED 2-Link profiles, CRi>95, 16.1W 4000K 930lm 120°, anodised alu

Hera


G
Product data sheet

78,19 EUR

excl. Shipping costs (from 99,00 EUR free shipping) / incl. 19 % VAT
RRP (manufacturer): 91,99 EUR

Price below RRP

Shipping time: 10-12 days

Product no.: HE-61002162103
EAN: 4051268165341
In stock: 50

Due to the wide range of product combination options, it is not always possible to display all items, including components and accessories, online.

Please call us here, our trained sales team will be happy to advise and support you at any time in selecting the right items.


We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

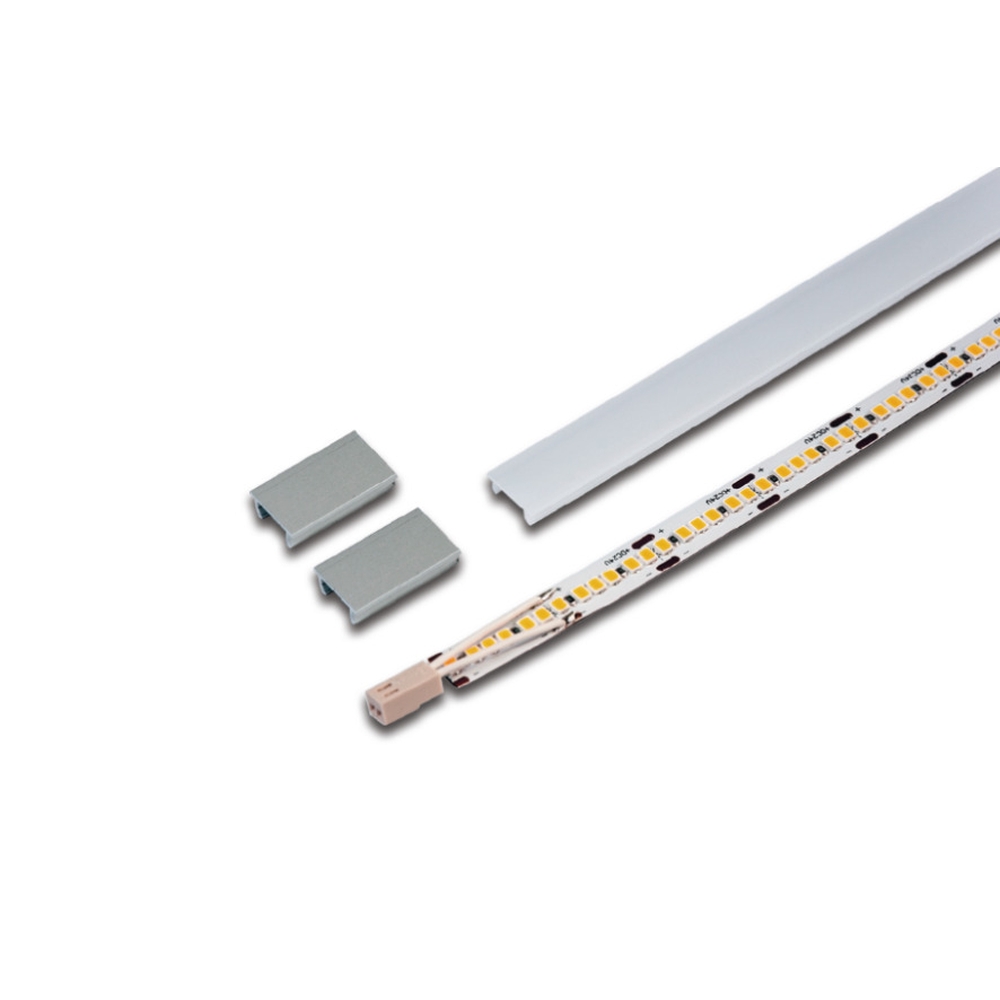

High-quality LED Surface Light Bar LED 2-LINK FLOOD

This LED surface light bar is specifically designed for use with LED 2-LINK profiles and offers a color rendering index of up to 95Ra. With a power consumption of 16.1W and a luminous flux of 845lm, it provides bright and efficient lighting in indoor spaces. The light color is neutral white, creating a pleasant atmosphere.

Technical Details and Application

The LED surface light bar has dimensions of 90x1.5x0.8 cm and is ideal for use in furniture. It is mounted using surface mounting and operates at a voltage of 24V=. The material is made of aluminum and plastic, ensuring a sturdy and durable construction.

Additional Information and Features

The light distribution is symmetric and the light bar has an extremely wide beam angle of 120°. The diffuser ensures uniform light distribution without visible light spots. The LED is not replaceable and has an average lamp lifespan of 60000 hours.

Energy Efficiency and Certifications

The LED surface light bar has an energy efficiency class G and a color temperature of 4000K. It complies with the requirements of EPREL No. 932823 and has a protection class of 3. The operating devices are voltage-controlled and wired with through wiring.

Accessories and Dimming

The appropriate operating device is not included in the delivery. The LED surface light bar can be dimmed with compatible accessories, offering individual lighting options. Thanks to the LED-24 plug system, the connection is simple and secure.

Colour:
aluminium
opal
Dimension:

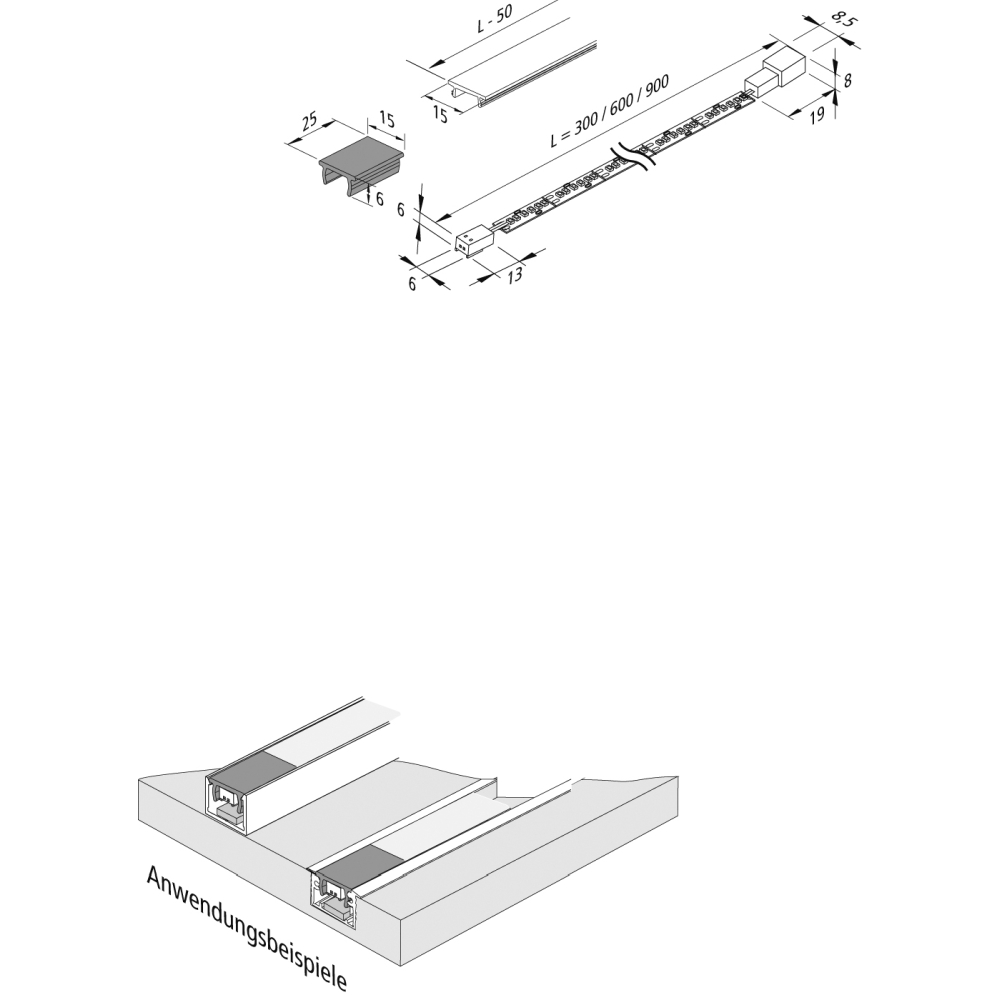

L∕ W∕ H: 90∕ 1,5∕ 0,8 cm
Material:
aluminium
plastic
Product type:
light bar
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
Application area:
only suitable for indoor use
Field of application:
furniture
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Power consumption:
16,1 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
symmetric
Light flux:
845 lm
Light yield:
58 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
90-100 Ra
1A
IK-Rating:
IK00 no impact resistance
Fitting opening square/rectangular width:
90 cm
Fitting opening square/rectangular length:
1,5 cm
Plug type:
LED 24 plug-in system
Mounting:
surfaced mounting
Protection class:
3
IP-protection class:
20.00
Additional information:
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
G
EPREL No:
932823
Article number:
HE-61002162103
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
