Compact LED furniture recessed light for small drill diameters

The LED furniture recessed light AR 45 ZOOM by Hera is a compact lighting solution for furniture with a drill diameter of only 45mm. With a system power of 3 watts, it provides effective lighting in small spaces or niches.

Steplessly adjustable beam angle from 17° to 50°

By rotating the inner ring of the recessed light, the beam angle can be adjusted steplessly from 17° to 50°. This allows the light to be directed precisely and to illuminate specific areas or objects optimally.

Direct light output through a rigid luminaire head with focus lens

The AR 45 ZOOM features a rigid luminaire head with a focus lens that enables direct light output. This efficiently and precisely places the light where it is needed, without any loss through scattering.

Sturdy metal construction and safe operation with 24V DC

Thanks to its sturdy metal construction, the recessed light is durable and robust. It can be safely operated with 24V DC low-voltage direct current, ensuring safe use in various environments.

Quick and easy installation with versatile mounting options

The AR 45 ZOOM can be quickly and easily mounted with snap hooks. Alternatively, it can also be attached with an optional mounting spring. The delivery includes a 250cm long connection cable with a Hera LED 24 plug for easy installation.

Colour:
chrome matt
Glass color:
clear
prisma
Cable color:
white

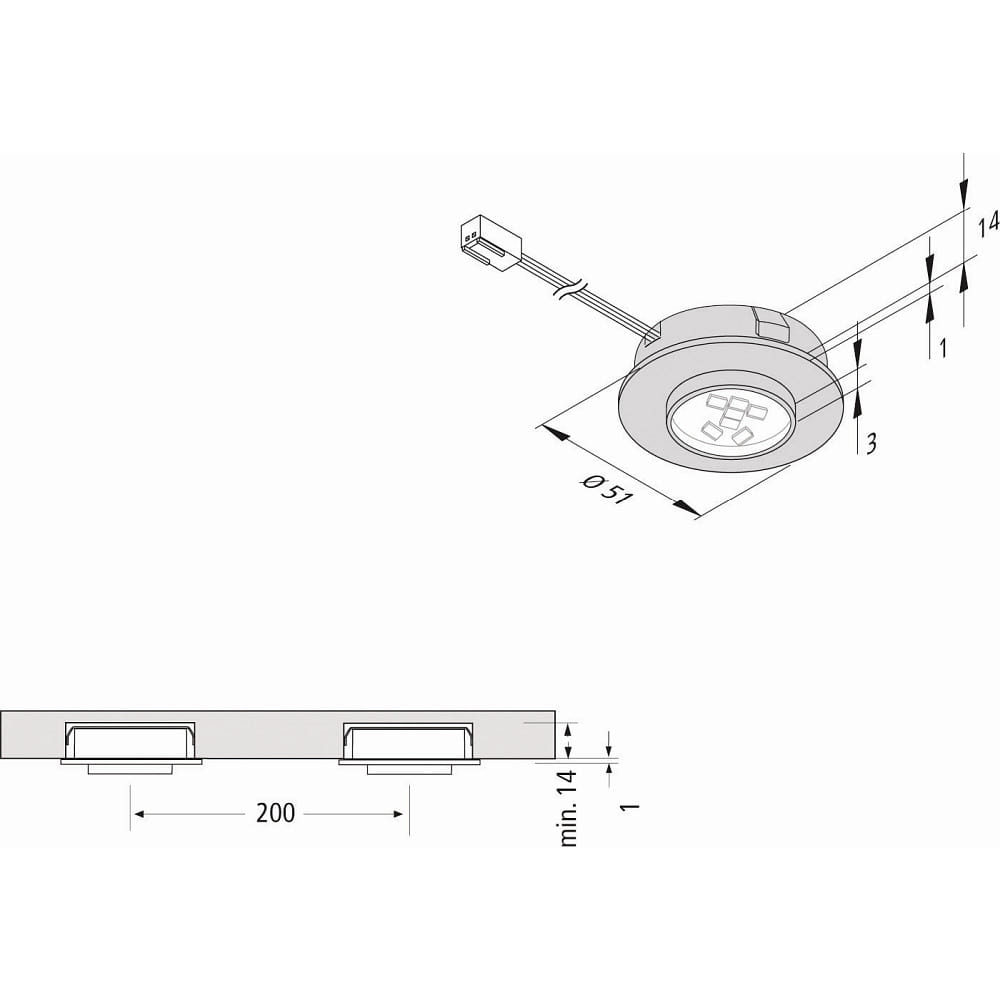

Dimension:
total-Ø∕ H: 5,1∕ 1,8 cm
visible part-Ø∕ H: 5,1∕ 0,4 cm
cover-Ø∕ H: 5,1∕ 0,1 cm
ring-H: 0,3 cm
Empfohlener Lichtpunkt-Abstand-L: 20 cm
Material:
aluminium
plastic
Weight:
0,062 kg
Product type:
furniture luminaire
Accessories:
connection cable - included in delivery
plug - included in delivery
control gear - not included in delivery
Socket of the bulb:
1
Operating voltage:
24 V=
Dimmable:
no
Power consumption:
3 W
Emitting angle:
17-50 °
Beam direction:
down
Light flux:
175 lm
Light yield:
58 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
35000 h
Colour rendering index:
>90 Ra
1A
IK-Rating:
IK00 no impact resistance
Permissions for mounting on flamabel surfaces:
Suitable for direct mounting in and on surfaces of unknown flammability
Admissible burning position:
11
Length of connection lead:
250 cm
Protection class:
3
IP-protection class:
IP20
ambient temperature:
-5 - 35 °C
Article number:
HE-20203531003
Purchasing quantity:
1 piece
Brand:
Hera
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
