downlight DL SQUARE MAXI static IP20, silver

High-Quality LED Downlight DL SQUARE MAXI

The LED Downlight DL SQUARE MAXI impresses with its modern square shape and dimensions of 22.5 x 22.5 x 8.4 cm. With a power consumption of 14 watts, it produces a neutral white light at 4000 Kelvin with a luminous flux of 2260 lumens. The downlight is made of robust aluminum and is equipped with a transparent glass cover that guarantees even and pleasant light distribution. The silver color integrates elegantly into many interior styles.

Efficient and Long-Lasting Lighting

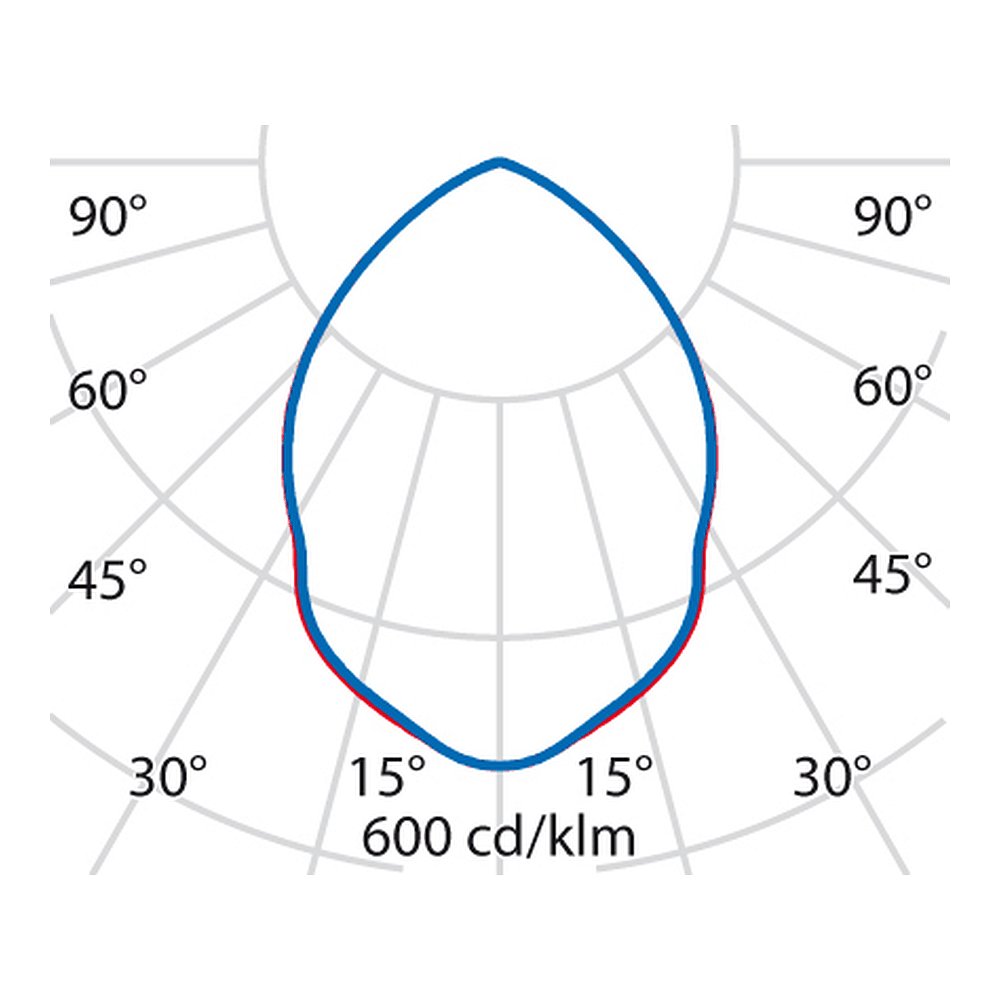

This LED downlight offers an impressive luminous efficacy of 149 lumens per watt and an average lamp lifespan of up to 50,000 hours. The neutral white light color ensures natural color rendering with an index of 80-89 Ra, enabling pleasant and clear illumination. The light distribution is direct with a wide beam angle of over 80 degrees, allowing large areas to be evenly illuminated.

Easy Installation and Technical Details

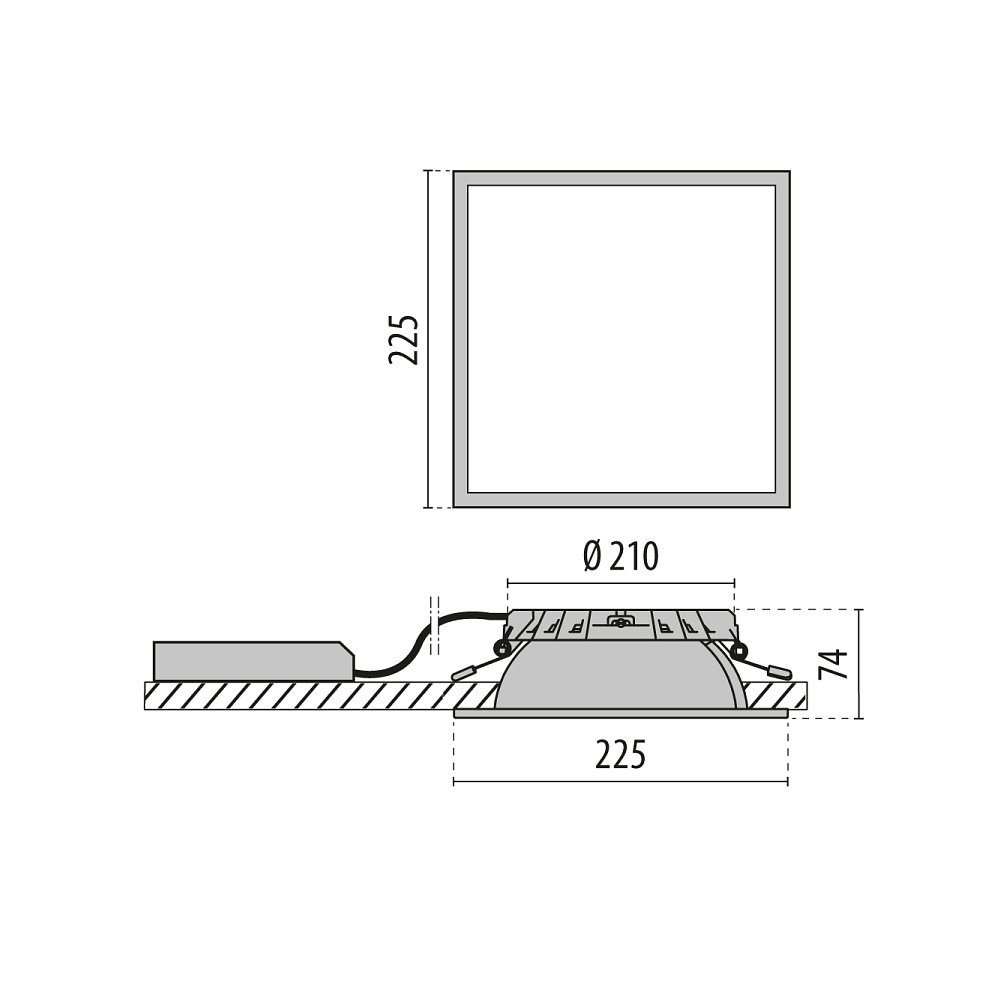

The DL SQUARE MAXI is designed for recessed installation and requires a rectangular opening measuring 22.5 x 22.5 cm. The installation depth is 8 cm, allowing the downlight to be installed space-saving and discreetly. Connection is made via a terminal block with a rated current of 500 mA and a conductor cross-section of 2 mm². The product meets the requirements of fire protection class "D" and is certified with a glow wire test according to IEC 60695-2-11 (650 °C – 30 seconds).

Innovative Lighting Technology and Safety

The downlight is equipped with an extra-wide round diffuser optic that ensures pleasant light distribution. The diffuser lens provides uniform light scattering without glare. The LED driver unit is current-controlled and not included in the delivery. The photobiological safety is classified as RG1 according to EN 62471, meaning the light is harmless to health. The color consistency complies with the SDCM3 standard, minimizing color deviations.

Optimal Equipment for Versatile Applications

The DL SQUARE MAXI LED downlight is ideal for a wide range of lighting solutions. It contains a permanently installed LED light source that cannot be replaced, simplifying maintenance. With an IP20 protection rating and IK07 impact resistance, the downlight is well protected against mechanical influences. The ambient temperature range is from -10 to +40 °C, ensuring stable performance under various conditions. Thanks to its high quality and well-thought-out technical details, this product is a durable and energy-efficient solution for professional lighting concepts.
