downlight DL SQUARE MAXI DALI controllable IP20, silver dimmable

Performance in Lighting


227,89 EUR

Free of shipping costs within Germany, abroad excl. Shipping costs / incl. 19 % VAT

Shipping time: 5-10 days

Product no.: PIL-3109005
EAN: 8018367705034
In stock: 20


We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

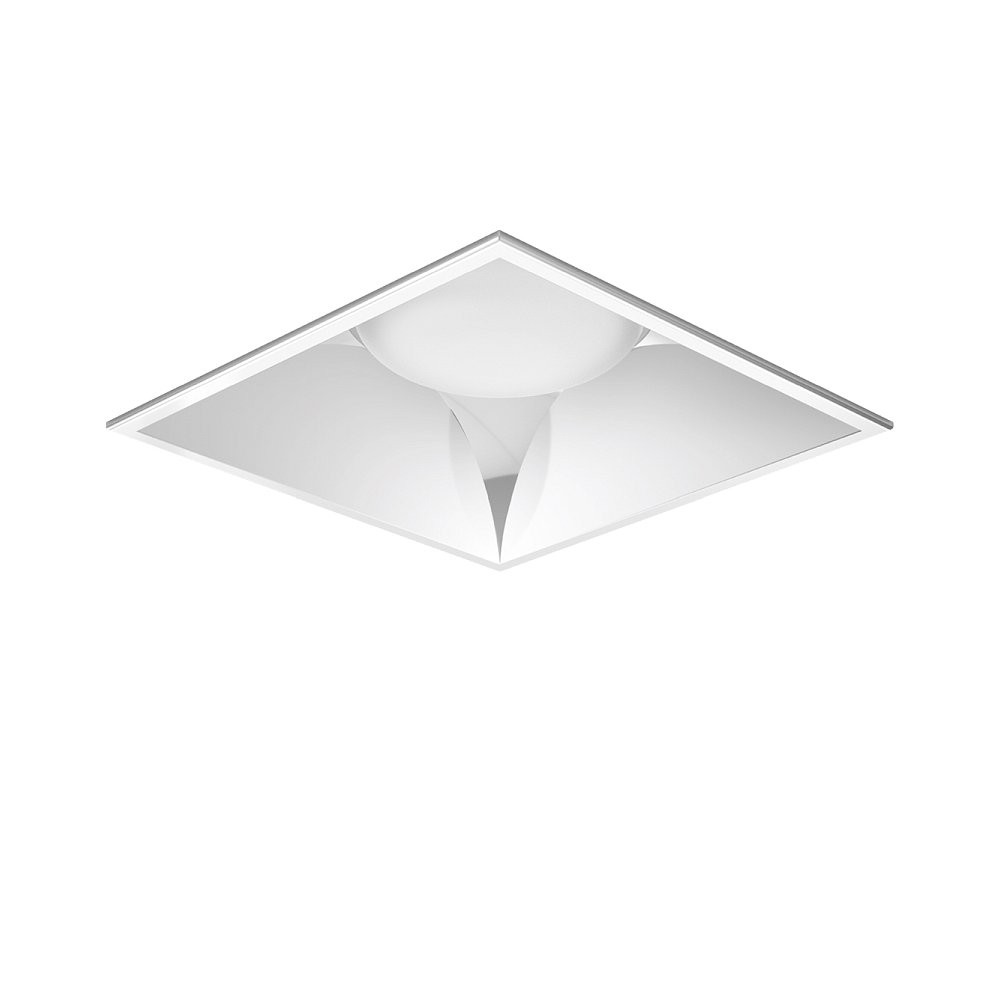

LED Downlight DL SQUARE MAXI, 19W, 4000K, 3130lm, IP20, IK07, DALI, silver / transparent glass

The LED Downlight DL SQUARE MAXI offers a power consumption of 19W and a luminous flux of 3130lm. With a neutral white light color and a color rendering index of 80-89Ra, it provides clear and natural lighting. The square shape and silver design make it a stylish element in any room.

Technical Details

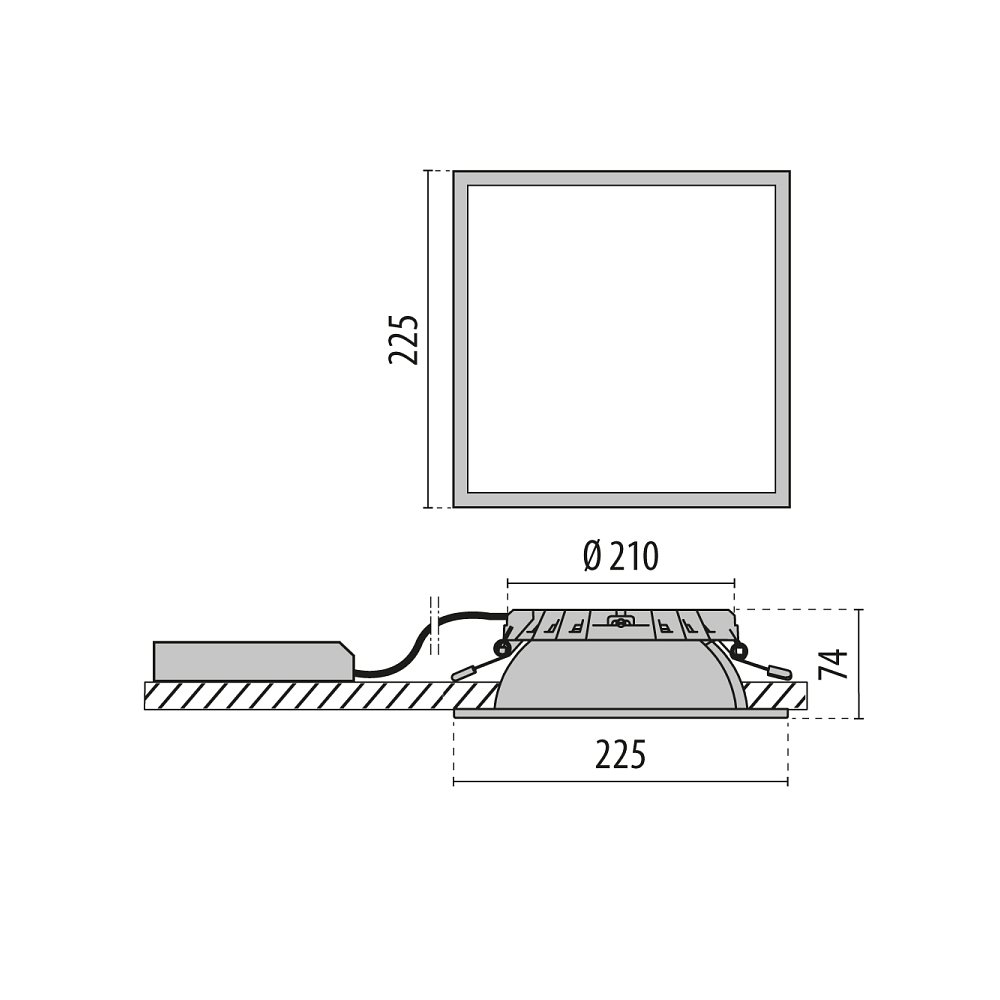

The downlight has an IP20 protection rating and IK07 impact resistance. The installation depth is 8cm, while the installation opening has a square shape with a length and width of 22.5cm each. The installation is done by recessed mounting, and the product can be installed on a ceiling.

Accessories and Features

The downlight comes with an LED light source that has an average lifespan of 50000 hours. It features a current-controlled LED driver and can be dimmed via DALI. The light distribution is direct and the beam angle is more than 80°, allowing for wide area illumination.

Application and Material

Thanks to the round extra wide beam optics and diffuser lens, uniform light distribution is ensured. The downlight is made of aluminum and glass and has an ambient temperature range of -10 to +40°C. It offers constant light output control and high fire protection according to class "D".

Additional Information and Certifications

The downlight meets the requirements for photobiological safety according to EN 62471 and color consistency according to SDCM3. The glow wire test according to IEC 60695-2-11 guarantees high heat resistance. With a plug type clamp connection and a rated current of 700mA, the product is easy to install and safe to use.

Colour:
silver
Dimension:
L∕ W∕ D: 22,5∕ 22,5∕ 8,4 cm
Material:
aluminium
glass
Product type:
downlight
Lamp shape:
square
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
Field of application:
ceiling
Operating voltage:
220|240 V
Dimmable:
yes
Dimmability:
DALI, depending on the control gear
Emitting angle:
>80 °
LED can be replaced :
no
Number of bulbs:
1
Light colour:
neutral white
Light emission:
direct
Light flux:
3130 lm
Light yield:
152 lm/W
Nominal current:
700 mA
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
80-89 Ra
Fitting depth:
8 cm
Fitting opening square/rectangular width:
22,5 cm
Fitting opening square/rectangular length:
22,5 cm
Plug type:
clamping connection
Mounting:
recessed mounting
IP-protection class:
IP20
Additional information:
LED driver
ambient temperature:
-10 - +40 °C
Article number:
PIL-3109005
Purchasing quantity:
1 piece
Brand:
Performance in Lighting
Manufacturer:
Performance in Lighting
Manufacturer information
PERFORMANCE iN LIGHTING GmbH, Stapelner Str. 1+3, 38644, Goslar, Deutschland, info.de@pil.lighting, https://www.performanceinlighting.com/
