DALI dimmer OLED DALI-2 PUSH DIM DT8 / DC / 12+24V / SLAVE PWM 4 channel, blue

Product Description:

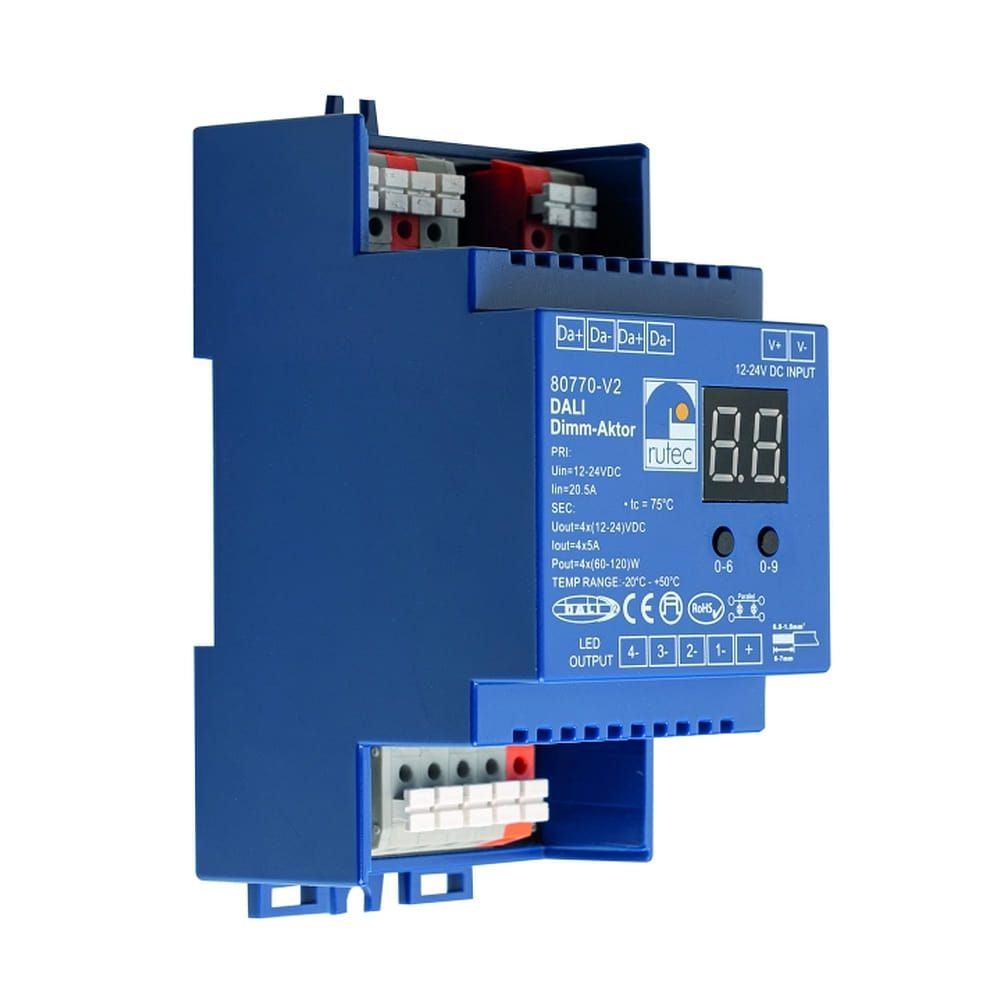

The DALI-2 Push Dimming Actuator DC REG DT6 from Rutec Projekt is a high-quality dimmer for monochrome lighting systems. With an operating voltage of 12-24V= and a maximum current capacity of 20A, this actuator provides reliable control for your lighting.

Digital Display and Easy Operation:

Thanks to the integrated digital display, you can easily check and adjust the dimmer settings at a glance. With 1 address and 4 channels, you can synchronize and customize your lighting individually. The DALI address is manually adjustable and displayed on the OLED digital display.

Compact Design and Easy Installation:

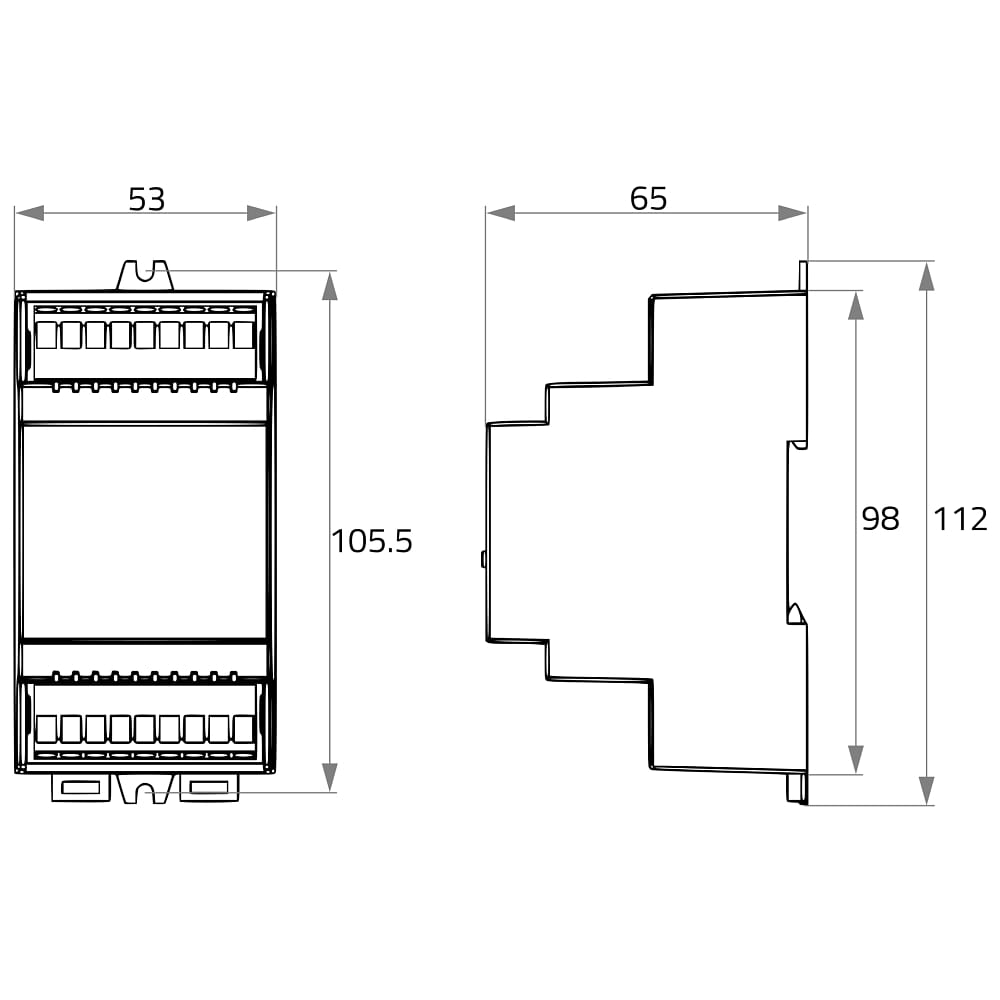

With dimensions of 11.2 x 5.3 x 6.5 cm and the option for DIN rail mounting, this dimmer is ideal for installation in control cabinets. The DALI-2 dimmer offers smooth dimming behavior and complies with the DALI Standard Protocol IEC62386 for reliable and precise control.

Reliable Control and High Performance:

The DALI-2 Push Dimming Actuator DC REG DT6 allows a maximum power of 4x 60W at 12V and 4x 120W at 24V. With automatic addressing from the master and accessories such as display and controller, this dimmer offers versatile and user-friendly control of your lighting.

Safety and Quality:

The DALI-2 Dimming Actuator DC REG DT6 from Rutec Projekt has a protection class of 3 and an IP protection rating of IP20. With its robust design and high-quality construction, you can rely on the reliable and durable performance of this dimmer. Further details can be found in the datasheet and manual.
