corner connector MINI AMP FLEX CRI919/940 24V tunable white, with lighting

Product Description:

The corner connector for MiniAMP Flexband CRI919/940 is the ideal solution for the rectangular connection of LED strips on the same plane. With an operating voltage of 24V and a power consumption of 15W, this corner connector offers a light output of 150 lm/W and a color rendering index of over 90, ensuring very good color reproduction.

Technical Details:

This corner connector has an IP protection rating of IP20 and is suitable for indoor use only. The light color is adjustable from warm white to neutral white to ultra warm white. With a color temperature of 1900-4000K, this corner connector offers versatile lighting options.

Dimmability and Installation:

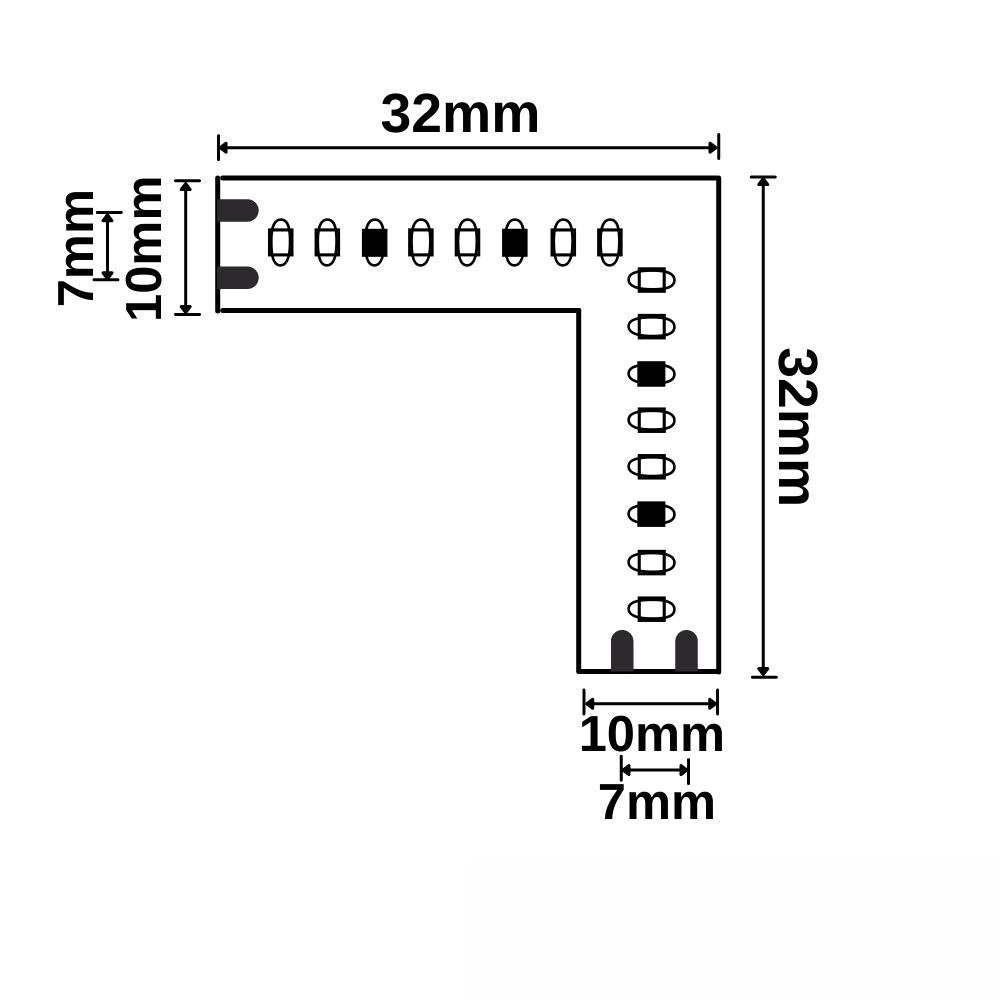

Dimming is done via PWM pulse width modulation and the corner connector is suitable for both recessed and surface mounting. The power connection is done through soldering and the size of the corner connector is 4 x 6 x 0.2 cm, while the strip has a width of 1 cm.

Accessories and Brand:

Accessories for this product include dimmers, LED strips, and drivers. The brand ISOLED stands for high-quality materials such as plastic and copper, which ensure long life and reliable performance. With an average lamp life of 20000 hours, this corner connector is a durable solution for your lighting needs.

Additional Information:

Further information about this product includes the energy efficiency class F, a power factor of 1, and the energy efficiency index (EEI) of the power supply A1 BAT. The contact spacing is 0.7 mm and the cable diameter is 0.5 mm². This corner connector offers high-quality color rendering and easy installation for various applications.
