controller PIR SENSOR STAIR LIGHT CONTROLLER ES32 with sensor, programmable

LED PIR Sensor Stair Light Controller ES32 for VARDAflex

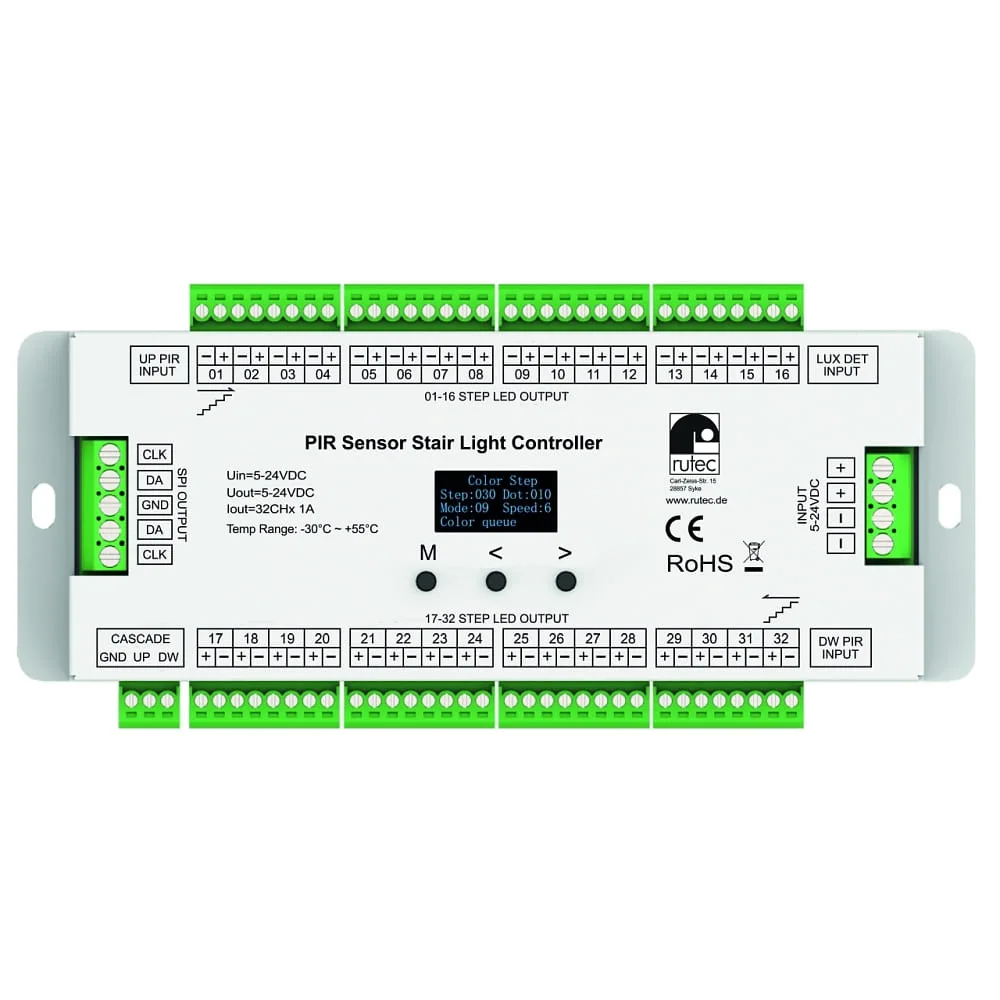

The LED PIR Sensor Stair Light Controller ES32 by Rutec Projekt is a programmable indoor controller specifically designed for modern stair lighting control. With this controller, up to 32 steps can be individually controlled, with each channel being able to be controlled independently.

Versatile Functions and Easy Operation

The controller features multiple programs and button functions, including a running light and cascade function as well as RGB color change. Operation is done through the integrated control buttons and OLED display, allowing for easy and comfortable control.

Safety and Efficiency

The LED PIR Sensor Stair Light Controller ES32 operates with safe extra-low voltage (SELV) and belongs to protection class III. This not only ensures safety but also high energy efficiency. The operating voltage ranges from 5V to 24V DC.

Versatile Connection Options

The controller offers various output options, including 5V DC (max. 160W, 32x 1A), 12V DC (max. 384W, 32x 1A), and 24V DC (max. 768W, 32x 1A). Additionally, two PIR motion sensors and a brightness sensor with corresponding cables are included in the delivery.

Certified and Tested

The LED PIR Sensor Stair Light Controller ES32 complies with European directives and standards and is awarded the CE and RoHS certificates. This not only guarantees the quality of the product but also compliance with environmental protection and safety standards.
