COB Module for N 5800, 7W, 3000K 38°, round
nobilé
65,69 EUR
excl. Shipping costs (from 99,00 EUR free shipping) / incl. 19 % VAT
RRP (manufacturer): 82,11 EUR
Price below RRP
Shipping time: 5-7 days
Product no.: NO-8058001238
EAN: 4044538049878
In stock: 50

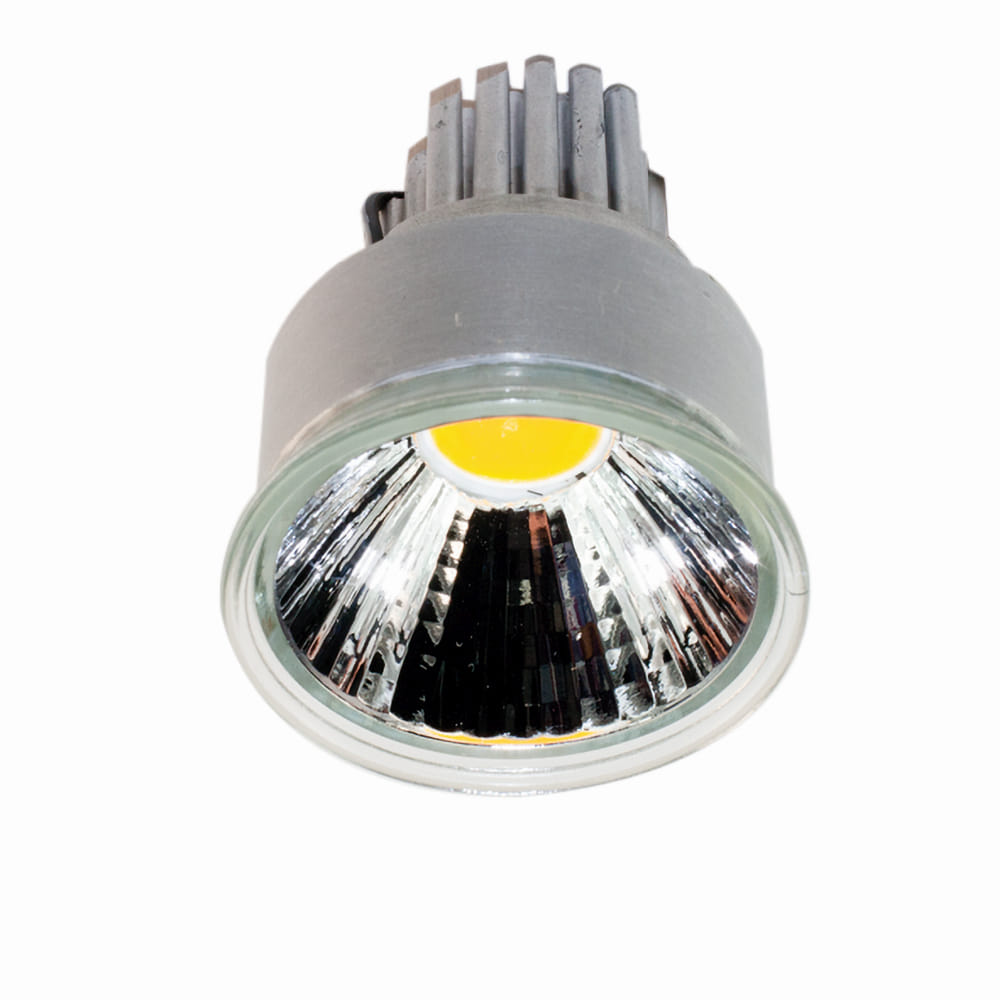

COB Module for N 5800, 7W 3000K 38°, round
The COB module for N 5800 is a high-quality LED light source from the nobilé brand, providing a pleasant warm white light with a power consumption of 7W. With a luminous flux of 650lm and a color rendering index of 94Ra, it offers excellent light quality for indoor use.
Technical Details and Features

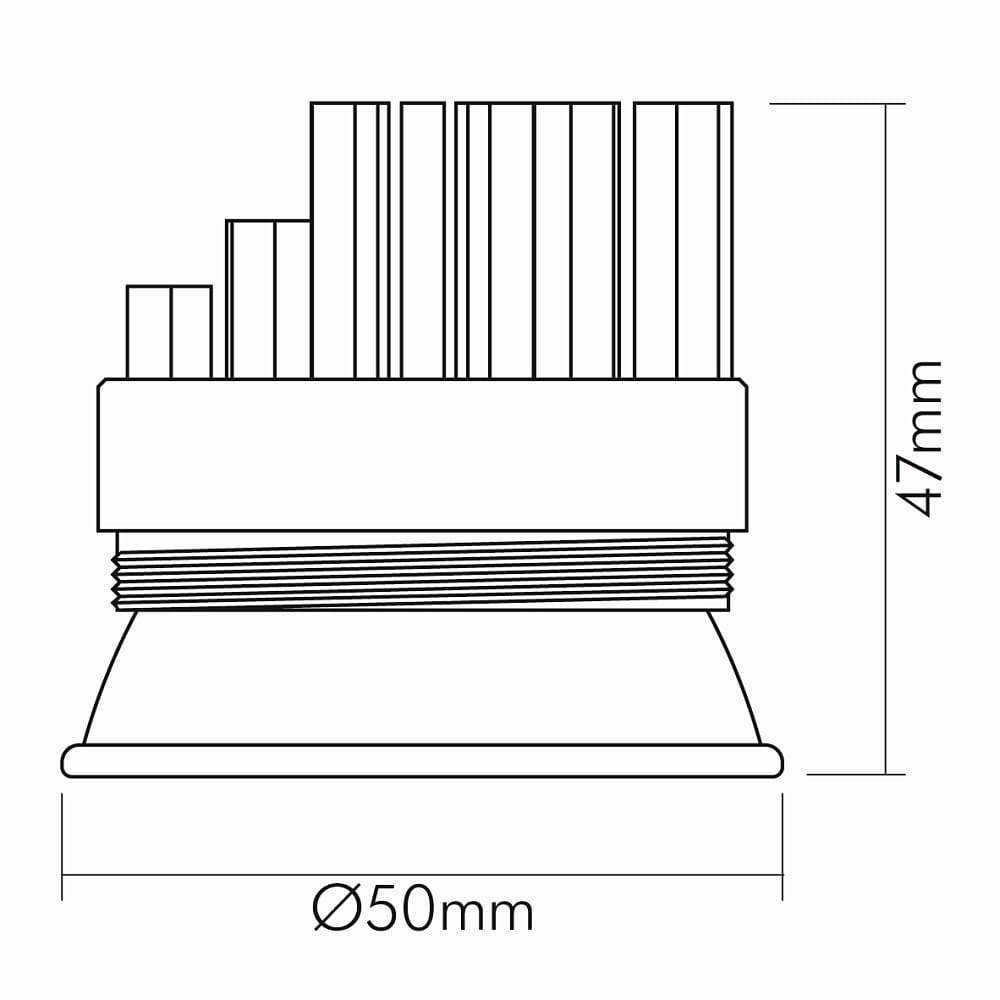

The module has a round shape and a beam angle of 38°. It comes with a driver and can be operated at a voltage of 35V and a constant current of 200mA. The size is Ø/H: 5/4.7 cm and the weight is 0.07kg. Daisy chaining for installing multiple fixtures in a row is possible.
Material and Design
The COB module is made of aluminum and glass, with a matte chrome finish. It has a swivel range of 20° and is suitable for recessed installation in furniture. During installation, care should be taken to ensure minimal convection and not to cover the module with insulation material.
Energy Efficiency and Additional Information
With an average lamp lifespan of 50,000 hours and an energy efficiency class of E, the module is both durable and energy efficient. It can be dimmed with a phase-cut dimmer and has an IP20 protection rating. Additional information on the number of LEDs, dimming compatibility, and energy consumption is also available.
Accessories and Connection Options
The COB module for N 5800 is connected with a 2-pin AMP plug system on the primary side. The primary cable length is 15cm. With a color temperature of 3000K and an energy consumption of 7kWh/1,000h, the module offers an efficient lighting solution for indoor use.
glass
Dimming: phase section dimmer
Ambient temperature ta: 0 - 40 ° C
When installing pay attention to a minimum of convection and do not cover with insulating material!
nobilé AG, Wächtersbacher Str. 78, 60386, Frankfurt/Main, Germany, nobile@nobile.de
