3-phase spot SHAPE rotatable IP20, black dimmable

High-Quality 3-Phase Track Contour Spotlight

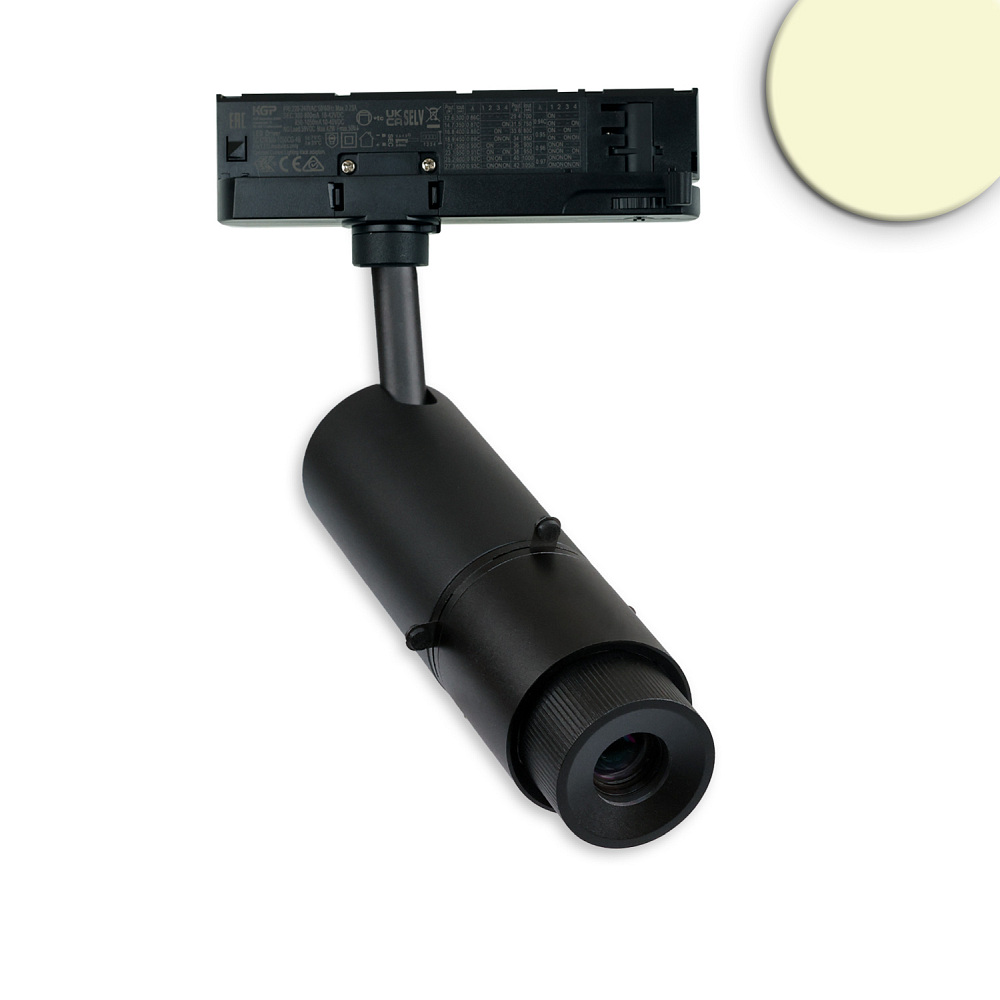

The LED 3-Phase Track Contour Spotlight SHAPE from ISOLED impresses with its compact and cylindrical design, allowing flexible installation in 3-phase high-voltage track systems. With a power consumption of 20 watts and a luminous flux of 550 lumens, this spotlight offers efficient and low-energy lighting at only 20 kWh per 1,000 hours of use. The robust aluminum housing in elegant black ensures a durable and modern look that integrates harmoniously into various lighting concepts.

Precise Light Control Thanks to Focusable Design

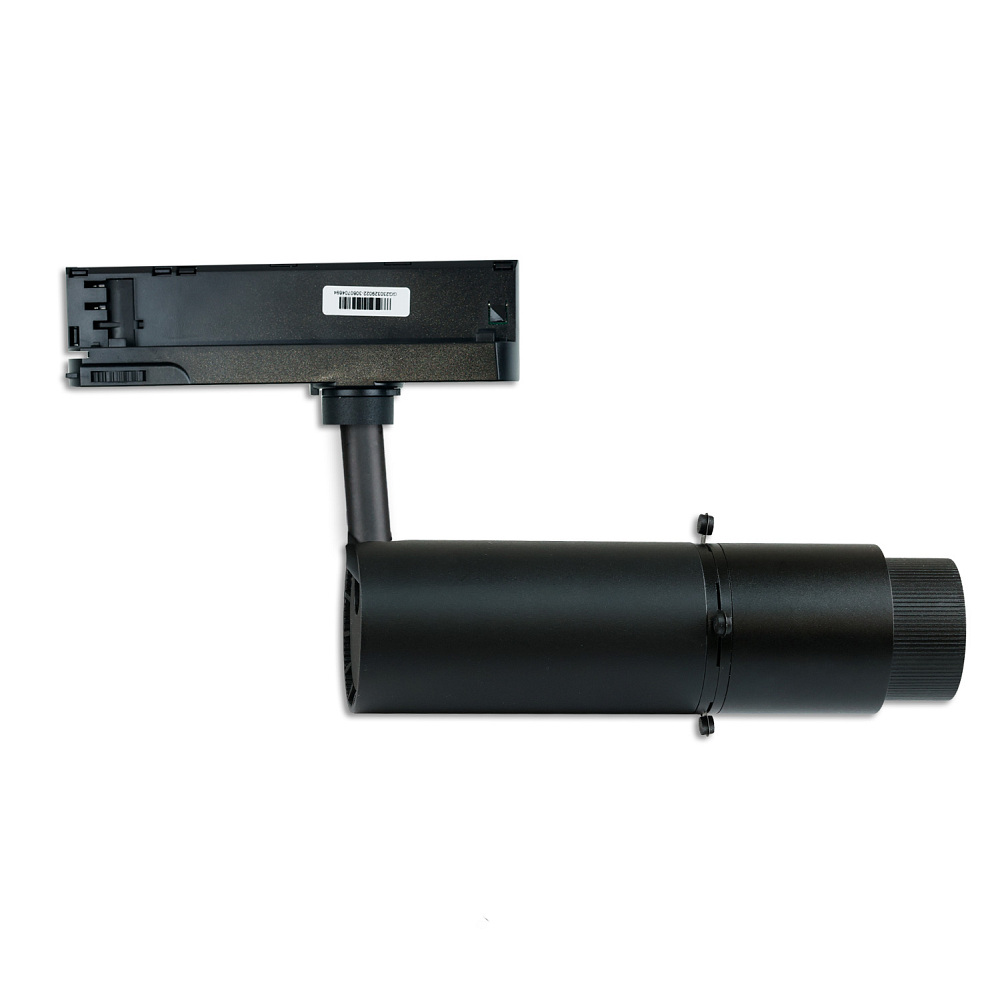

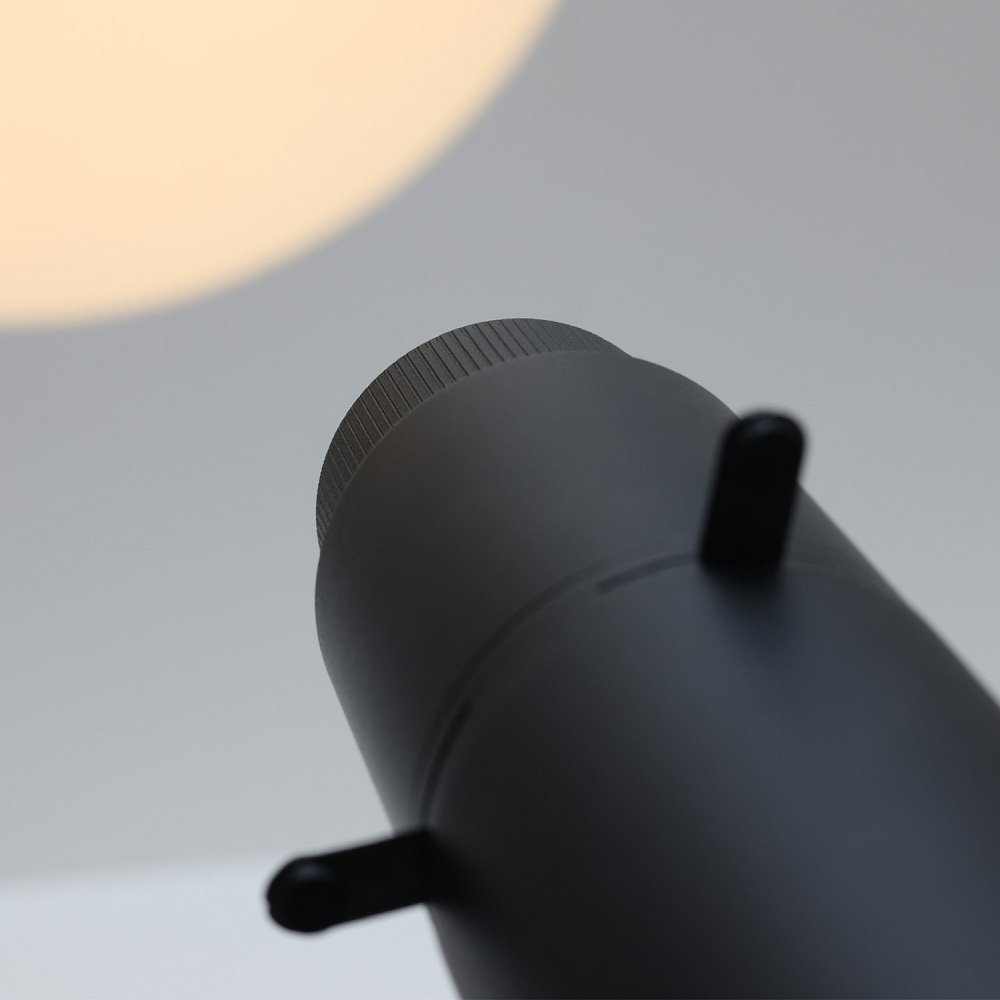

The spotlight features a rotatable and tiltable lamp head, allowing optimal alignment of the light beam. The beam angle of 30° enables targeted accentuation of objects or areas. Particularly practical is the integrated gobo filter, which allows different light patterns such as round, semicircular, square, or triangular. The light shape can be individually adjusted directly on the spotlight, enabling creative lighting arrangements for various requirements.

Excellent Color Rendering and Color Consistency

With a color rendering index (CRI) of over 90Ra, the SHAPE spotlight guarantees very natural and brilliant color reproduction that highlights even the finest details. Thanks to the McAdam ellipse SDCM3, color consistency is especially high, meaning that hardly any color deviations are noticeable between multiple identical fixtures. The neutral white light color at 4000 Kelvin provides pleasant and balanced illumination that performs well in many application areas.

Modern DALI Dimming Function for Flexible Light Control

The SHAPE spotlight is equipped with a DALI dimming function that enables stepless and comfortable regulation of light intensity. This feature is ideal for modern building automation systems and allows individual adjustment of the lighting to different moods or times of day. The device operates at a supply voltage of 220-240V and is designed for a mains frequency of 50/60 Hz.

Scope of Delivery and Technical Details

Included in the scope of delivery are the 3-phase adapter, the gobo filter, and the driver, so the spotlight is ready for immediate use. The 3-phase track, controller, and dimmer are available separately. With an average lifespan of 50,000 hours, the spotlight promises long service life. Protection class 1 and IP20 protection rating ensure safe handling within the intended area of use. With dimensions of 25.33 x 6.71 x 26.17 cm and a weight of only 0.689 kg, the spotlight is also very handy and easy to install.
