3-phase luminaire LINEAR PRO TILT DALI controllable IP20, traffic white dimmable

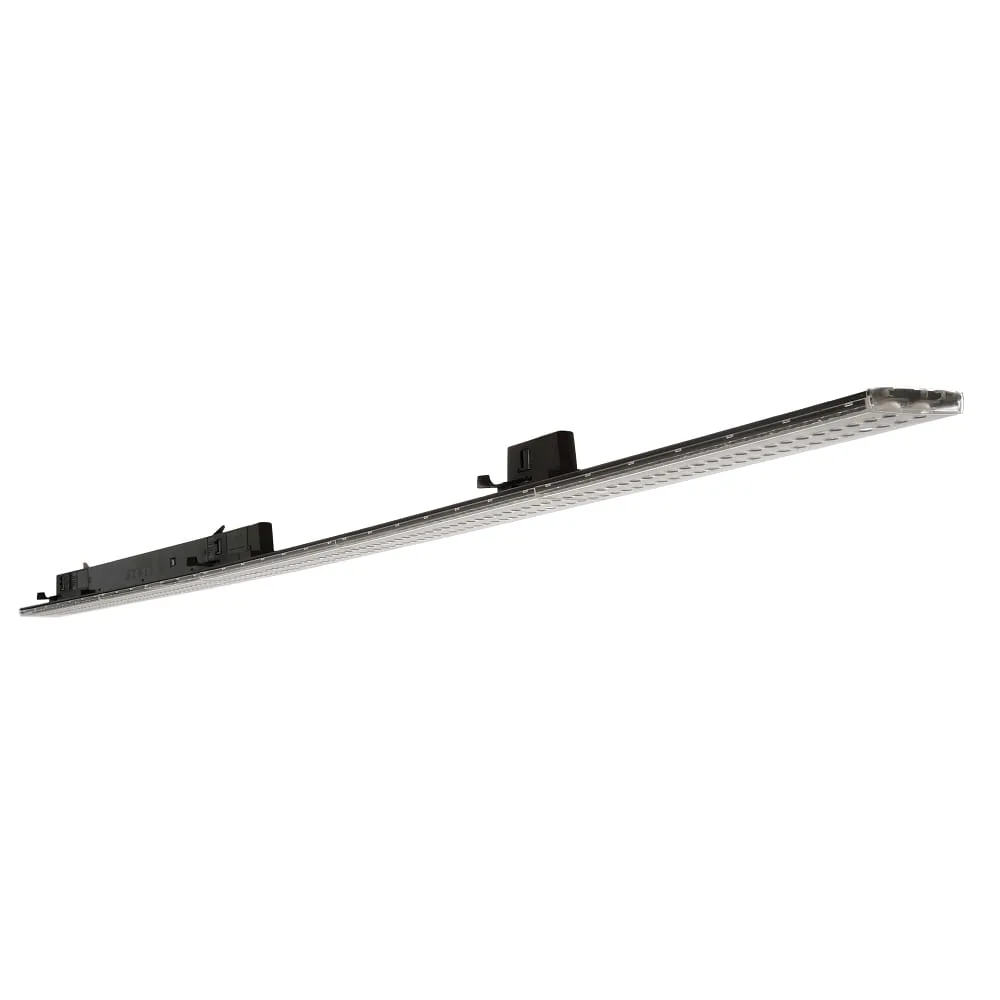

3-Phase LED luminaire LINEAR PRO TILT, 50W, 4000K, 8000lm, IP20, DALI dimmable

The 3-phase LED luminaire LINEAR PRO TILT is an energy-efficient lighting solution for indoor use. With a power consumption of 50W and a luminous flux of 8000lm, it provides bright and uniform light. The item number is D-707146.

Technical details and accessories

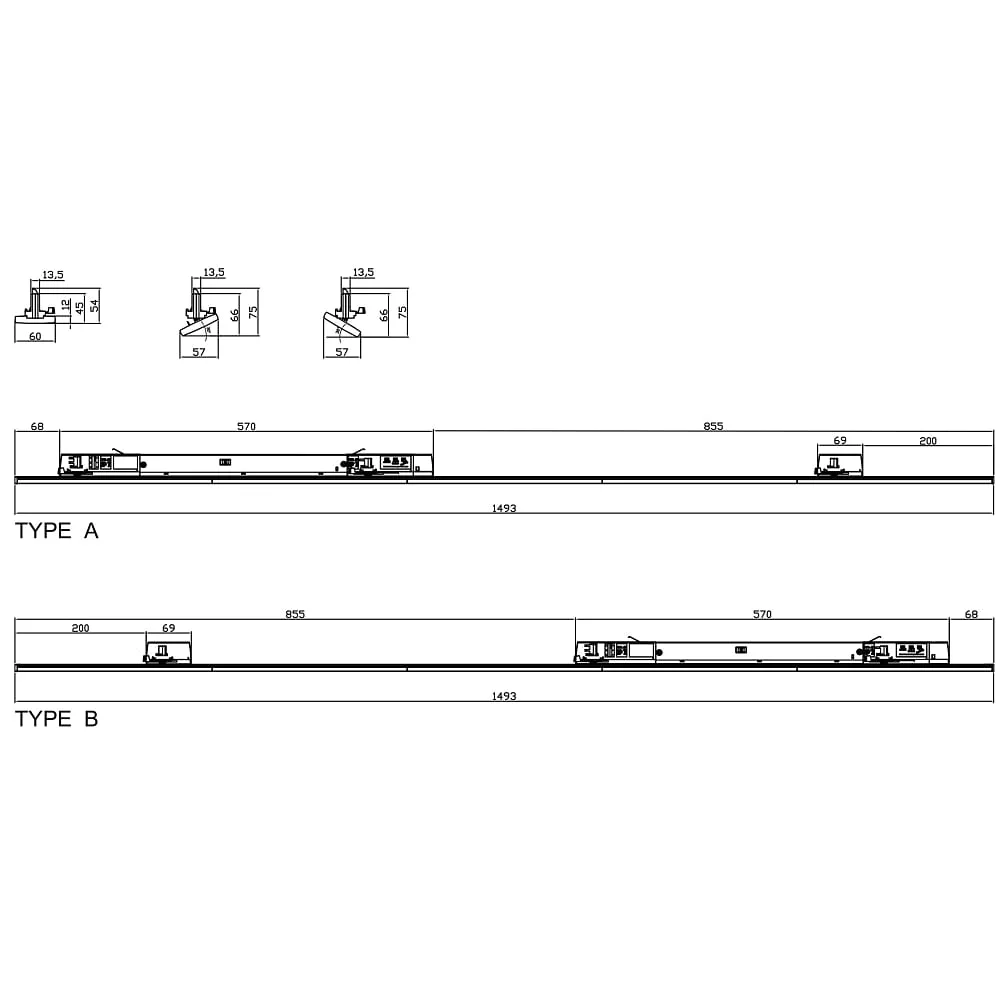

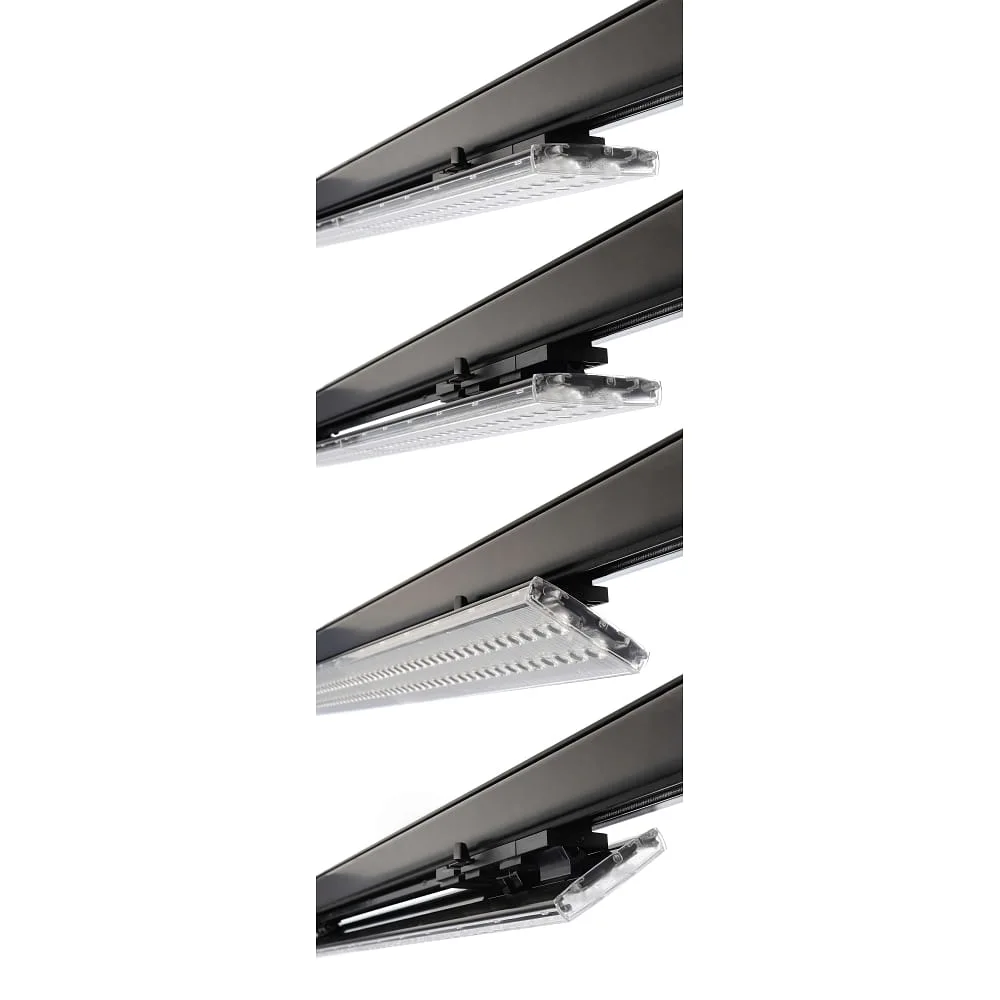

This luminaire has a beam angle of 60° and can be dimmed via the DALI system. The accessory, a power supply unit, is included. The swivel range and size of 6x5.4x149.3 cm offer flexibility during installation.

Energy efficiency and color temperature

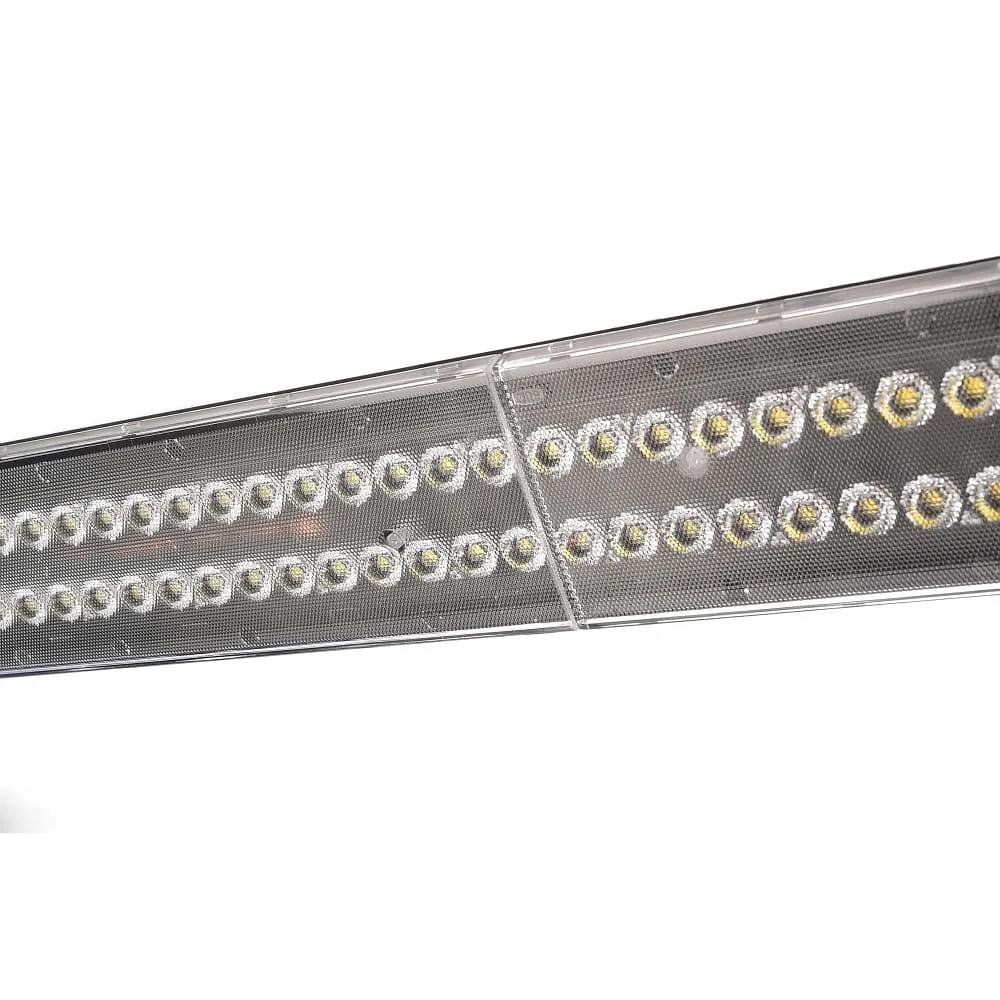

With an energy consumption of 50kWh/1,000h and a light source type LED 2835 (240 LEDs), this luminaire is particularly energy-efficient. The color temperature of 4000K provides neutral white light. The color rendering index is 90Ra.

Material and protection class

The 3-phase LED luminaire LINEAR PRO TILT is made of high-quality polymethylmethacrylate (PMMA) and steel. It has protection class IP20, making it dust and touch protected. The application area is the ceiling.

Additional information and certifications

This luminaire has a lifespan of up to 100,000 switching cycles. It comes with an adapter for the power connection. Other certified features include a high power factor of 0.9 and an operating temperature of -25 to 40 °C.
