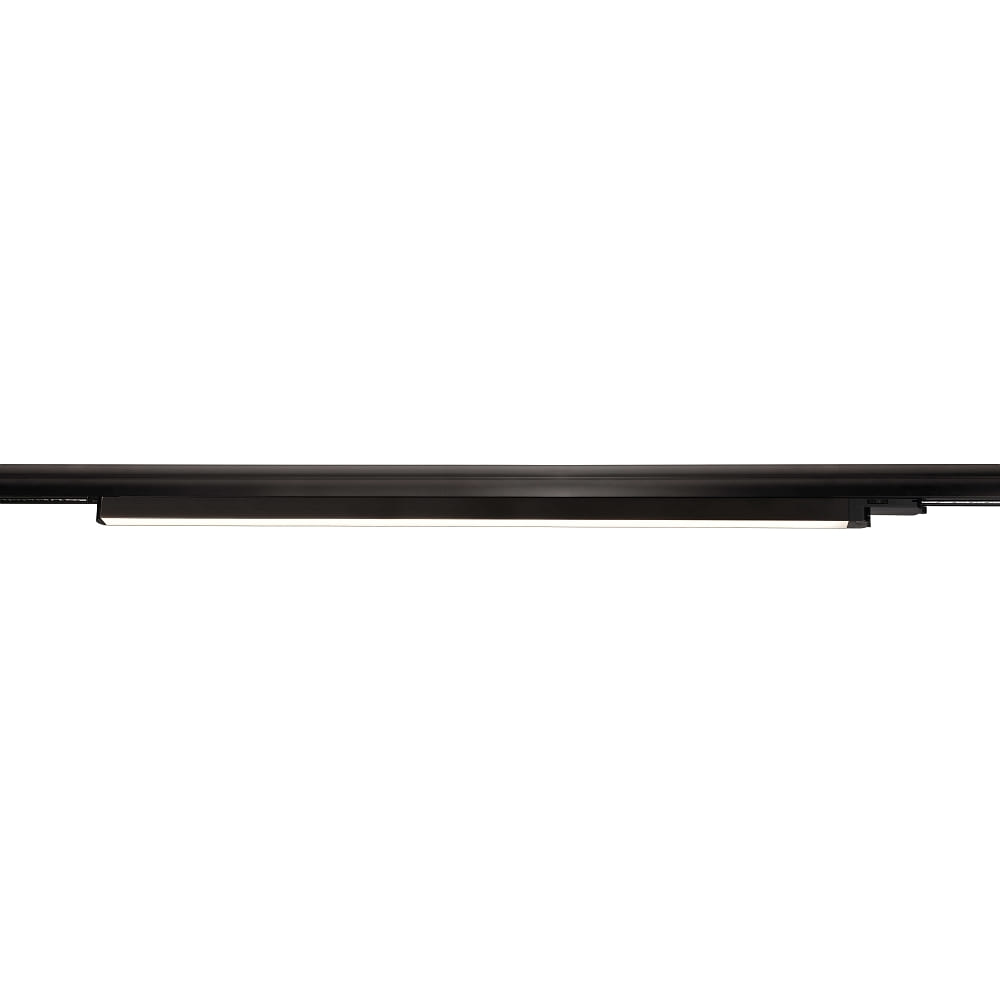

3-phase luminaire LINEAR 100 IP20, mat, graphite black

3-Phase LED luminaire LINEAR 100, 28W, 4000K, IP20

The 3-Phase LED luminaire LINEAR 100 offers a power of 28W and a color temperature of 4000K. With a luminous flux of 3200lm and a luminous intensity of 1315cd, it provides a bright and uniform illumination.

Technical details

The dimensions of the luminaire are 6.2 x 3.2 x 108.7 cm and it has a beam angle of 110°. The housing is made of aluminum and polycarbonate (PC) in matte graphite black. The energy efficiency class is E and the IP protection class is IP20.

Application and characteristics

The 3-phase luminaire is suitable for ceiling mounting in indoor areas. It has a lifespan of 50000 switching cycles and a low energy consumption of 28kWh/1,000 h. The light sources are permanently installed and not replaceable.

Further information

Further technical data include a power factor of 0.9, an operating temperature of -25 to 45 °C, and a color consistency of 6 SDCM. The luminaire offers homogeneous illumination and a color rendering index of 80Ra.

Scope of delivery and certifications

The package includes the light source (SMD LED 2835 with 108 LEDs). The EPREL number is 1632963 and the luminaire complies with applicable EU directives. With its modern design and high energy efficiency, the 3-Phase LED luminaire LINEAR 100 is an ideal lighting solution for indoor areas.
