under-cabinet luminaire S-PAD F incl. driver, set of 5, with touch dimmer IP20

5-piece set LED under cabinet light S-PAD F

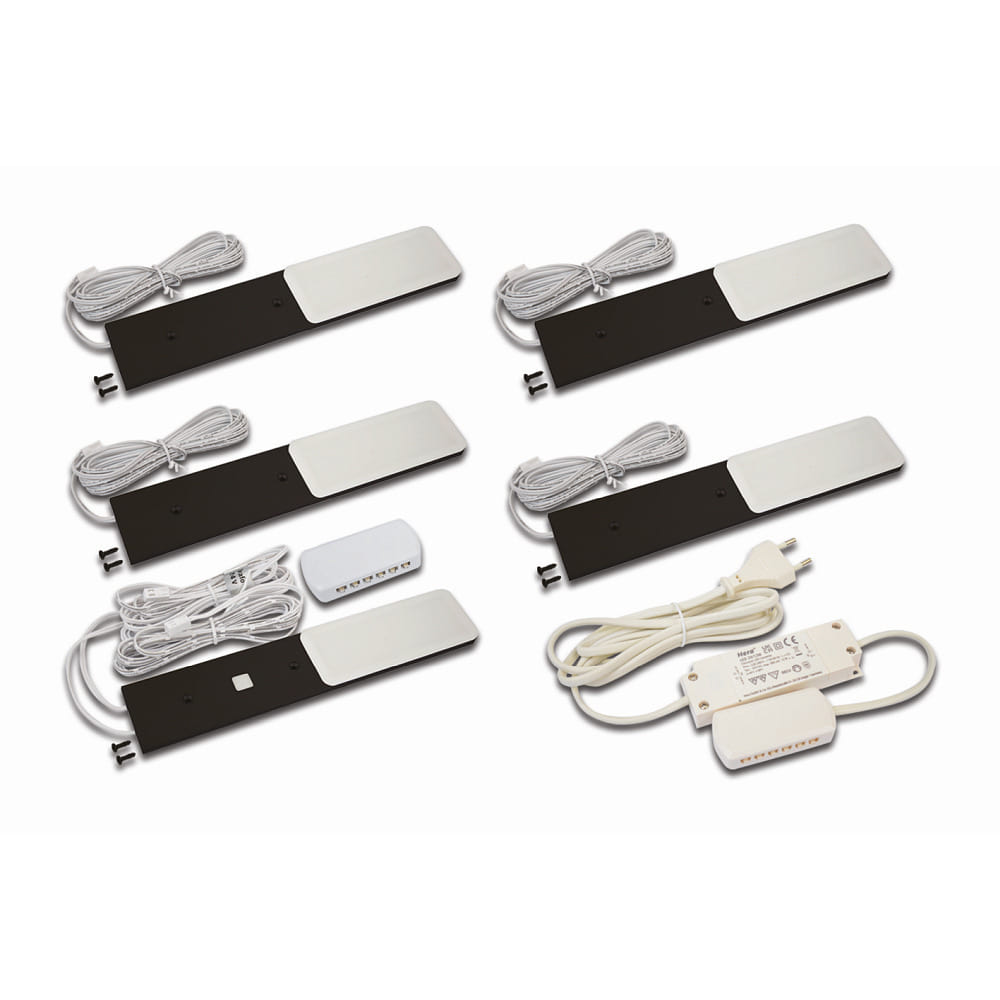

The 5-piece set LED under cabinet light S-PAD F includes everything you need for easy installation: plug-in transformer, touch dimmer, splitter, and LED 24 plug. With an energy efficiency class F and an energy consumption of 15kWh/1,000 h, this set provides efficient lighting.

Technical data

The under cabinet lights have a beam angle of 115° and a color temperature of 3000K. The color rendering index is >90Ra and the power consumption is 15W. With a light output of 90lm/W and a total luminous flux of 5x 270lm, the lights provide bright illumination.

Accessories and functions

Thanks to the integrated touch dimmer, you can adjust the brightness continuously. The set also includes connection cables, dimmer, plugs, plug-in transformer, and splitter. The memory function restores the previous dimming state after power outage.

Safety and installation

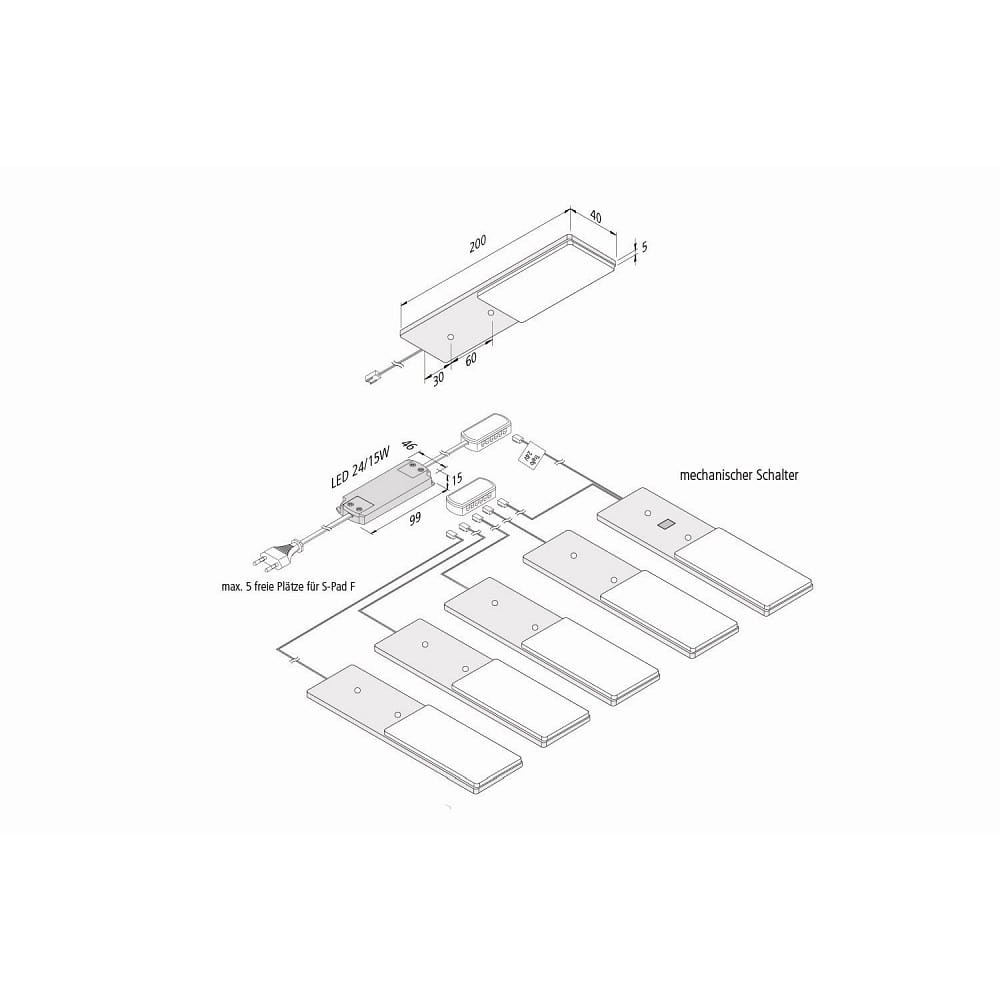

Operation from transformer output is with safe 24V DC low-voltage direct current. The LED operating device is voltage-controlled and the external operating device can be replaced thanks to plug connections. Installation is done with 3x13mm TX10 countersunk screws and a cutout for invisible cable routing.

Additional information

These ultra-thin under cabinet lights offer dimmable, homogeneous surface light and are available in black and anodized aluminum. The light distributors feature a diffuser lens/optic/panel and extremely wide beam illumination. Other sets and individual components are also available for custom lighting solutions.
