transformer box

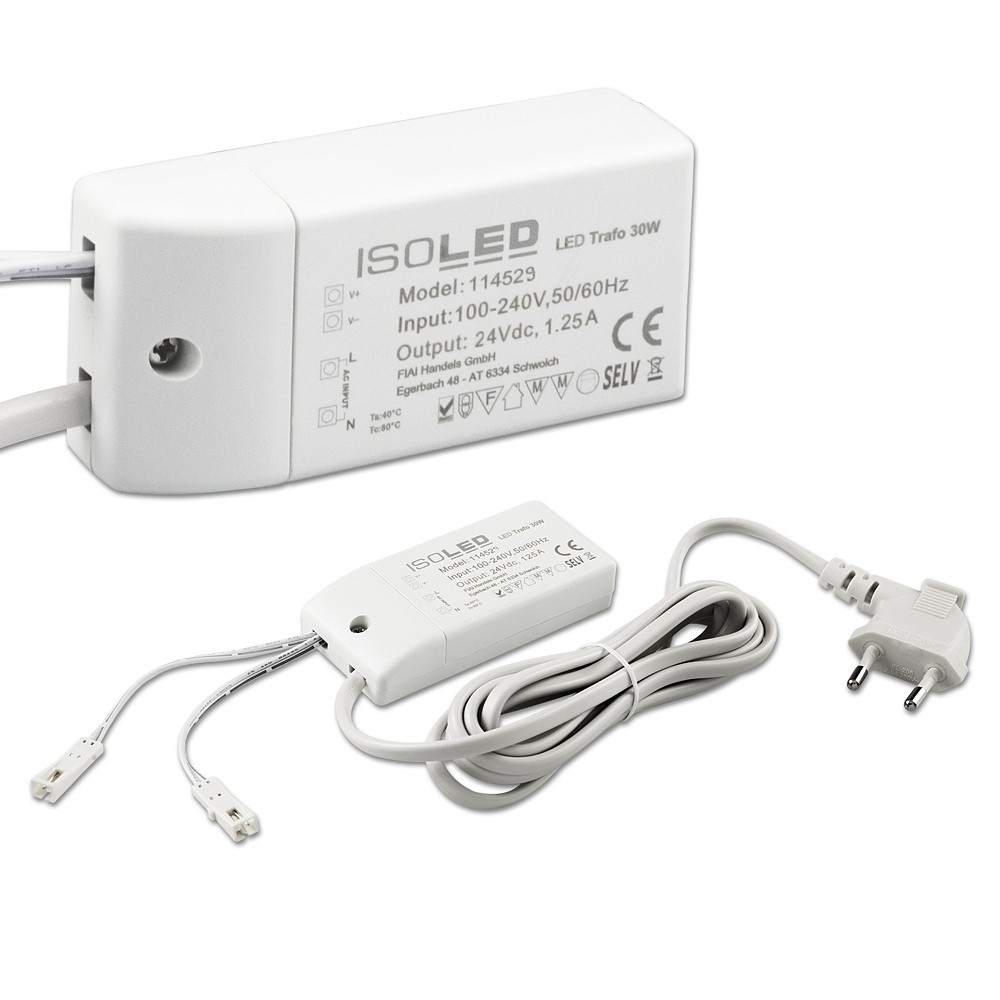

LED Transformer MiniAMP

The LED Transformer MiniAMP is a transformer with an IP20 protection rating, suitable for operating LEDs with an operating voltage of 24V/DC and a power of 0-30W. It comes with a 200cm long cable with a flat plug and two female sockets for connecting LED light sources.

Technical Details

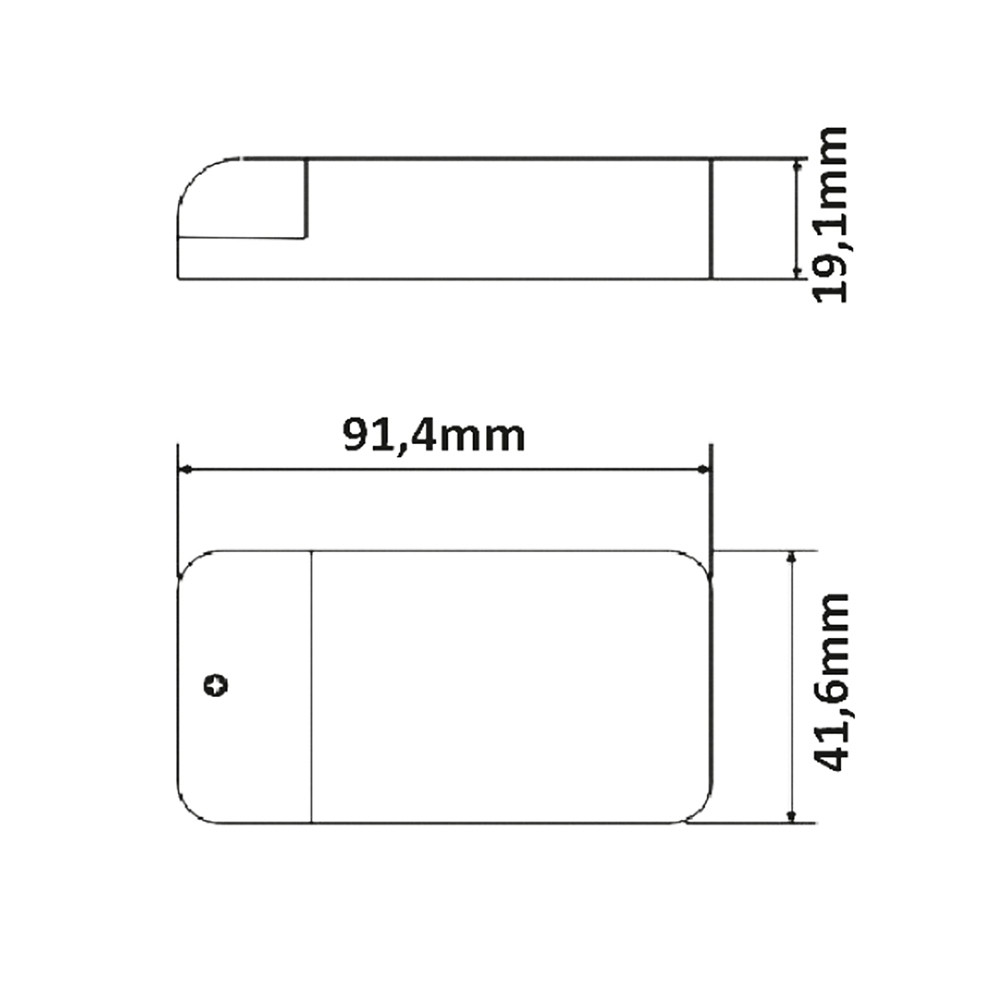

The operating voltage of the LED transformer is between 210-240V~, and the constant current is 1200 | 1240mA. With dimensions of 9.14 x 4.16 x 1.91 cm, the transformer is compact and space-saving. It is ideal for wall mounting in indoor spaces.

Reliable Safety

The LED Transformer MiniAMP is equipped with a short-circuit window safety transformer to ensure safety when using LEDs. The AMP plug allows for easy electrical connection, and the output voltage is regulated to provide constant power.

Certifications and Compatibility

The transformer complies with SIL standards according to IEC 61508 and Performance Level according to EN ISO 13849-1: Level a. This makes it both safe and reliable in operation. Direct mounting is possible, and it is compatible with a variety of LED light sources.

Versatile Applications

With the LED Transformer MiniAMP, you can efficiently and safely operate your LED lighting in indoor spaces. Thanks to its compact size and easy installation, it is the ideal solution for a variety of applications, from residential spaces to commercial environments.
