signal repeater 5X 8A / 12V-480W / 24V-960W / PWM / MULTI COLOUR 5 channel, blue
Rutec Projekt
98,56 EUR
excl. Shipping costs (from 99,00 EUR free shipping) / incl. 19 % VAT
RRP (manufacturer): 99,96 EUR
Price below RRP
Shipping time: 7-10 days
Product no.: RUP-PHZ492
EAN: 4251835804929
In stock: 50

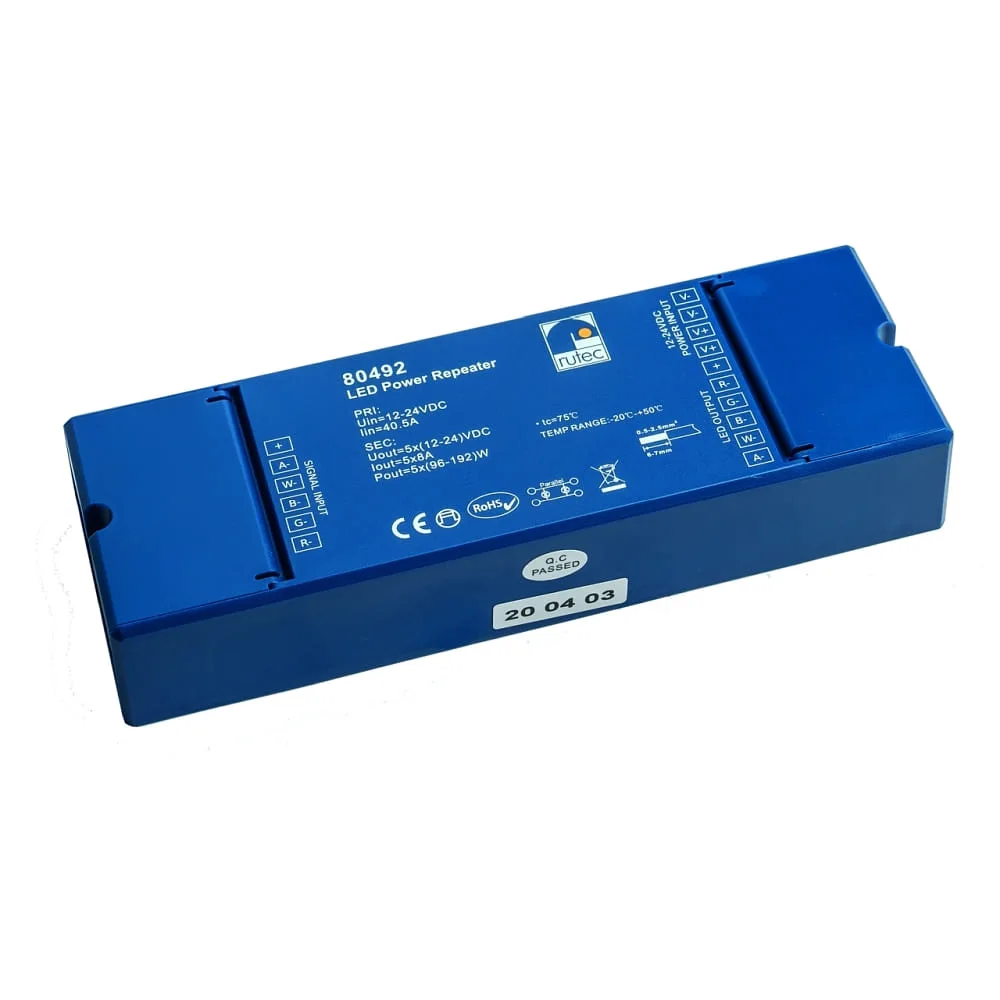

LED Power Repeater for PWM Dimming Signals
The LED Power Repeater for PWM Dimming Signals by Rutec Projekt is a high-quality 5-channel signal repeater suitable for an operating voltage of 12-24V. With a maximum power of 480W at 12V and 960W at 24V, this repeater is ideal for controlling multi-color LED lighting.
Technical Specifications
The maximum current capacity of the repeater is 25A, and it can operate in a temperature range of -20 to +50 °C. With a protection class of 3 and IP protection rating IP20, this repeater is both safe and durable. The size of the repeater is L 17 cm, W 5.9 cm, H 2.88 cm.
Functions and Applications
The LED Power Repeater for PWM Dimming Signals operates with pulse width modulation (PWM) and has 1 to 5 channels with 8A per channel. It can be combined with various accessories such as dimmers and drivers to create a flexible and individual lighting solution.
Easy Installation
Thanks to the terminal connection for the power supply, the installation of the repeater is easy and straightforward. The product comes with all necessary connection cables and can be integrated into existing lighting systems without much effort.
More Information
For more details on the LED Power Repeater for PWM Dimming Signals, multi-color, 5-channel, refer to the datasheet and manual. This product is ideal for use in residential spaces, offices, shops, and other commercial environments where precise and versatile lighting control is required.
driver - not included in delivery
rutec Projekt GmbH, Carl-Zeiss-Str. 15, 28857, Syke, Germany, info@rutecprojekt.de
