Rotatable, round LED surface mount luminaire LED PIPE, Ø1.4cm, 61cm, 15.0W 2700K

Rotatable, round LED surface-mounted luminaire LED PIPE

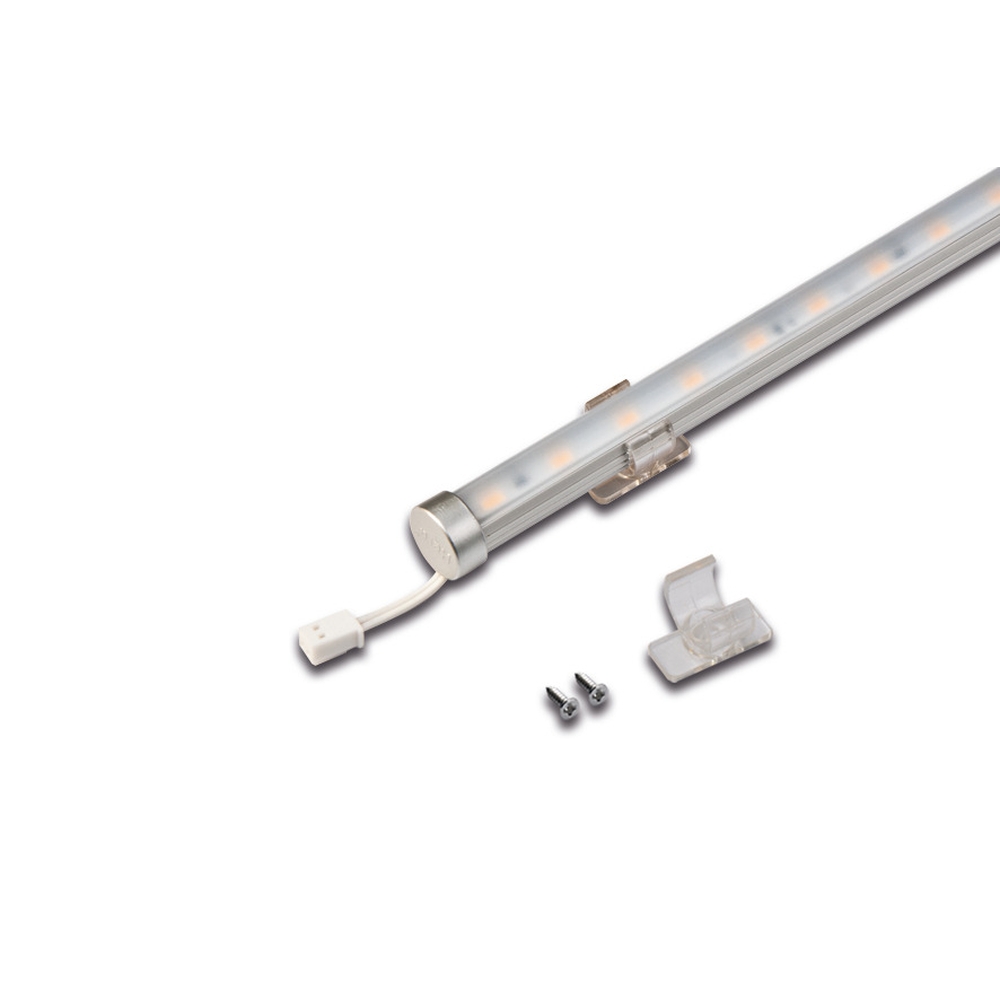

The round LED surface-mounted luminaire LED PIPE is a versatile lighting element for use in furniture or on the wall. With a diameter of 1.4 cm and a length of 61 cm, it offers a discreet and modern lighting solution for indoor use.

Technical details

The operating voltage of the LED PIPE is 24V= and the constant current is 625mA. The power consumption is 15W and the light color is extra warm white with a color rendering index of 90-100Ra. The luminaire is dimmable and can be adapted with suitable accessories.

Material and design

The LED surface-mounted luminaire is made of aluminum and plastic and has an IP protection rating of 20. The design is round and the color is aluminum with opaque light emission. The light distribution is symmetrical with a luminous flux of 935lm and a luminous efficacy of 61lm/W.

Installation and connection

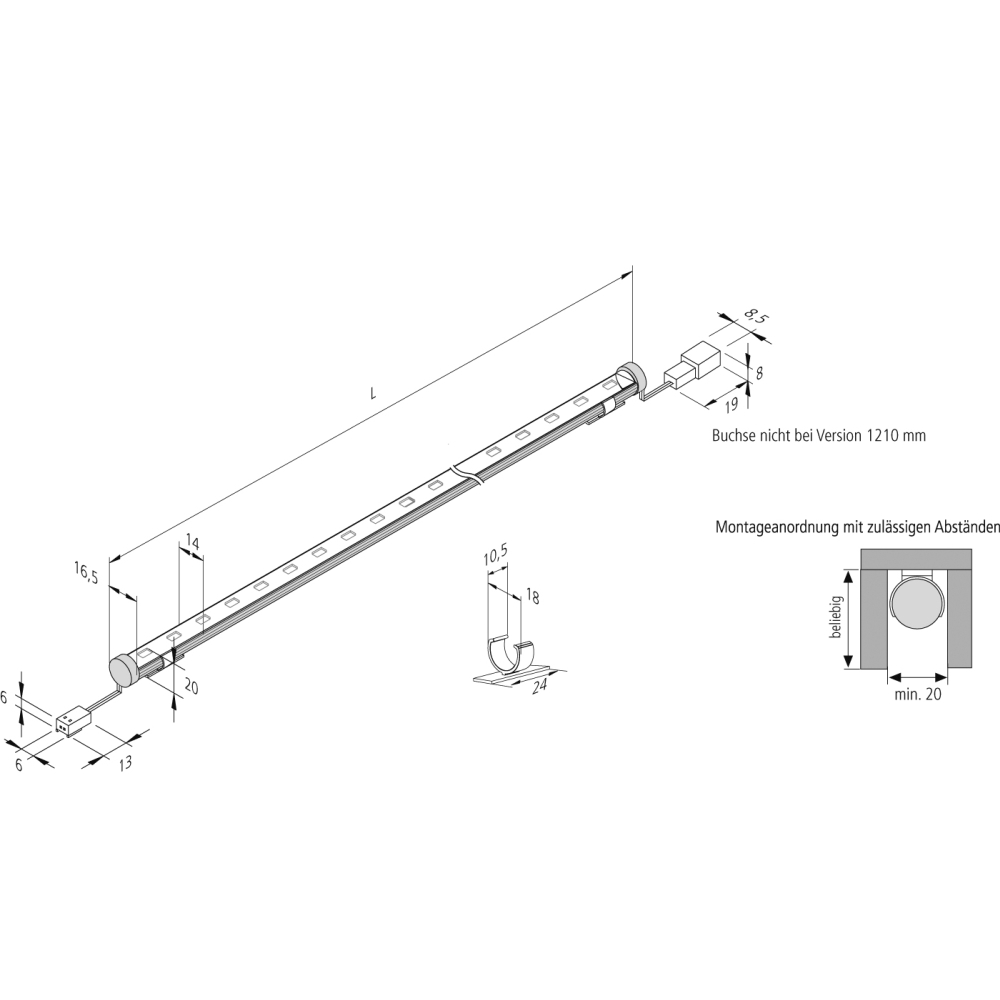

The LED PIPE can be installed as both recessed and surface-mounted. The power connection is made via the LED-24 plug-in system and the plug types are LED-24. The ambient temperature for operation is between -5 and 35°C.

Additional information and certifications

The LED surface-mounted luminaire has an average lamp lifespan of 50000 hours and is not suitable for LED replacement. It has additional quality features such as a glow wire test according to IEC 60695-2-11 and is certified as energy efficiency class G. With a color temperature of 2700K, it offers a pleasant and atmospheric lighting experience.
