Rotatable, round LED surface moount luminaire LED PIPE F, homogeneous area light, 31cm, 5.8W 3000K

Hera



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Rotatable, round LED surface-mounted luminaire LED PIPE F

The LED PIPE F is a rotatable, round surface-mounted luminaire that produces homogeneous area lighting. With a diameter of 16.5 cm and a length of 31 cm, it offers a compact size ideal for use in furniture and on walls. The luminaire is specifically designed for indoor use and features an elegant aluminum surface combined with an opal light outlet.

Technical details and features

The LED PIPE F is operated with an LED-24 plug-in system and requires an operating voltage of 24V=. With a constant current of 271mA and a power consumption of 6.5W, it offers high energy efficiency. The color temperature is 3000K and the color rendering index ranges from 90-100Ra, ensuring excellent color rendering. The luminous flux is 345lm with a light output of 51lm/W.

Installation and application

The LED surface-mounted luminaire can be used for both recessed and surface mounting. With an extremely wide beam angle of over 80°, it is particularly suitable for illuminating larger areas. The diffuser ensures uniform light distribution, while the aluminum and plastic materials ensure a robust and durable construction.

Additional information and accessories

The LED PIPE F comes with a voltage-controlled LED operating device. The luminaire is not dimmable, but can be equipped with appropriate accessories for dimming functions. With an average lamp lifespan of 60000 hours, it offers a long service life. The IP protection rating is 20, protecting the luminaire from dust and contact.

Energy efficiency and certification

The LED PIPE F belongs to energy efficiency class G and meets the requirements for an efficient lighting solution. Certified with EPREL number 944547, it complies with EU directives. The luminaire offers easy installation and reliable performance for indoor use.

Colour:
opal
aluminium

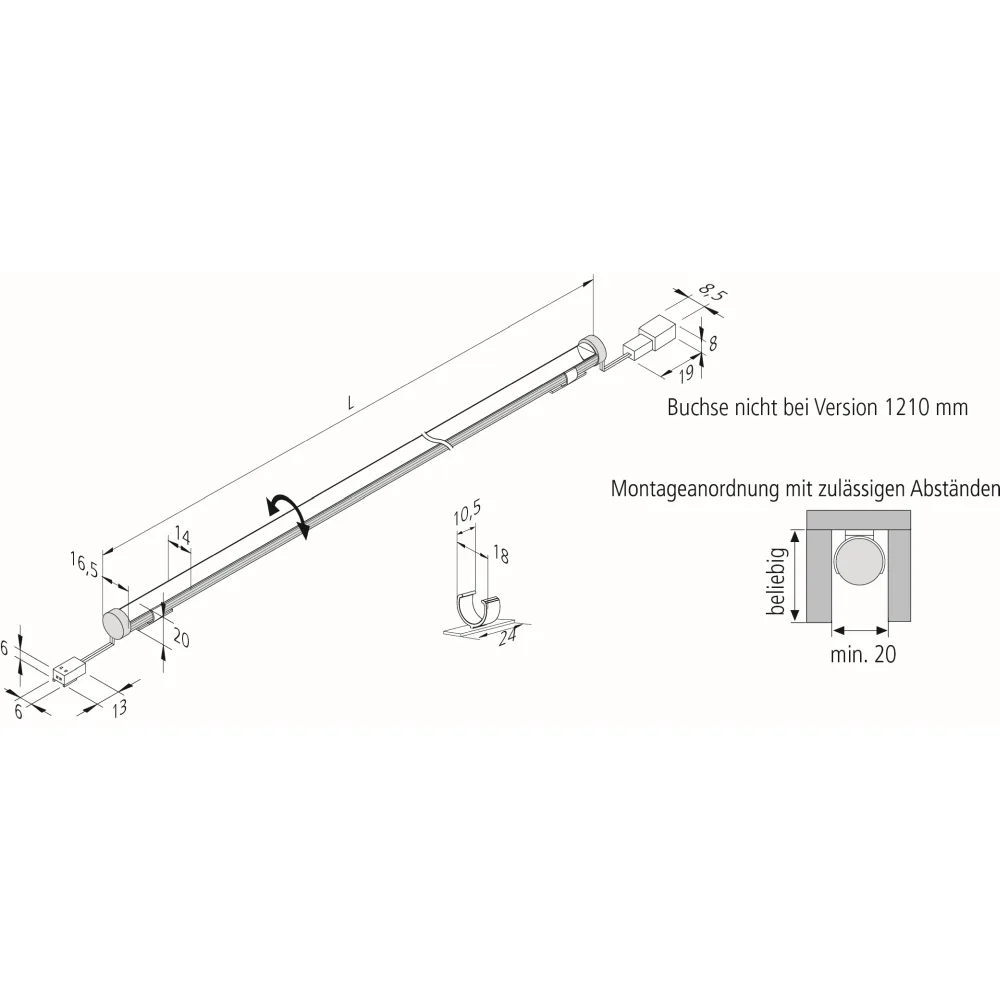

Dimension:
Ø∕ L: 16,5∕ 31 cm
Material:
aluminium
plastic
Product type:
surface luminaire
Lamp shape:
round
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
Application area:
only suitable for indoor use
Field of application:
wall
furniture
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Constant current:
271 mA
Power consumption:
6,5 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
warm white
Light emission:
symmetric
Light flux:
345 lm
Light yield:
51 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
90-100 Ra
1A
IK-Rating:
IK00 no impact resistance
Lamp current:
271 mA
Fitting opening square/rectangular width:
31 cm
Fitting opening square/rectangular length:
2 cm
Plug type:
LED 24 plug-in system
Mounting:
surfaced mounting
recessed mounting
Protection class:
3
IP-protection class:
20.00
Additional information:
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
G
EPREL No:
944547
Article number:
HE-61001610102
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
