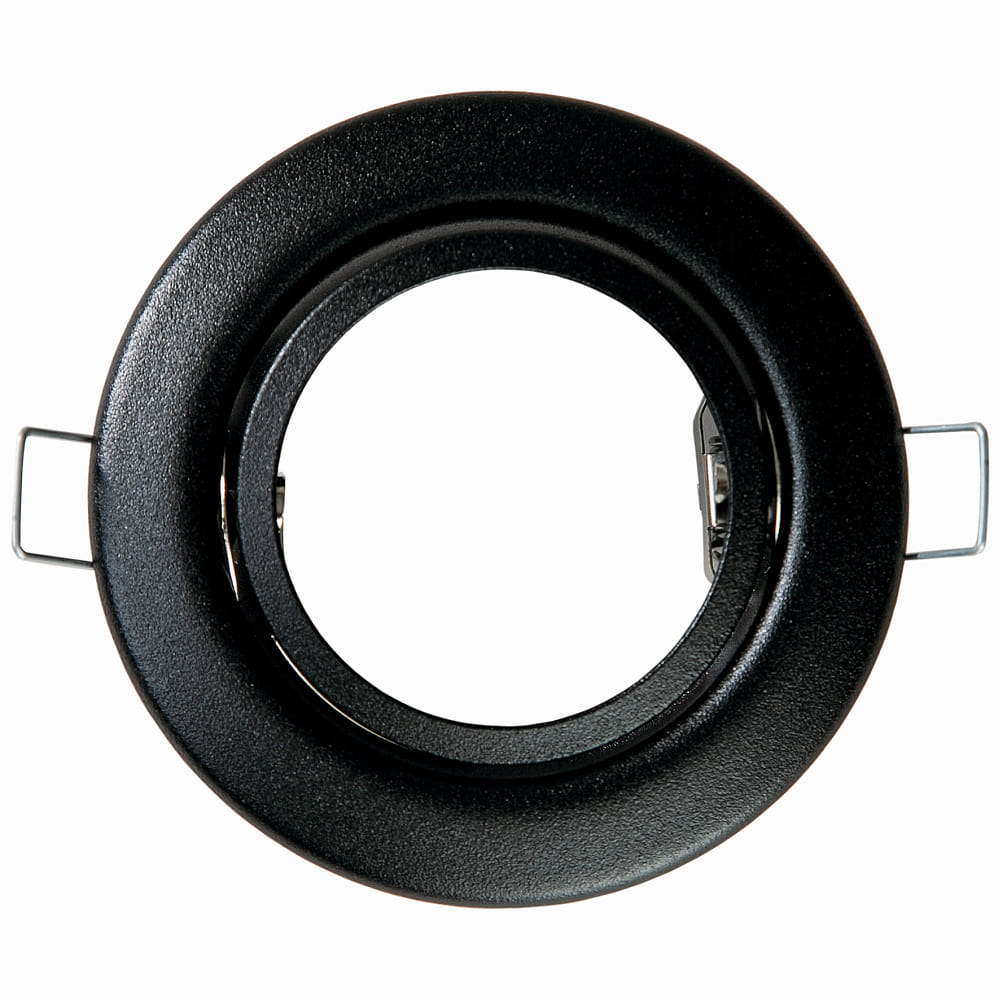

Recessed spot DOWNLIGHT D 3830, Ø 8.8cm, swiveling, matt black

Elegant and Functional Design

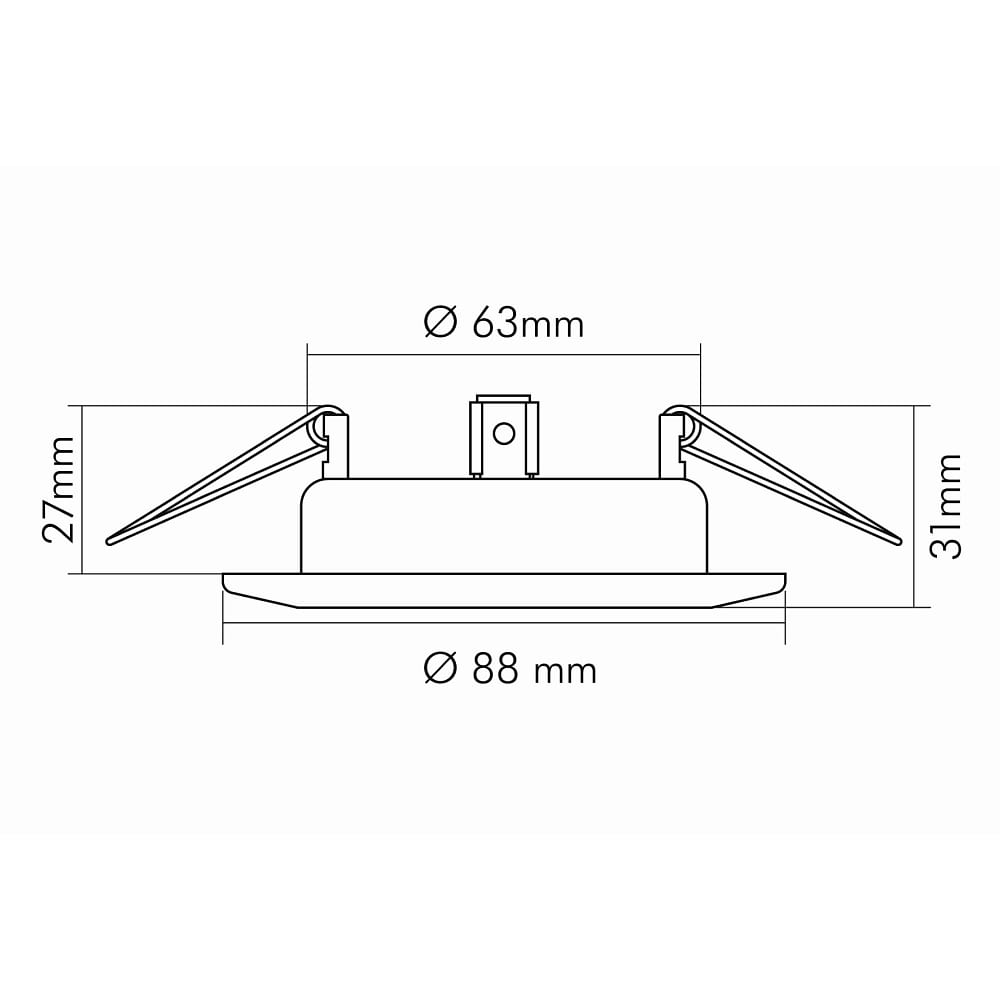

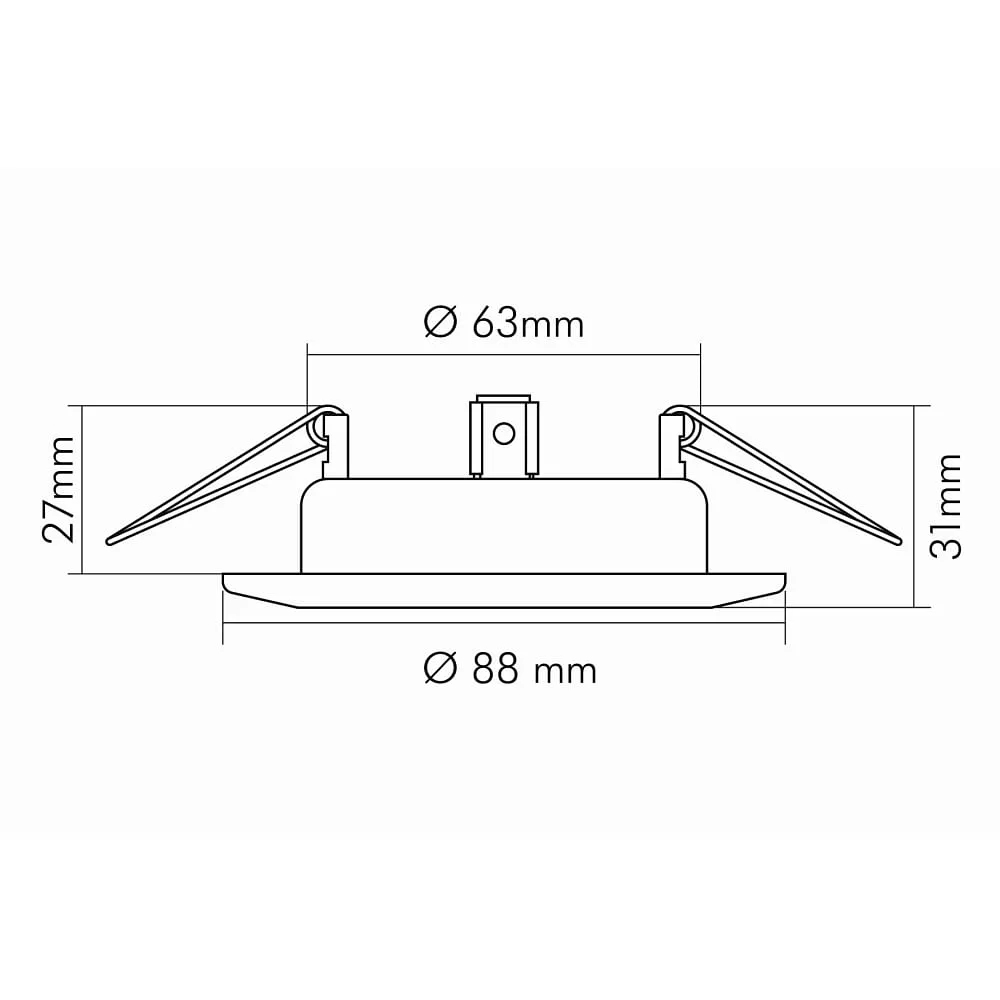

The recessed spotlight DOWNLIGHT D 3830 from nobilé impresses with its modern, matte black finish and a compact size of Ø 8.8 cm with a depth of only 3.1 cm. The adjustable design allows flexible orientation of the light beam, so you can always set optimal lighting. Weighing only 0.139 kg, the spotlight is particularly lightweight and easy to install.

Technical Details and Connection

This downlight operates at a voltage of 12 volts and features a 30 cm long connection cable with open wire ends on the primary side, facilitating connection to various power sources. The installation depth is only 2.7 cm, while the cutout requires a circle with a diameter of 6.3 cm. Due to protection class 3, the spotlight is especially safe in operation.

Lighting and Dimming Functions

The recessed spotlight is designed for a light source that produces direct light with symmetrical light distribution. This ensures uniform illumination of the desired area. The lamp can be adapted to your individual lighting needs with appropriate dimmable bulbs and accessories, providing a pleasant and flexible lighting atmosphere.

Practical Accessories and Notes

The scope of delivery includes the connection cable; however, the control gear and socket are not included in the package and must be purchased separately. It is important to ensure that convection is not obstructed during installation and that the spotlight is not covered with insulating material to guarantee optimal heat dissipation and extend the lifespan of the luminaire.

Versatile Applications and Protection

With the IP rating IP20, the recessed spotlight is ideally suited for protected environments. The temperature resistance ranges between 0 and 25 degrees Celsius, allowing for broad use within these values. Overall, the nobilé DOWNLIGHT D 3830 offers a high-quality and flexible lighting solution that impresses with quality, easy installation, and energy-efficient technology.
