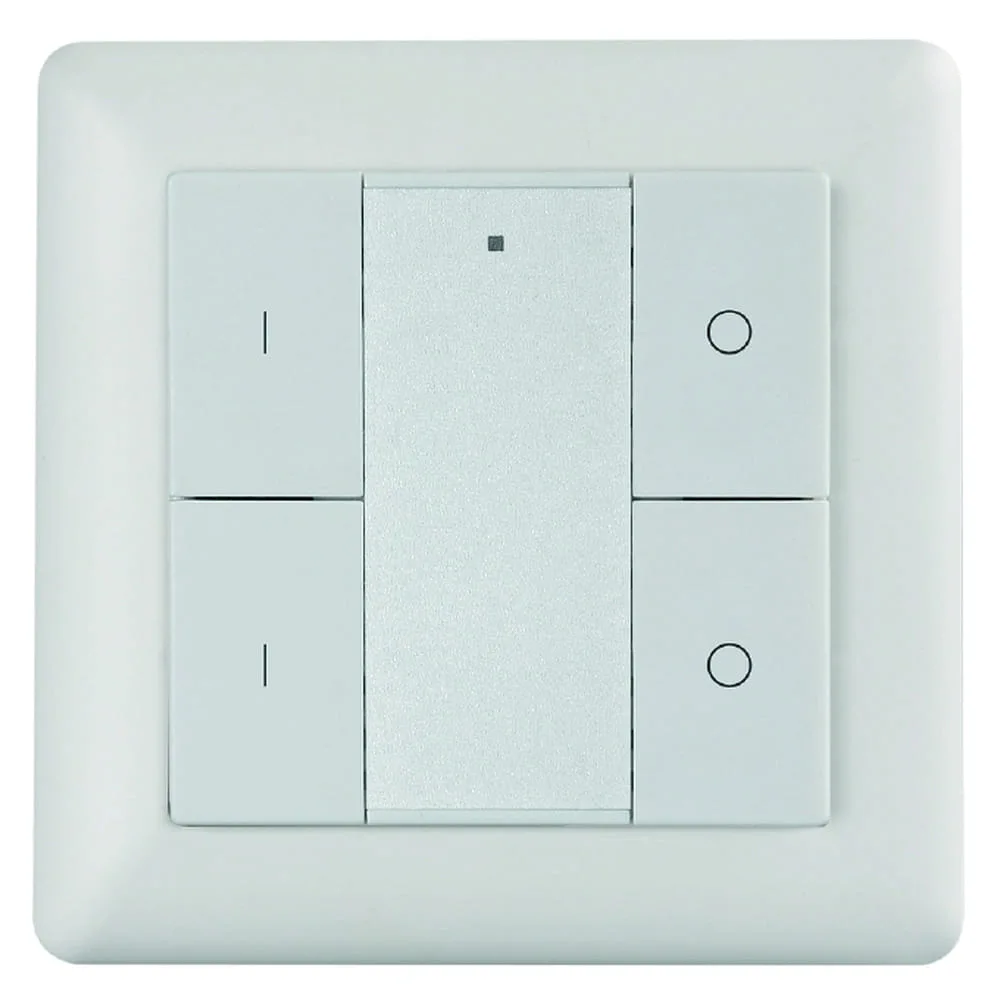

radio wall switch 2 ZONE RF SINGLE COLOUR 2 channel, with output for radio control signal (RF), white

Product Description:

The wireless wall switch for straight switch programs from Rutec Projekt has been specially designed for monochrome controls such as switching and dimming. With an inner dimension of 5.5 x 5.5 cm, it fits perfectly into all switch programs with straight edges and corners.

Technical Details:

The wireless wall switch operates with a voltage of 3V and is powered by a 3V CR2430 button cell battery (not included). It has a range of up to 30 meters without obstacles and uses a radio carrier frequency of 868 MHz.

Functions:

The wireless wall switch is 2-channel and 2-zone capable, allowing for flexible control. The dimming range extends from 0.1 to 100%, and thanks to the memory effect, the last set dimming value is automatically recalled when turned back on.

Expansion Options:

Up to 8 wireless wall switches can be connected to each radio receiver to ensure comprehensive control. The accessories include a receiver (included), dimmer (not included), button cell battery (not included), and switch (not included). Installation is easy by attaching it to the switch, without the need for a power connection.

Dimensions and Protection Classes:

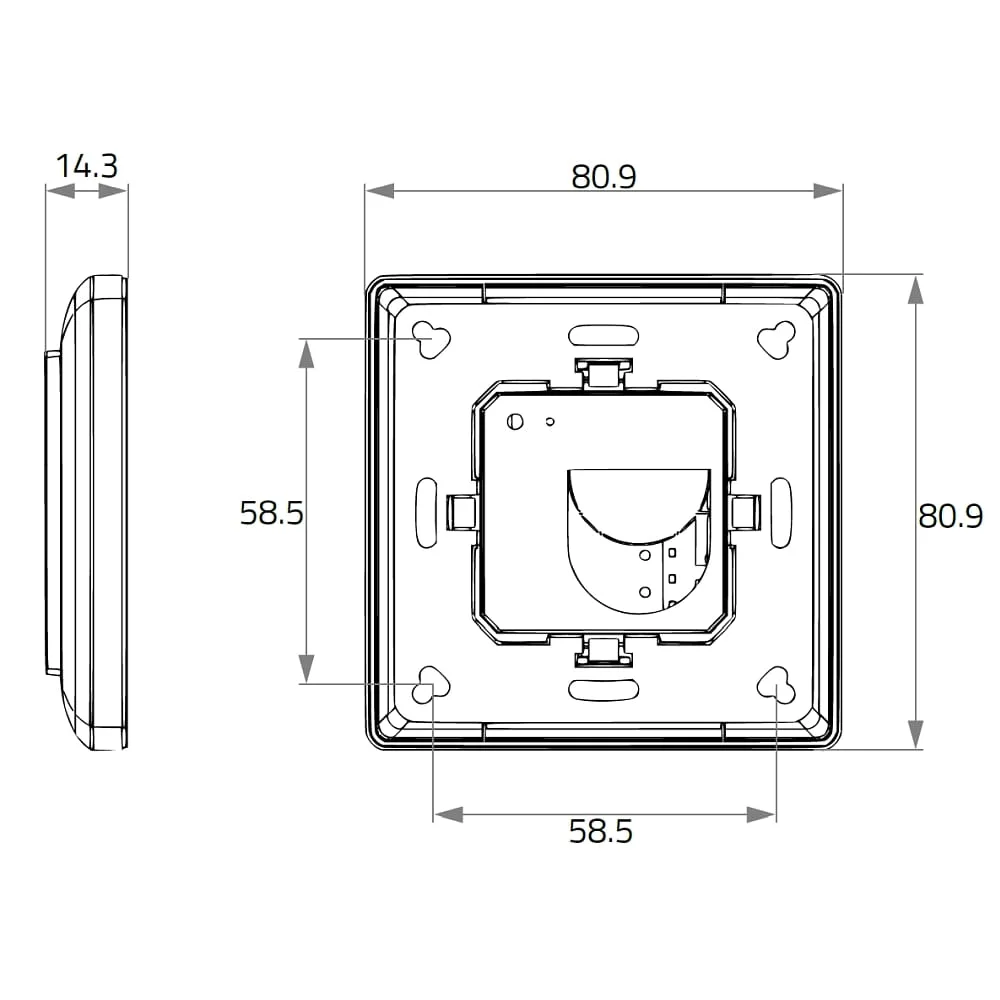

The wireless wall switch has dimensions of 8.09 x 8.09 x 1.43 cm and complies with protection class 3 and IP20 protection rating. It is designed for indoor use and provides reliable and convenient control for your lighting systems.
