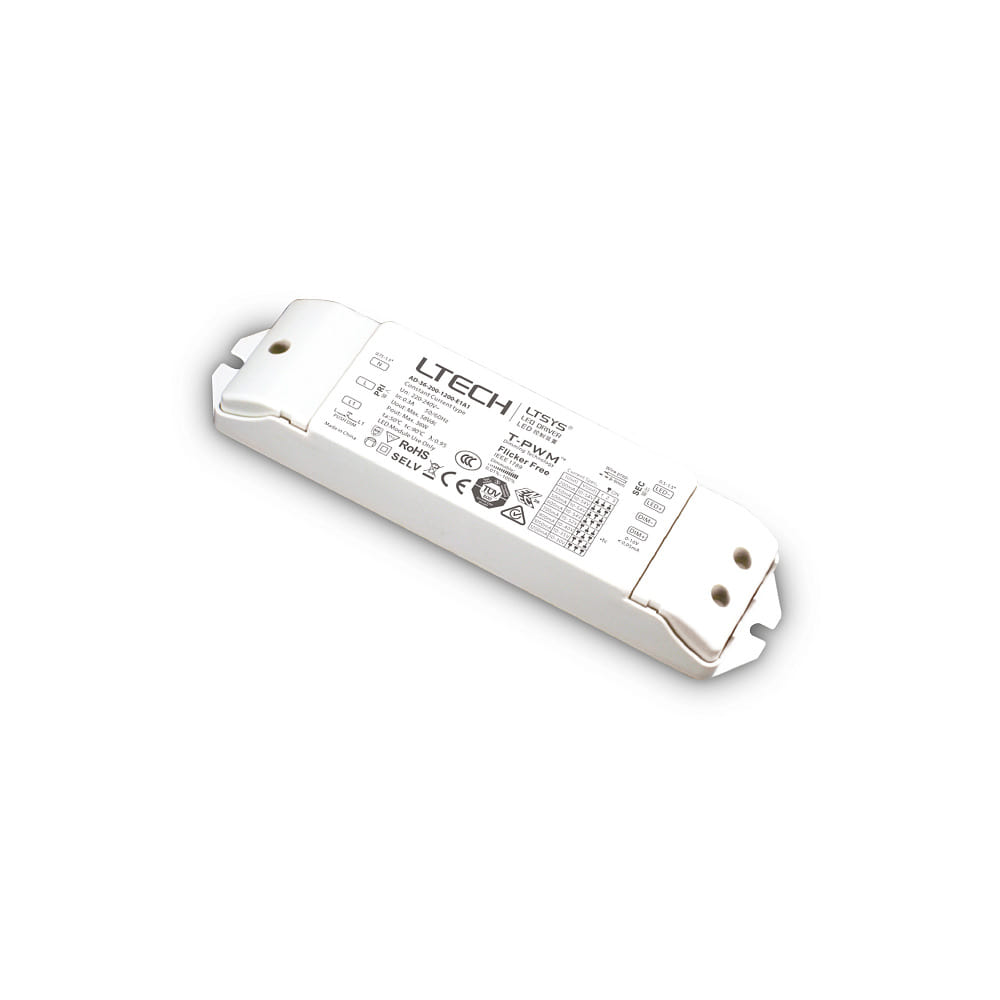

Power supply for 24 Vdc LED Strips, IP20, 1-10V / Push-dimmable, 36W

Operating device for 24 Vdc LED strips, IP20, 1-10V / Push-dimmable, 36W

This operating device is specially designed for the operation of 24 Vdc LED strips. With a power consumption of 36W, it provides bright and energy-efficient lighting. Thanks to the possibility of dimming from 1-10V or push-dimming, the light intensity can be adjusted according to your preferences.

Technical details

The operating device has an operating voltage of 220-240V~ and a mains frequency of 50/60Hz. It is equipped with a short-circuit window safety transformer to ensure safe use. It also provides protection at over 110° in case of a fault, increasing the longevity of the device.

Brand and size

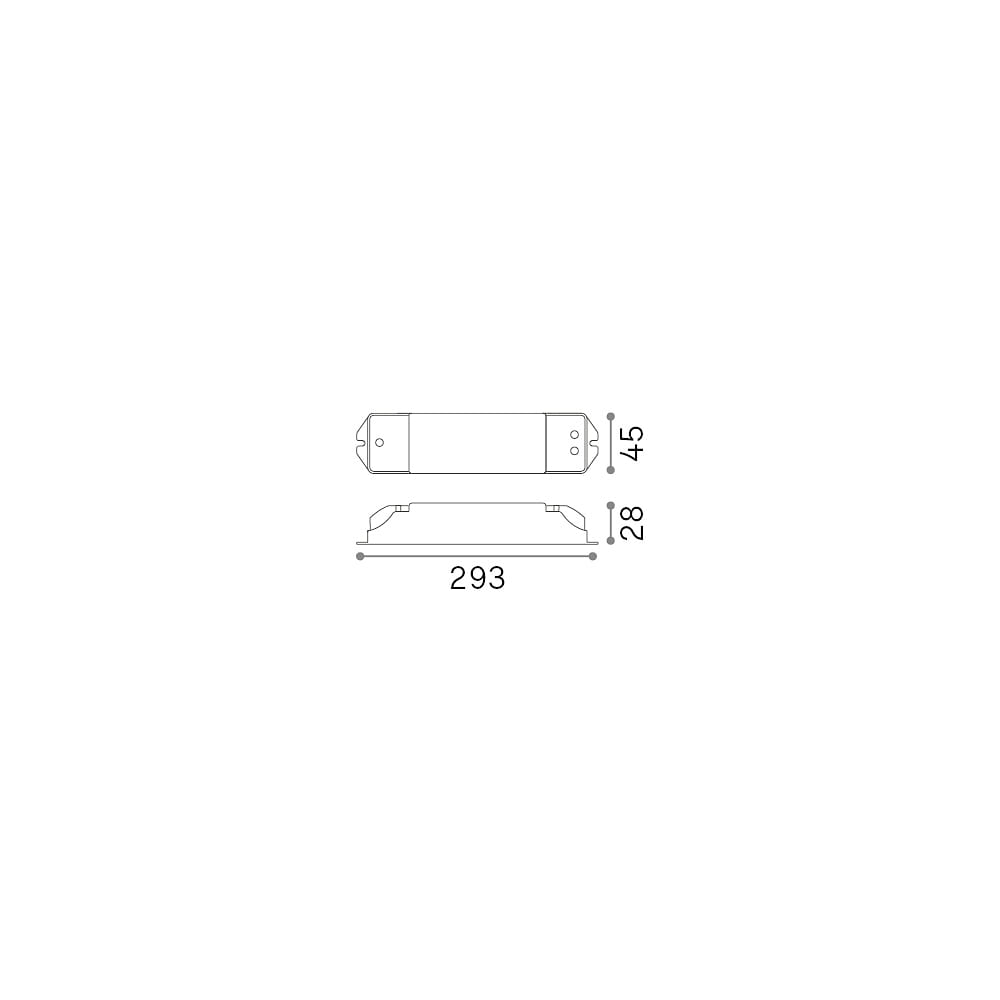

The operating device comes from the renowned brand Ideal Lux, known for its high-quality products. With a size of Length/Width/Height: 17.5/4.4/3 cm, it is compact and easy to install. The IP20 protection class ensures that the device is protected against dust and moisture.

Flicker free and Analog Dimmart

Thanks to flicker free technology, annoying flicker effects are avoided, providing pleasant and eye-friendly light. The 1-10V Analog Dimmart enables precise and easy brightness control. The operating device is also dimmable, allowing for individual light customization.

Product type and additional information

The operating device belongs to the product type LED driver and is therefore specifically designed for use with LED strips. With the EAN number 8021696244556 and the article number IDEA-244556, it is easy to identify. Additional information such as the protection functions and compact design make this device an ideal choice for lighting in various applications.
