motion detector PIR 2S MINI - FOR LED 24V PLUG LUMINAIRES built-in version, with junction box, with plug, 11-fold, white

Product Description Motion Detector PIR 2S MINI for LED 24V Lights

The Hera PIR 2S MINI motion detector is a small, adjustable PIR motion sensor specifically designed for installation in 13mm drill holes. With a detection range of 0.5m to 2.5m and a detection angle of 80 degrees, it is ideal for use in various rooms.

Technical Details of the Motion Detector

The motion detector operates at a voltage of 24V= and is connected on the secondary side between a LED 24V light and a LED 24V transformer. It has an adjustable time setting from 10 seconds to 3 minutes and a protection class of 3. The IP protection rating is IP20, making it suitable for indoor use.

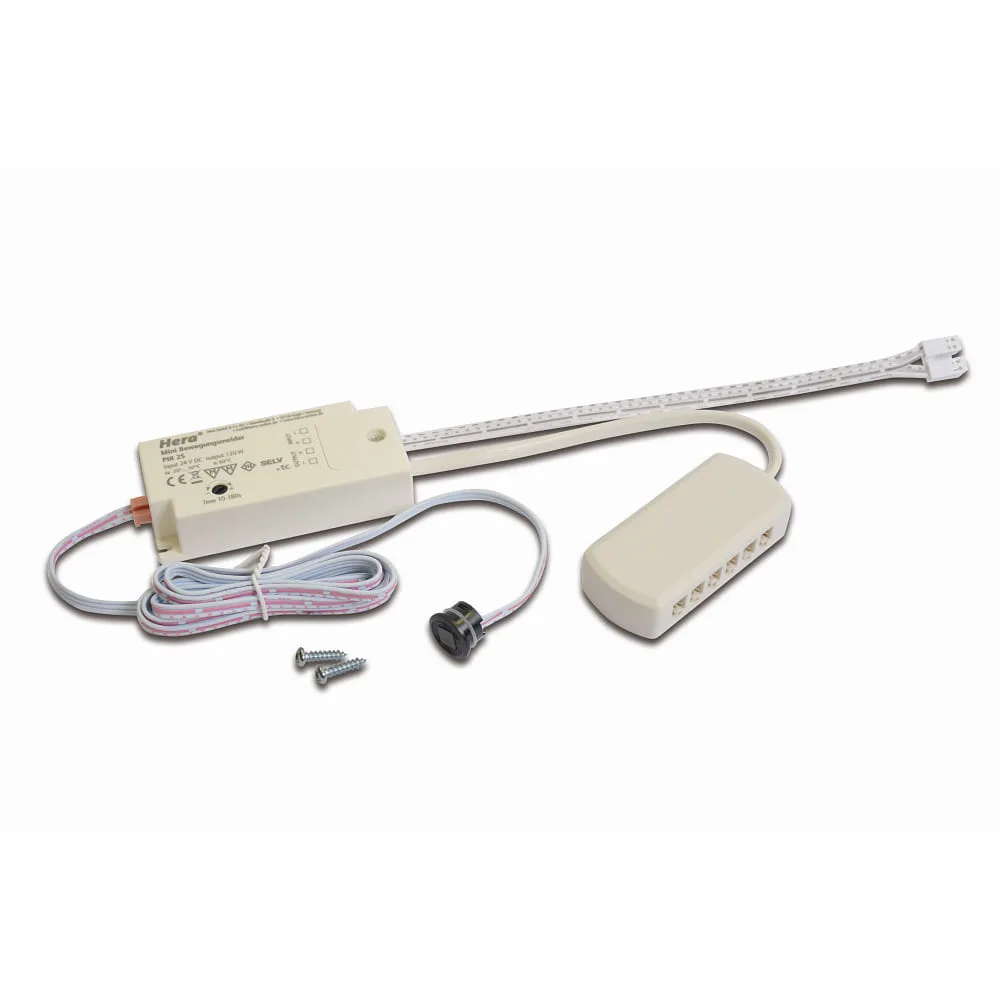

Practical Set for Easy Installation

The set includes the PIR recessed sensor, a 20cm connection cable with LED 24 plug, a 20cm switching cable with an 11-way distributor (LED 24), and a 140cm sensor cable. With this set, a quick and uncomplicated installation of the motion detector is possible.

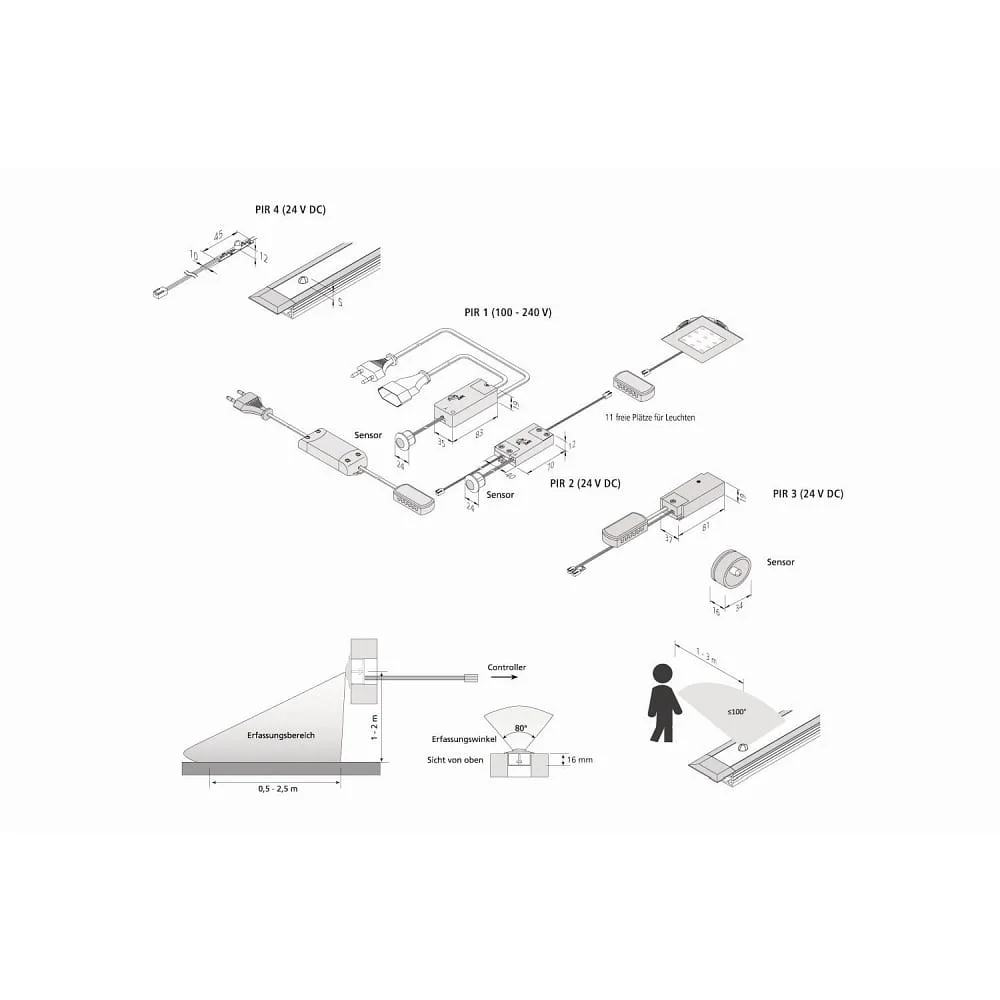

Recommended Mounting Height and Additional Information

The recommended mounting height of the motion detector is between 1m and 2m. It can be connected to switchable LED operating devices with protection class III and supports a maximum power of 60W. The size of the connection box is 7cm in length, 4cm in width, and 1.2cm in height. The sensor has a diameter of 2.4cm.

Conclusion on the Motion Detector PIR 2S MINI

The Hera PIR 2S MINI motion detector for LED 24V lights is a practical and reliable solution for automatic lighting control in various rooms. With its compact dimensions and versatile settings, it is a good choice for use in apartments, offices, or other indoor spaces.
