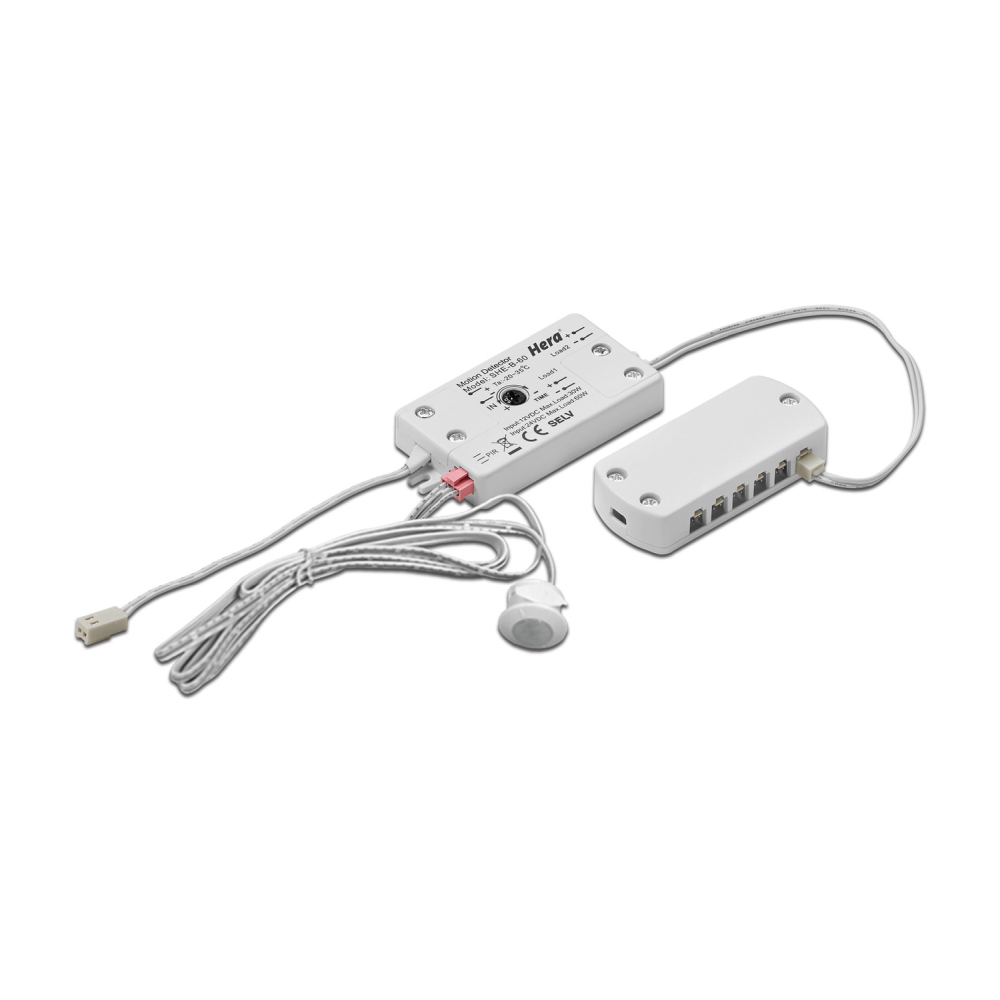

Mini motion detector PIR 2 incl. 20cm cablel with LED24-plug, 20cm + 11-fold distributor, white

Mini motion detector PIR 2 with 20cm LED 24 plug cable, 20cm + 11-way distributor, white

The Mini motion detector PIR 2 is a practical device that is ideal for use in furniture or on the wall. With its white matte design, it seamlessly blends into any environment.

Technical details

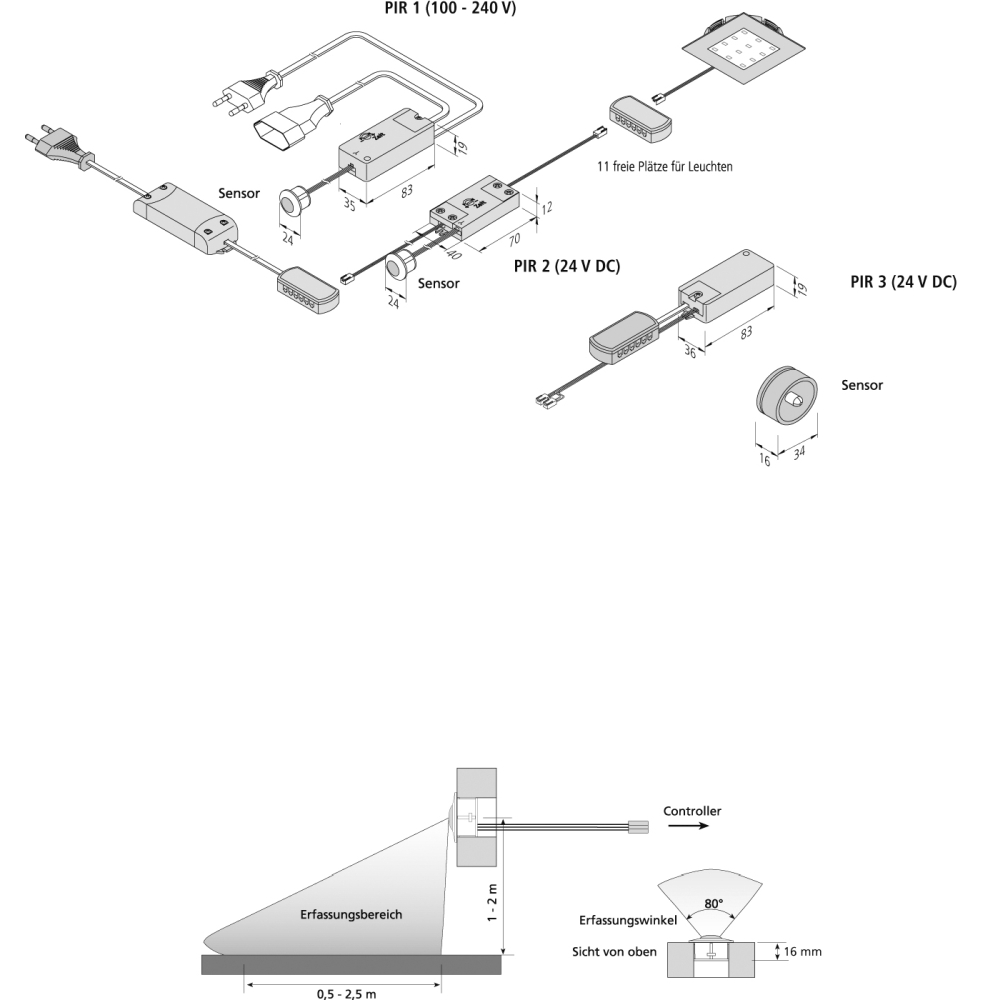

The motion detector has an operating voltage of 24V= and a low installation depth of only 1.4cm. The installation opening is 2cm in diameter and the detection angle of the sensor is 80°.

Easy installation

The motion detector is connected on the secondary side between a LED 24 V luminaire and a LED 24 V transformer, supporting a maximum power of 48 W. The installation is done in a 20mm bore and the delay time can be adjusted between 10 seconds and 3 minutes.

Practical functions

The motion detector only turns on when there is movement and the brightness is below approximately 80 Lux. With a detection range of 2.5m at a mounting height of 1-2m, it is ideal for indoor use. The maximum range is 4m in the presence area and 2.5m frontal or to one side.

Versatile application

The Mini motion detector PIR 2 from Hera is perfect for use in various rooms. With its passive infrared sensor and time setting of 10 seconds to 3 minutes, it offers an effective way to save energy and increase security.
